Engine Control Module: Specifications

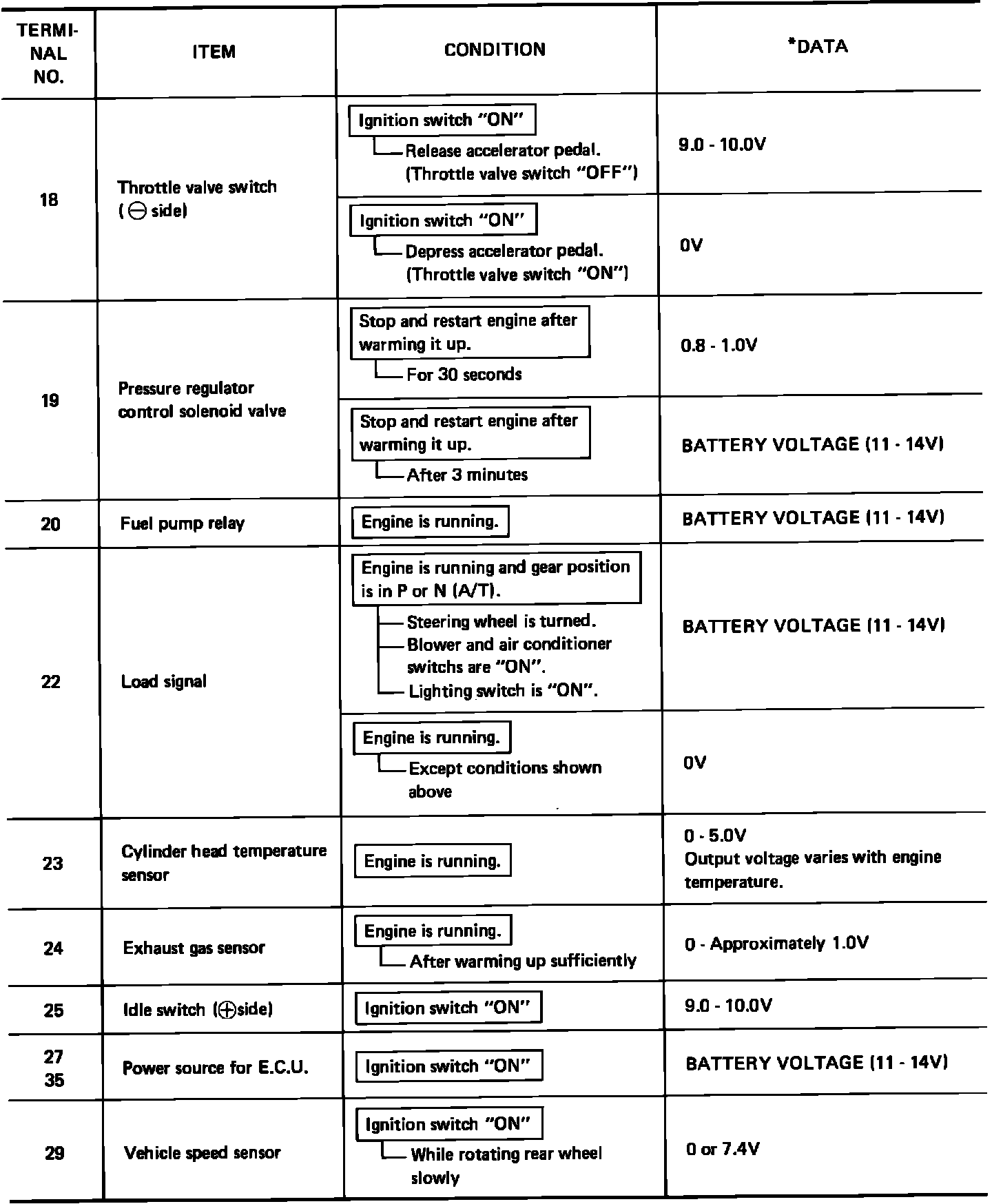

Fig. 301a Input/Output signal inspection chart.:

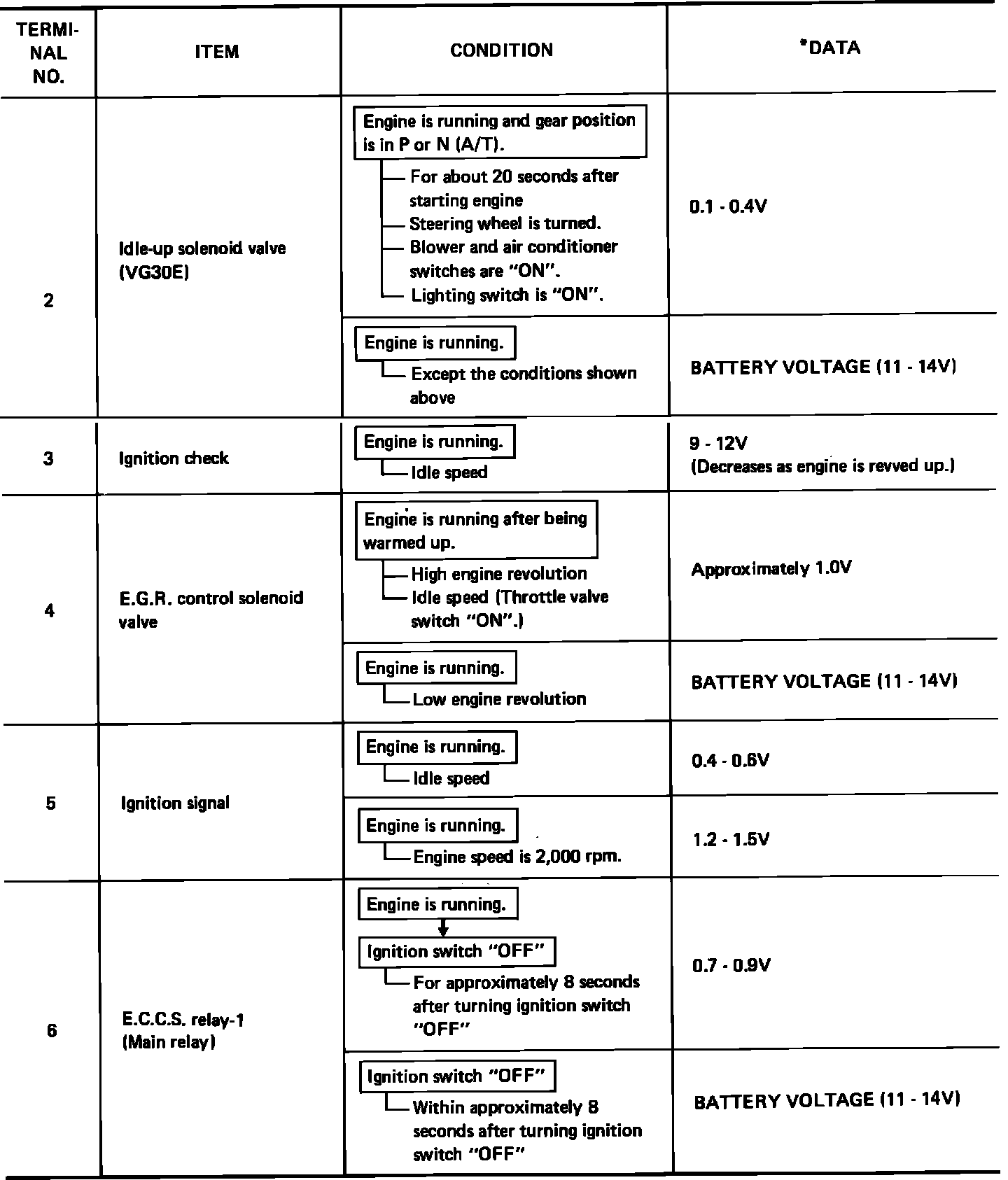

Fig. 301b Input/Output signal inspection chart.:

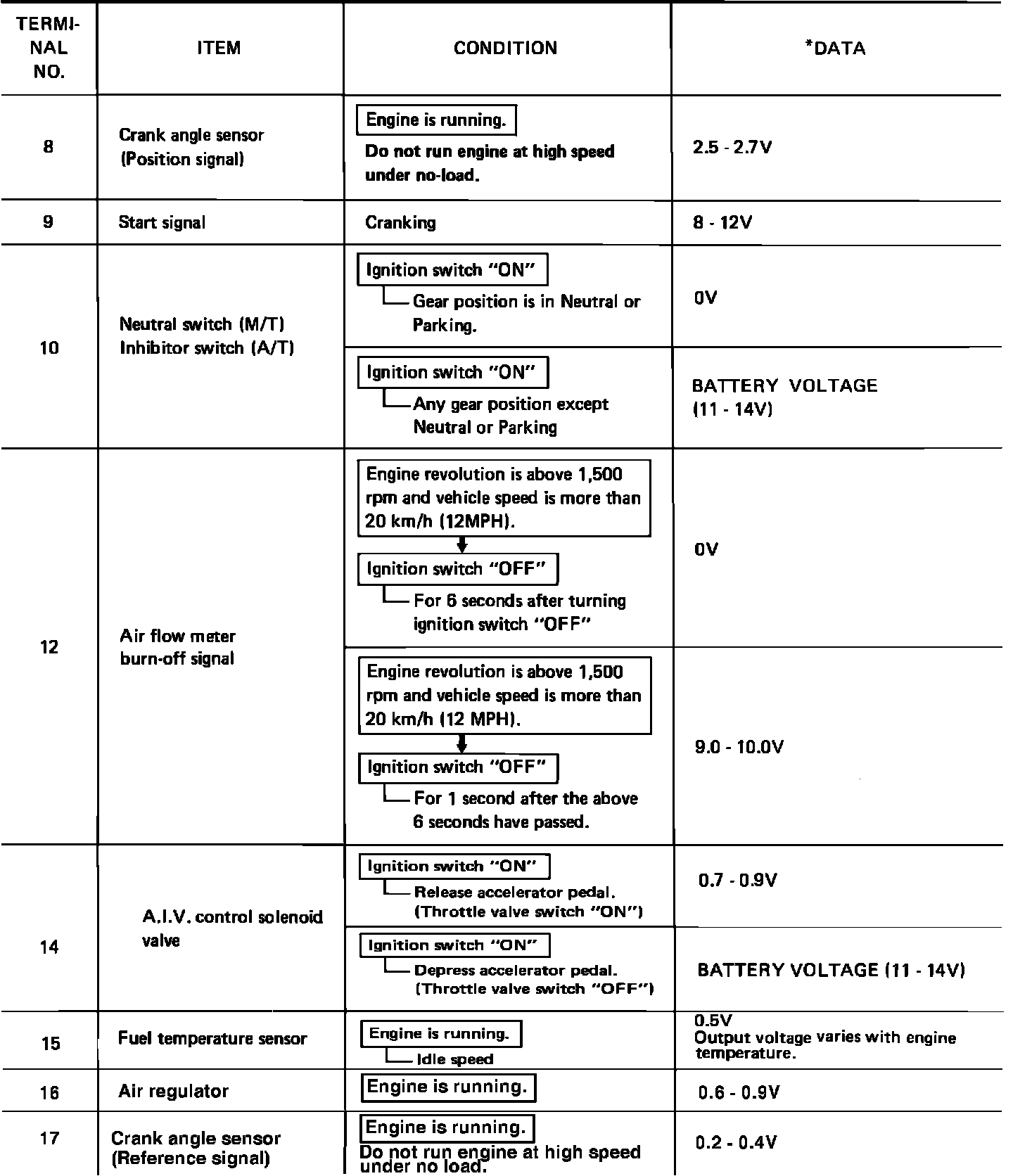

Fig. 301c Input/Output signal inspection chart.:

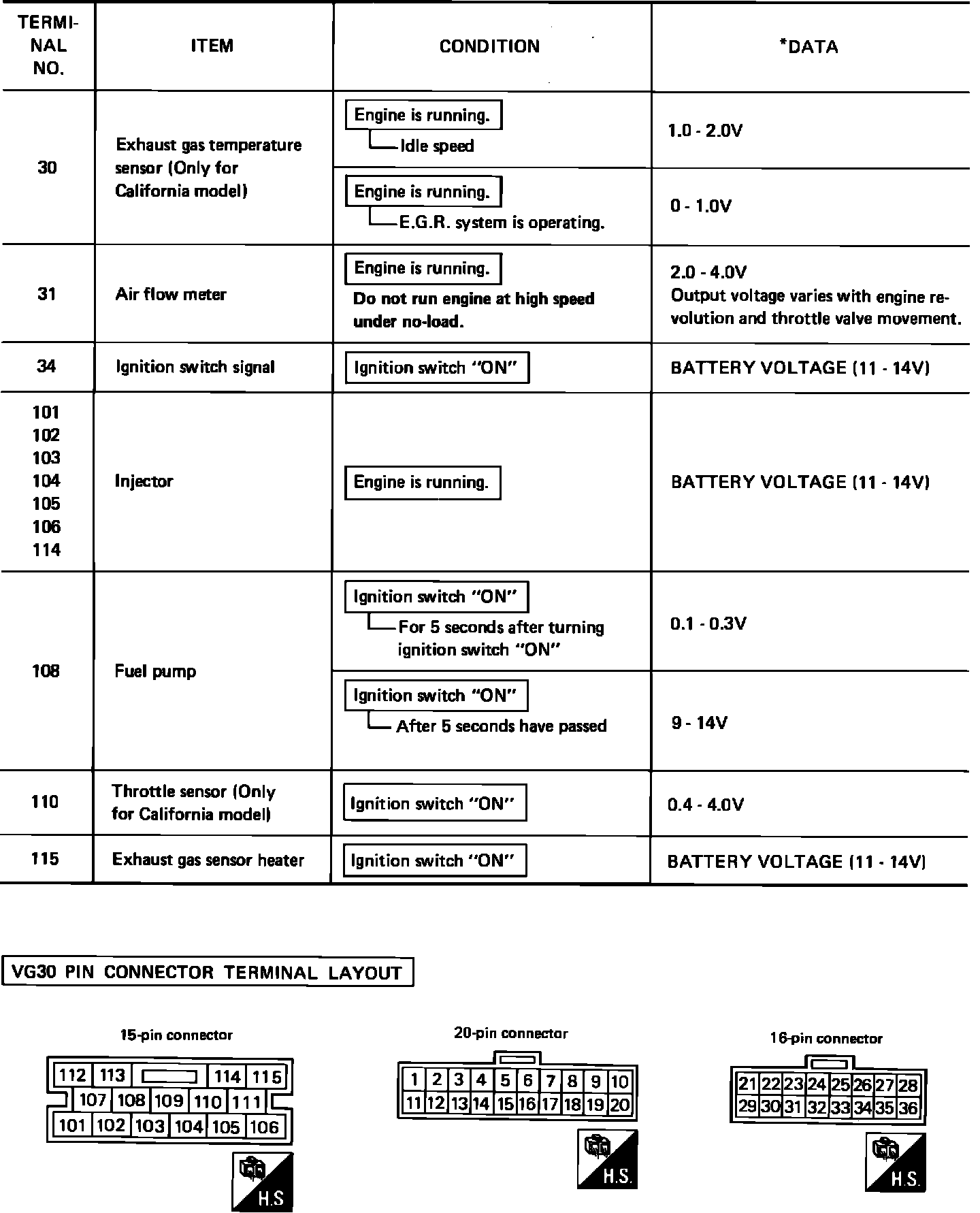

Fig. 301d Input/Output signal inspection chart.:
