Computers and Control Systems: Specifications

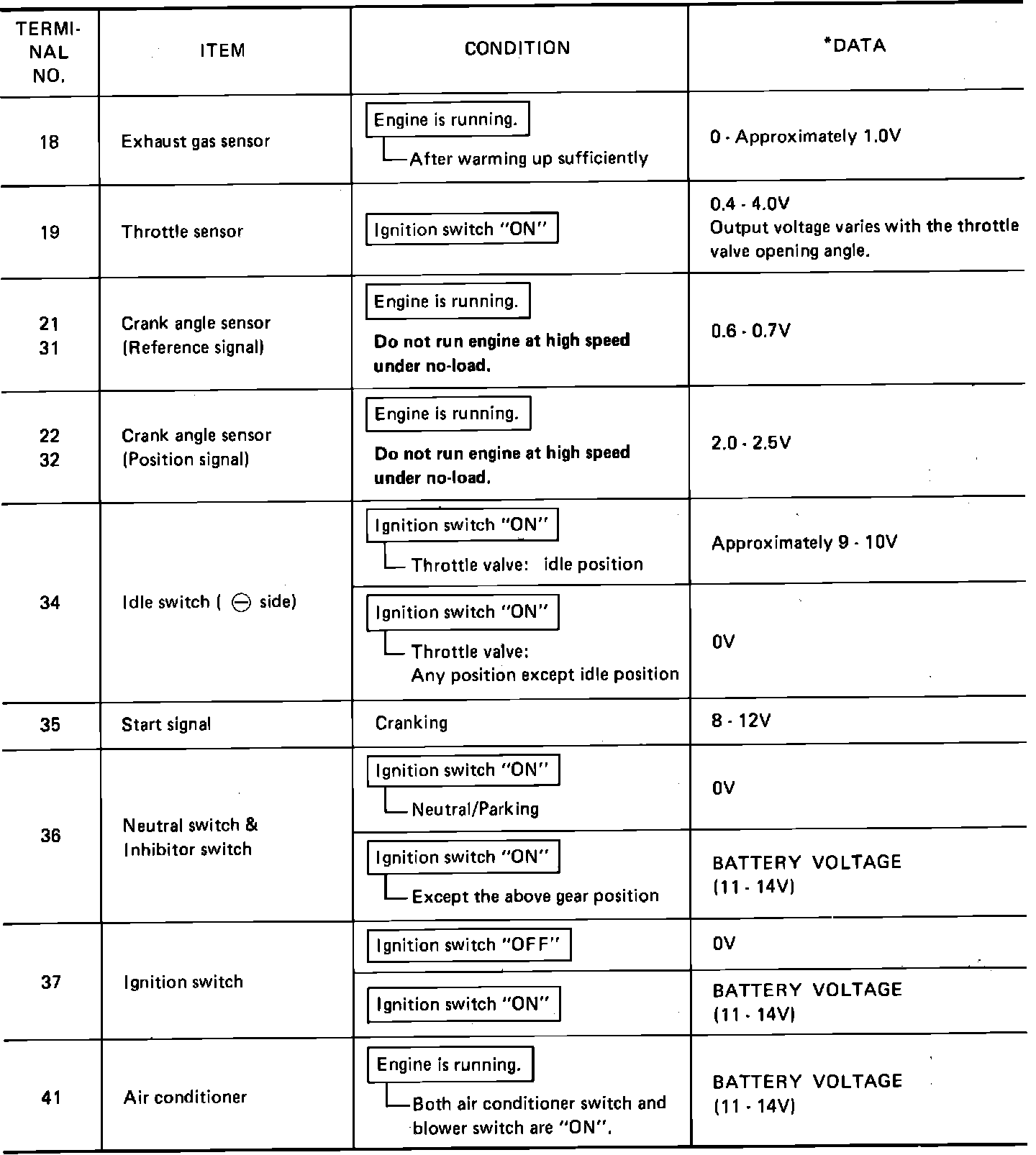

Fig. 304a Input/Output signal inspection chart.:

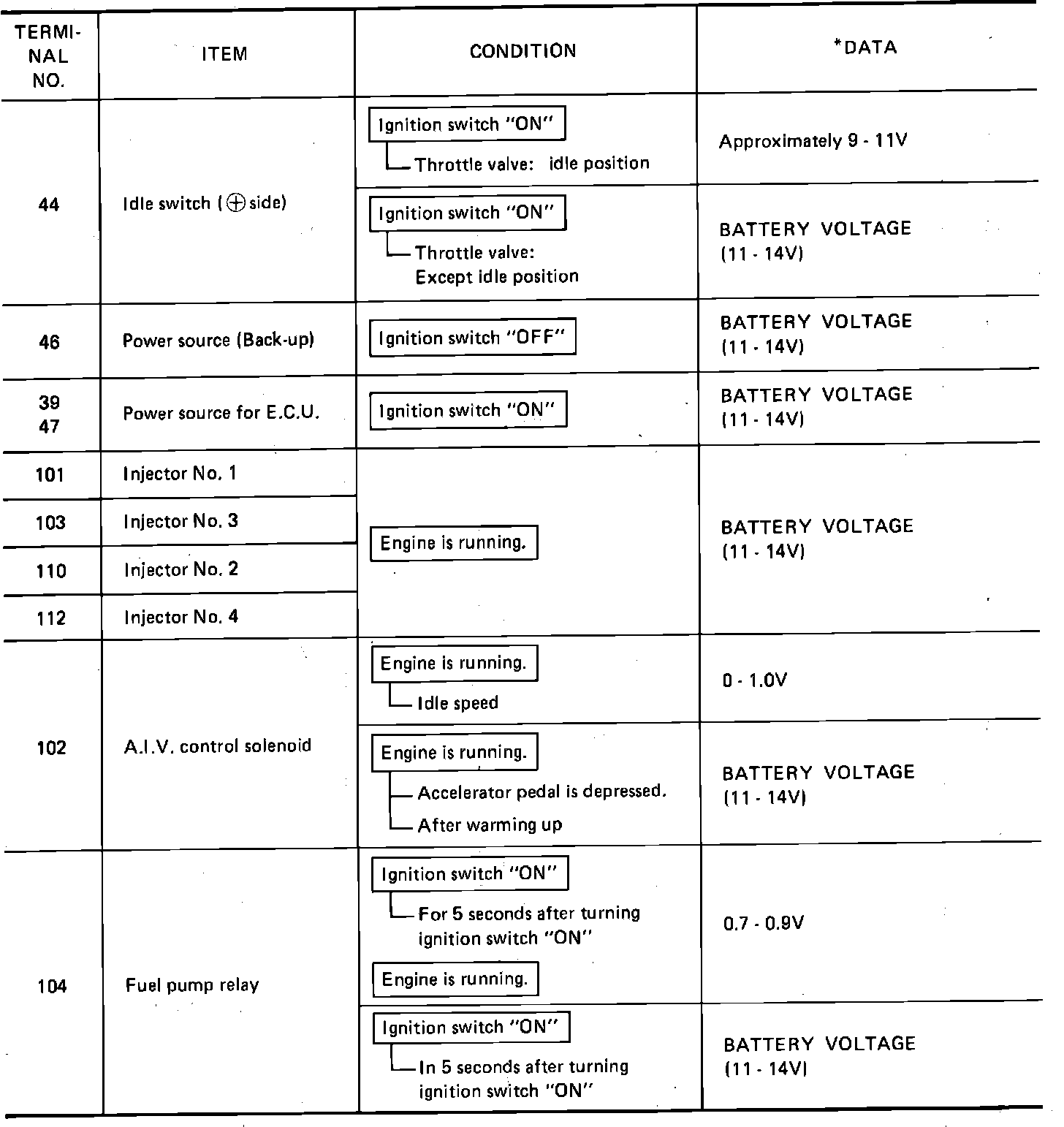

Fig. 304b Input/Output signal inspection chart.:

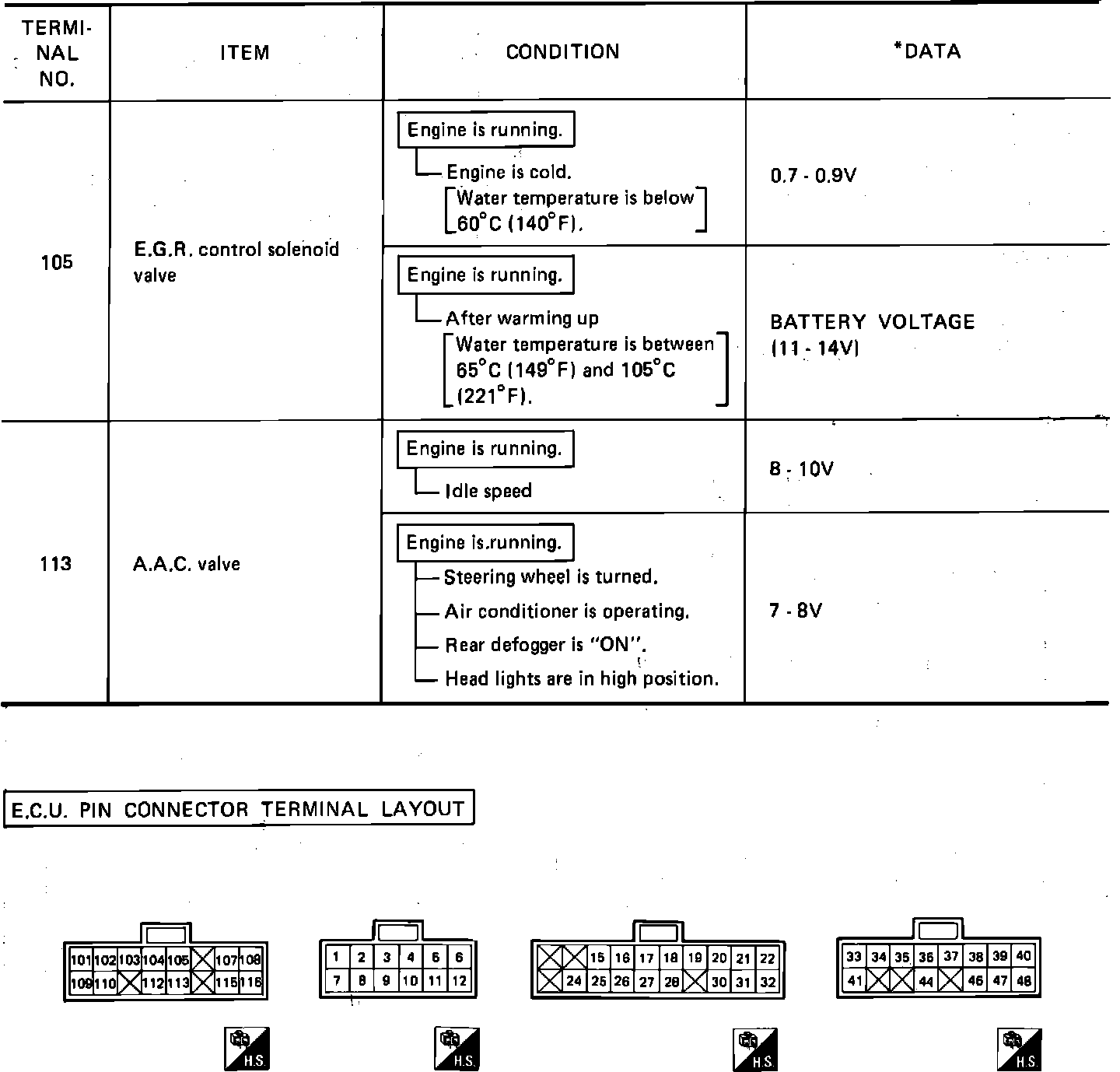

Fig. 304c Input/Output signal inspection chart.:

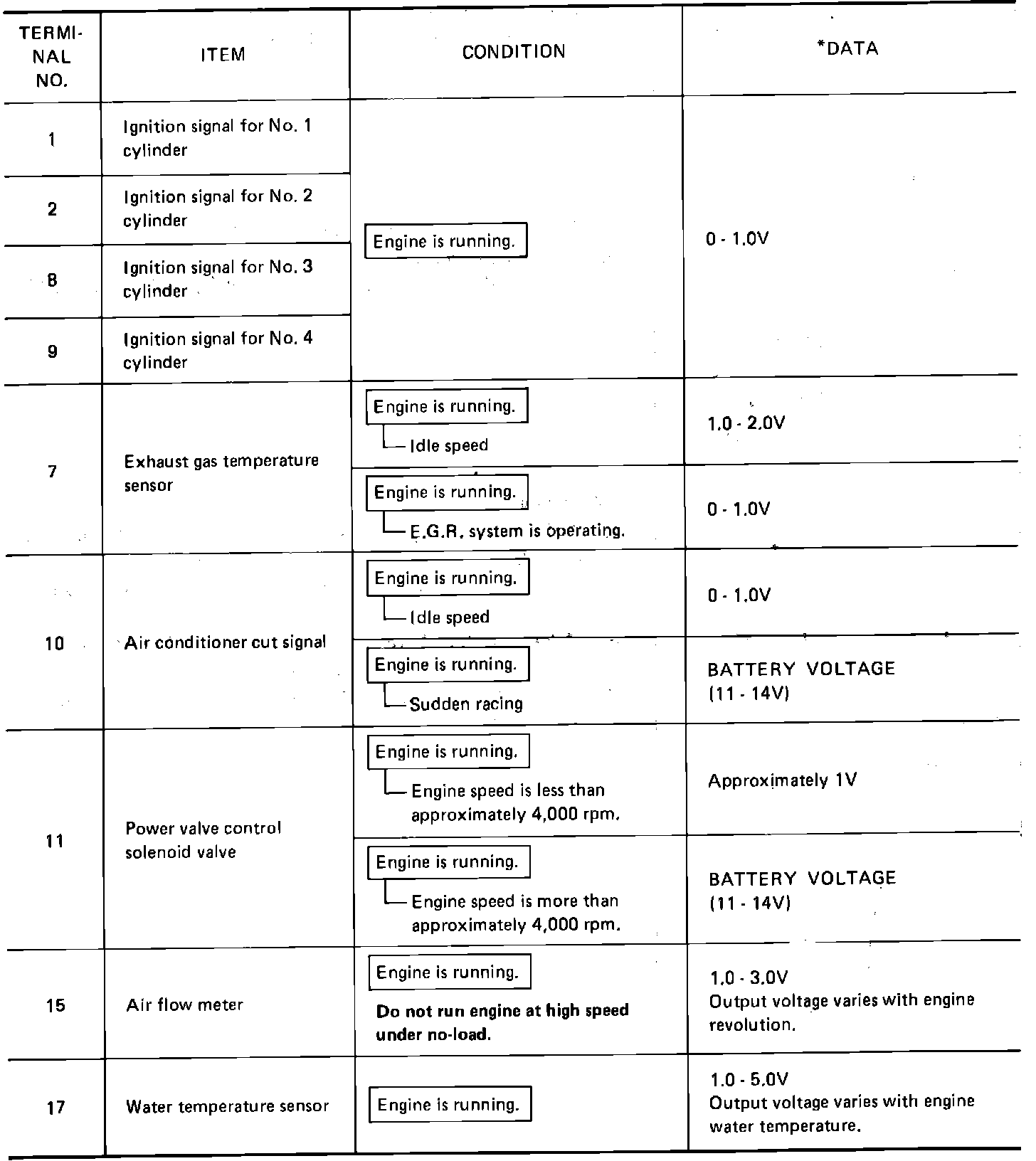

Fig. 304d Input/Output signal inspection chart.:
