A/T Only

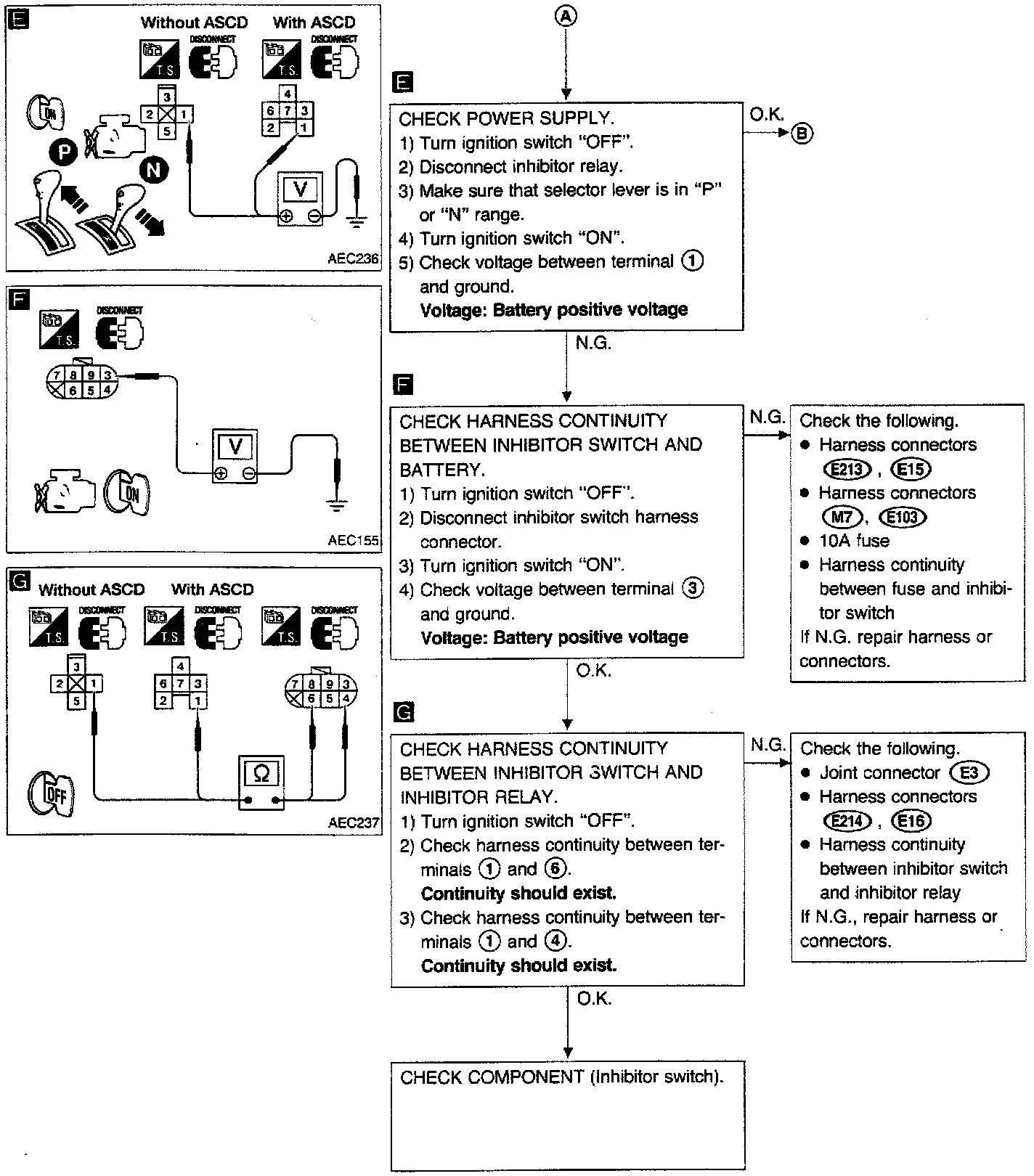

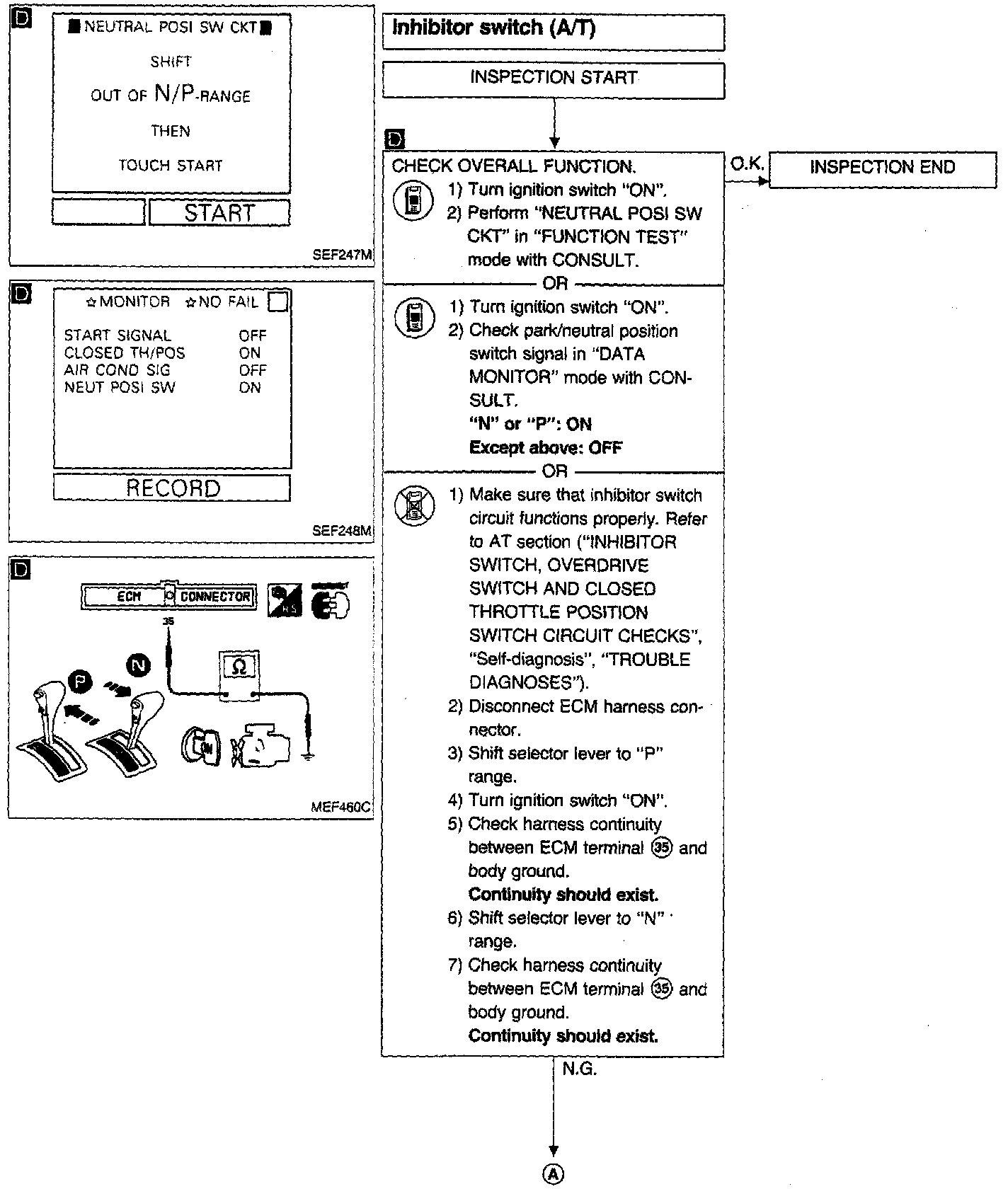

Inhibitor Switch Diagnostic Chart:

Inhibitor Switch Diagnostic Chart:

CIRCUIT TEST IMAGE

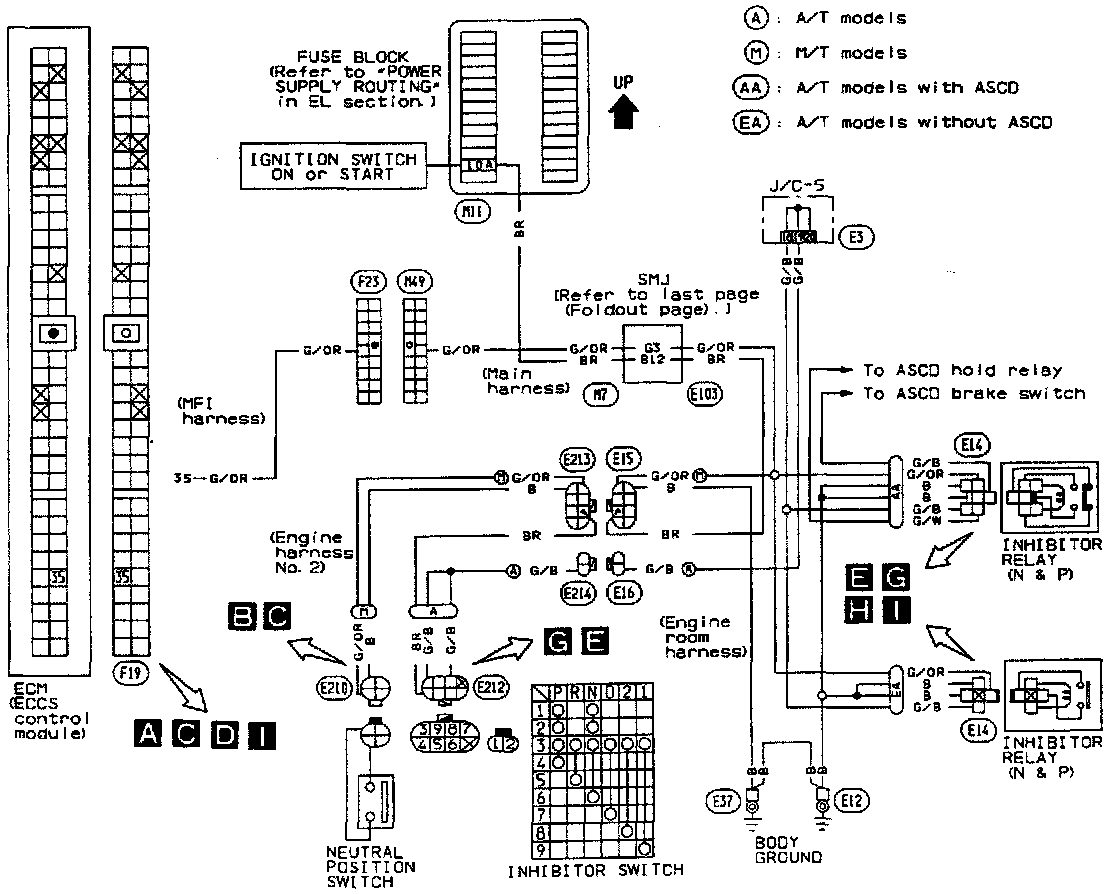

Neutral Position Switch / Inhibitor Switch Circuit:

CIRCUIT DIAGRAM IMAGE

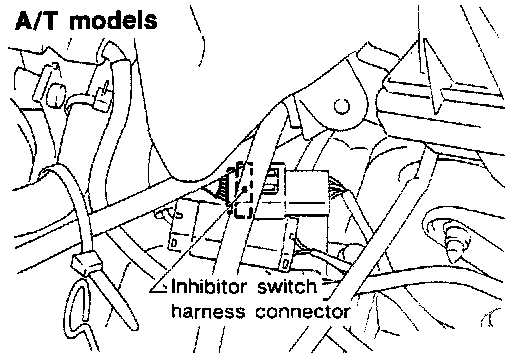

Inhibitor Switch Connector Location:

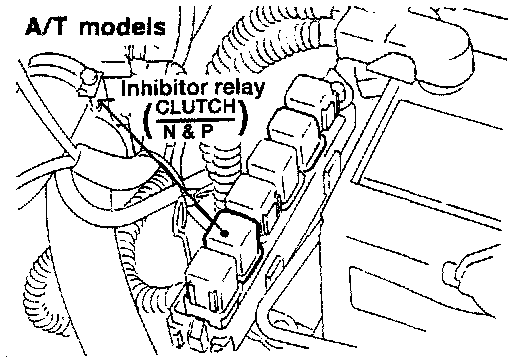

Neutral Start Relay Location:

COMPONENT AND CONNECTOR LOCATION IMAGE
