Automatic Transmission
>>
Federal
Federal
ECCS System Diagram (A/T Models Except For Calif.):
GENERAL SYSTEM SCHEMATIC

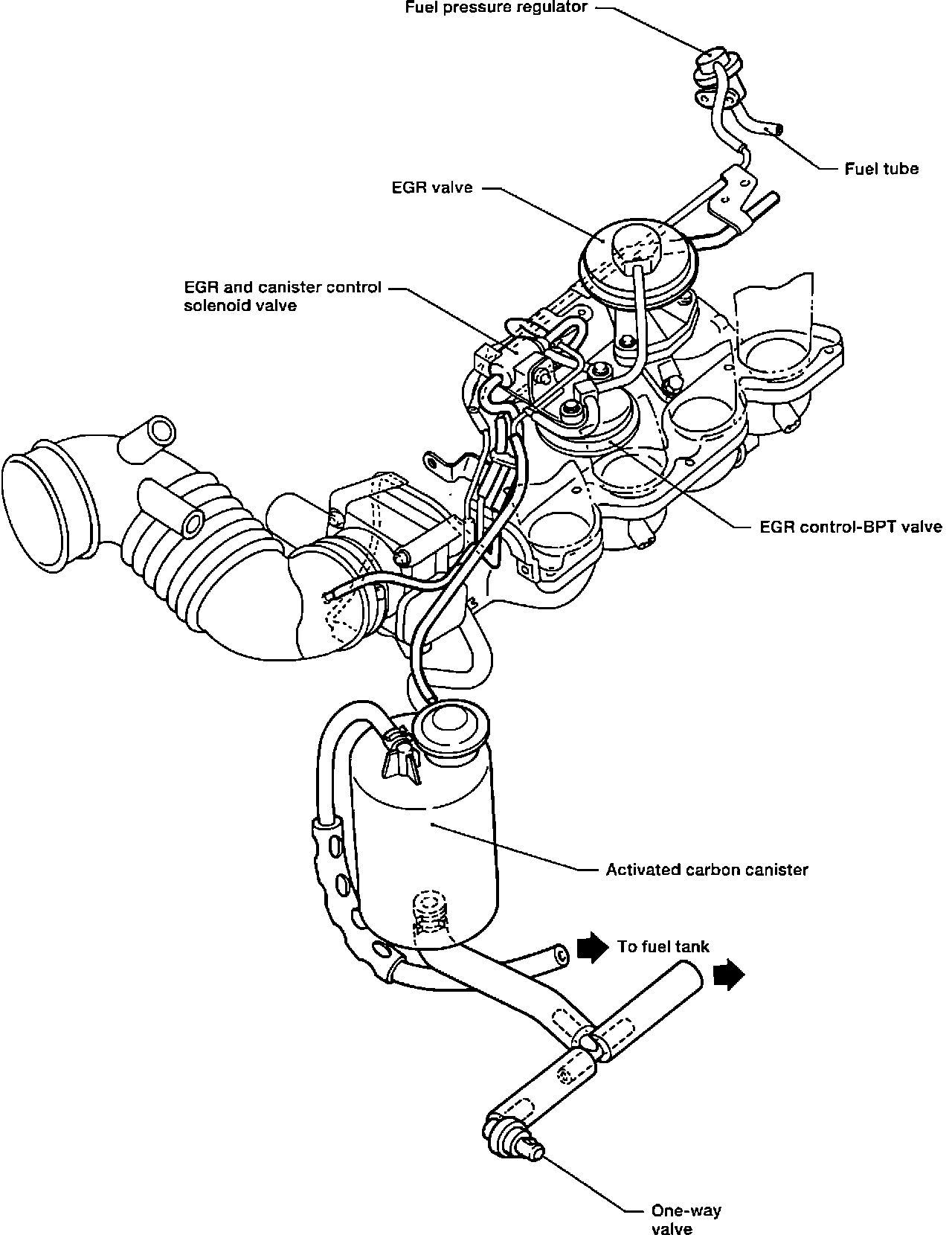

Vacuum Hose Routing And Connections:
VACUUM FITTINGS AND CONNECTIONS
