Component Locations

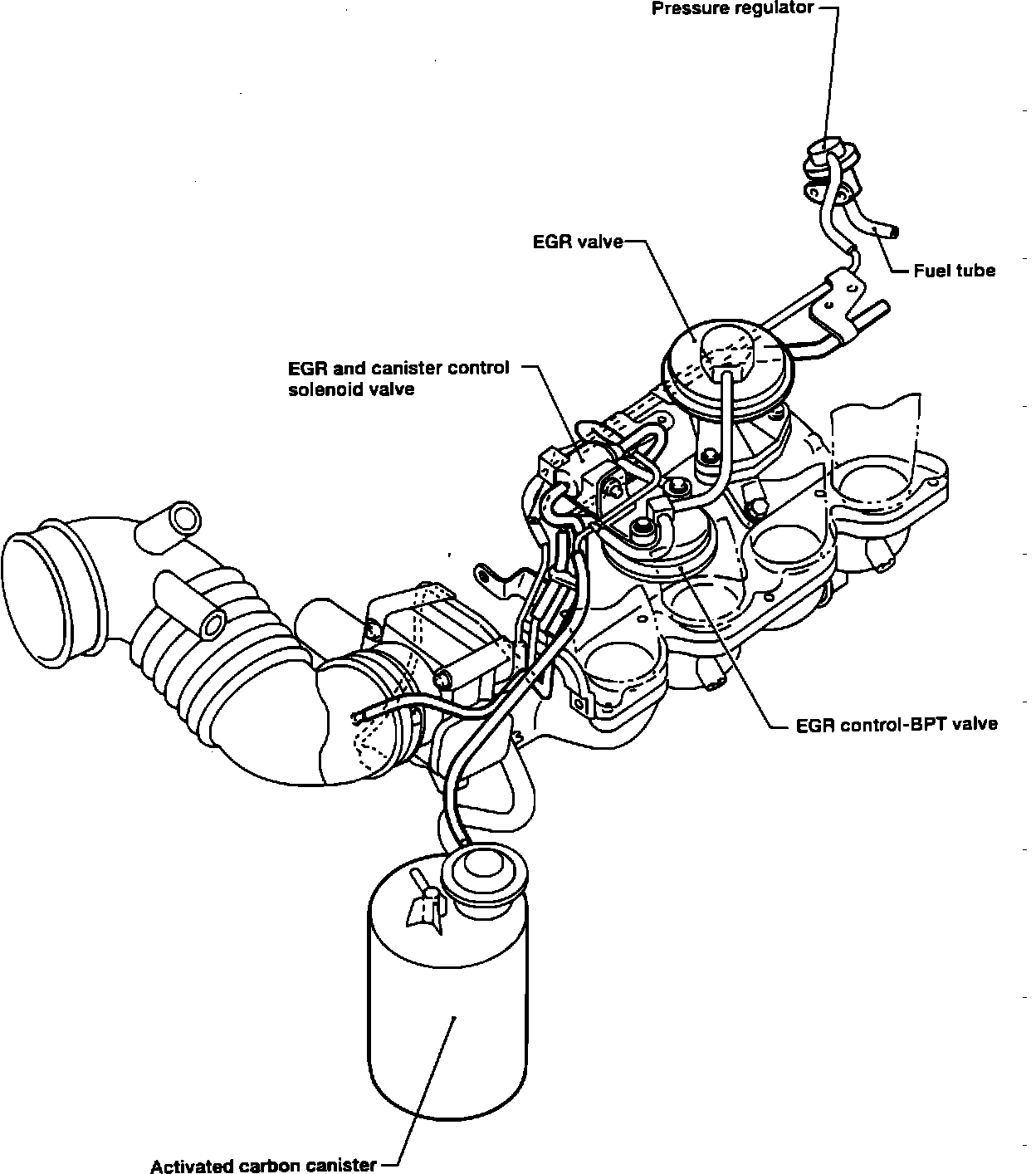

EGR System:





EGR/CANISTER PURGE CONTROL SOLENOID
Located on the intake manifold.
