Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1995
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Throttle Position Switch
>>
Wide Open Throttle Position Switch
Wide Open Throttle Position Switch
Wide Open Throttle Position Switch
-

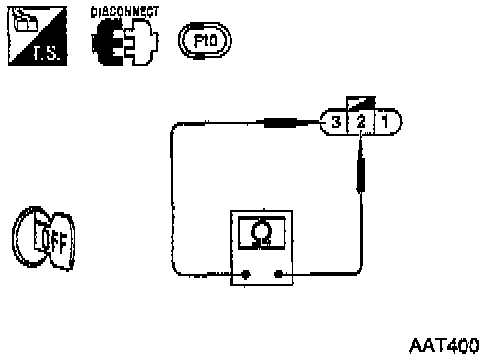

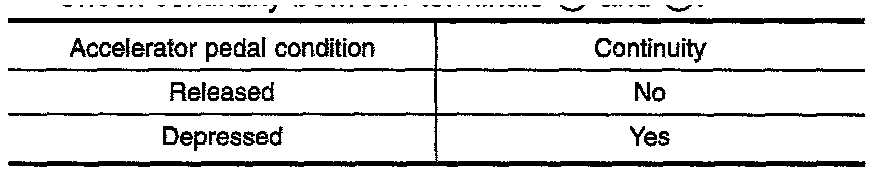

Check continuity between terminals (2) and (3).
