Air Bag Control Module: Service and Repair

Removal and Installation - Diagnosis Sensor Unit

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect battery ground cable and wait at least 10 minutes.
The special bolts are coated with bonding agent. Do not use old bolts after removal; replace with new coated bolts.

Check diagnosis sensor unit for proper installation.

Check diagnosis sensor unit to ensure no deformities, dents, cracks or rust. If there are any visible signs of damage, replace with new one.

Check diagnosis sensor unit brackets to ensure they are free of deformities or rust.

1. Disconnect driver and passenger air bag module connectors.

2. Remove console box.

3. Disconnect diagnosis sensor unit connector.

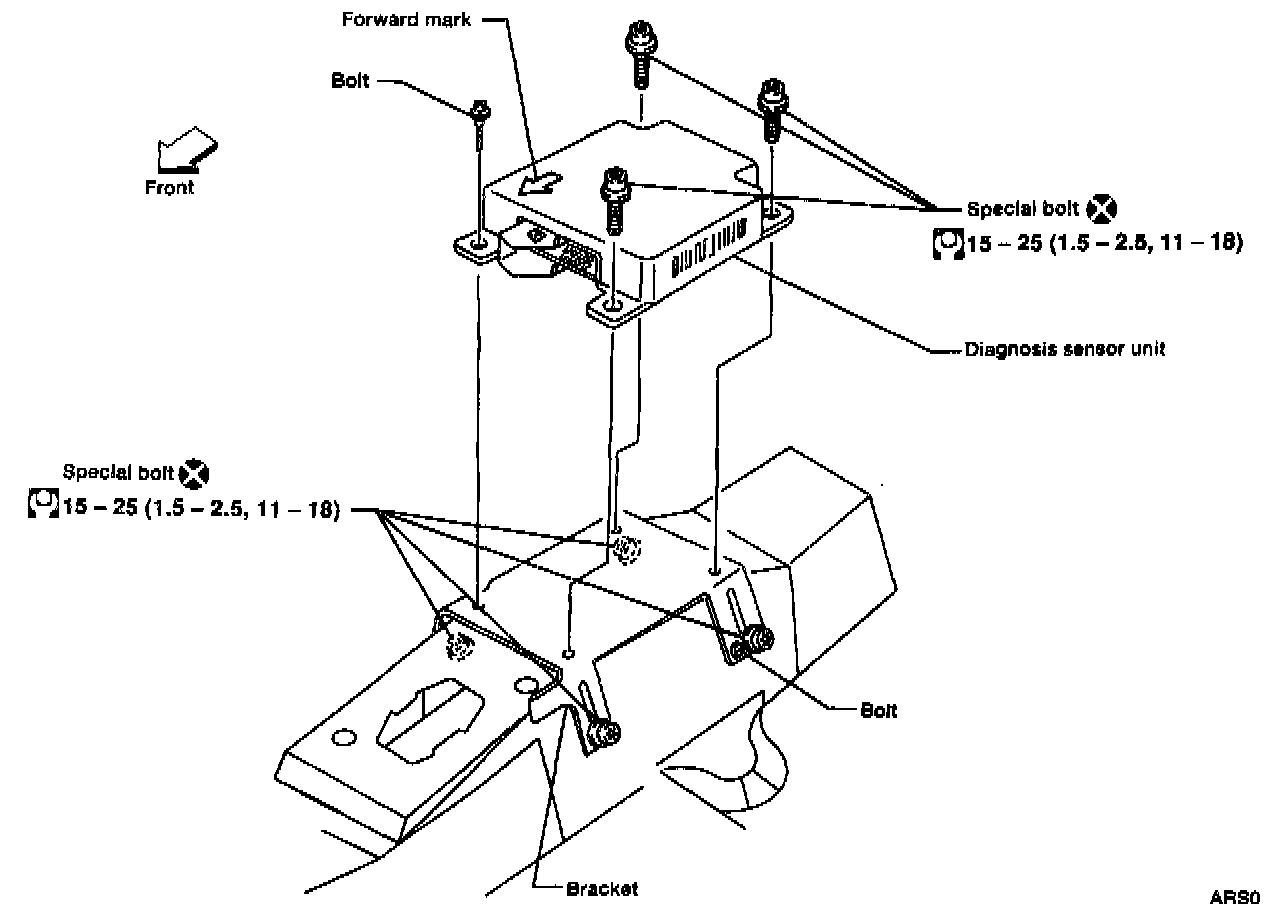

4. Remove bolts from diagnosis sensor unit. Use TAMPER RESISTANT TORX (Size T50) to remove special bolts.

5. Remove the diagnosis sensor unit.

NOTE:

To install, reverse the removal procedure sequence.
