Rear Wheel

Measure toe-in using the following procedure. If out of specification, inspect and replace any damaged or worn rear suspension parts.

WARNING:
^ ALWAYS PERFORM THE FOLLOWING PROCEDURE ON A FLAT SURFACE.
^ MAKE SURE THAT NO PERSON IS IN FRONT OF THE VEHICLE BEFORE PUSHING IT.

1. Bounce rear of vehicle up and down to stabilize the posture.
2. Push the vehicle straight ahead about 5 m (16 ft.).
3. Put a mark on base line of the tread (rear side) of both tires at the same height of hub center. This mark is a measuring point.





4. Measure distance "A" (rear side).
5. Push the vehicle slowly ahead to rotate the wheels 180° (1/2 turn).

NOTE: If the wheels have rotated more than 180° (1/2 turn), try the above procedure again from the beginning. Never push vehicle backward.

6. Measure distance "B" (front side).





7. Loosen adjusting bolt fixing nuts.

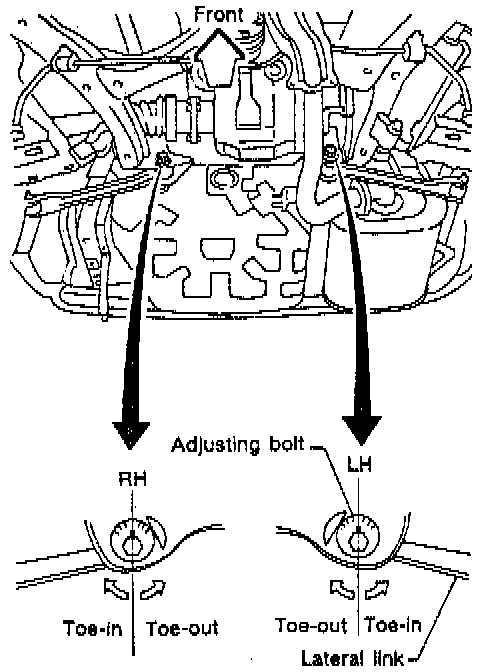

8. Adjust toe-in by turning adjusting bolts.

NOTE: Toe changes about 1.3 mm (0.051 inch) [One side] with each graduation of the adjusting bolt.

9. Tighten to 69 - 88 Nm 51 - 65 ft. lbs.)
