BARO / MAP Sensor Switching Valve: Testing and Inspection

COMPONENT INSPECTION
MAP/BARO Switch Solenoid Valve

With Consult
1. Start engine and warm it up to normal operating temperature.

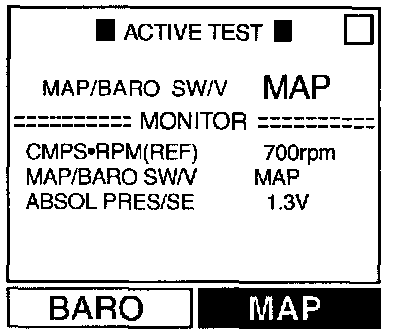

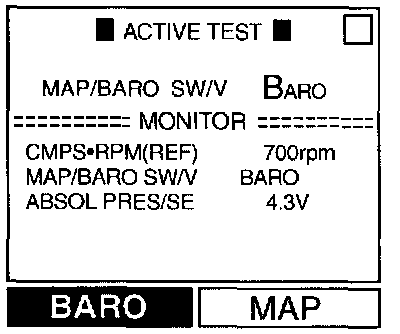

2. Perform "MAP/BARO SW/V" in "ACTIVE TEST" mode with CONSULT.
3. Check the following.





- Condition: At idle under no-load

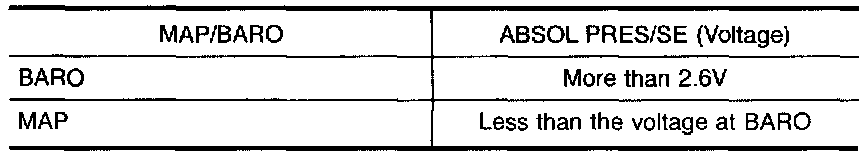

- CONSULT display

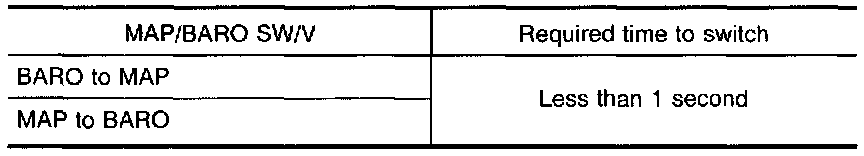

- Time for voltage to change.

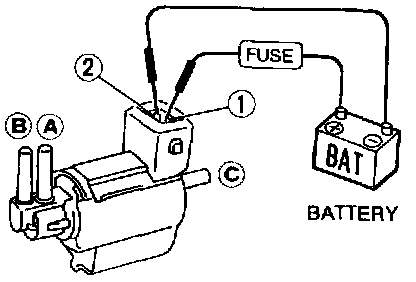

4. If NG, check solenoid valve as shown.








Without Consult
1. Remove MAP/BARO switch solenoid valve.

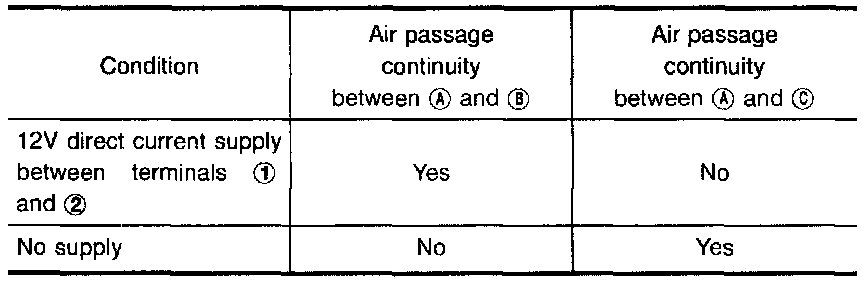

2. Check air passage continuity.
3. If NG, replace solenoid valve.
