Refrigerant Pressure Sensor / Switch: Service and Repair

Refrigerant Pressure Sensor

REMOVAL
1. Remove the liquid tank. Refer to "Liquid Tank".

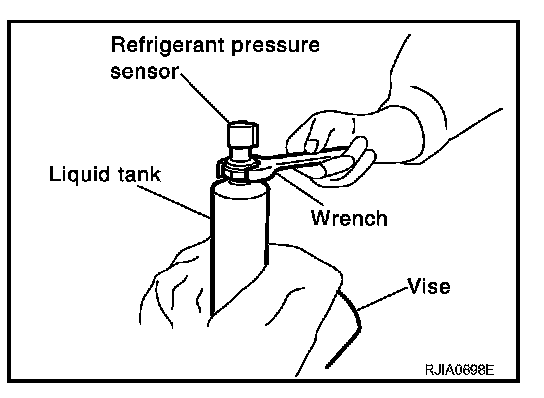

2. Using a vise secure liquid tank and remove refrigerant pressure sensor.

CAUTION:
- When working, be careful not to damage the condenser fins.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Apply compressor oil to the O-ring of the refrigerant pressure sensor when installing it. Refrigerant pressure sensor

Tightening torque : 9.9 - 11.7 N.m (1.0 - 1.2 kg-m, 87 - 104 in-lb)
