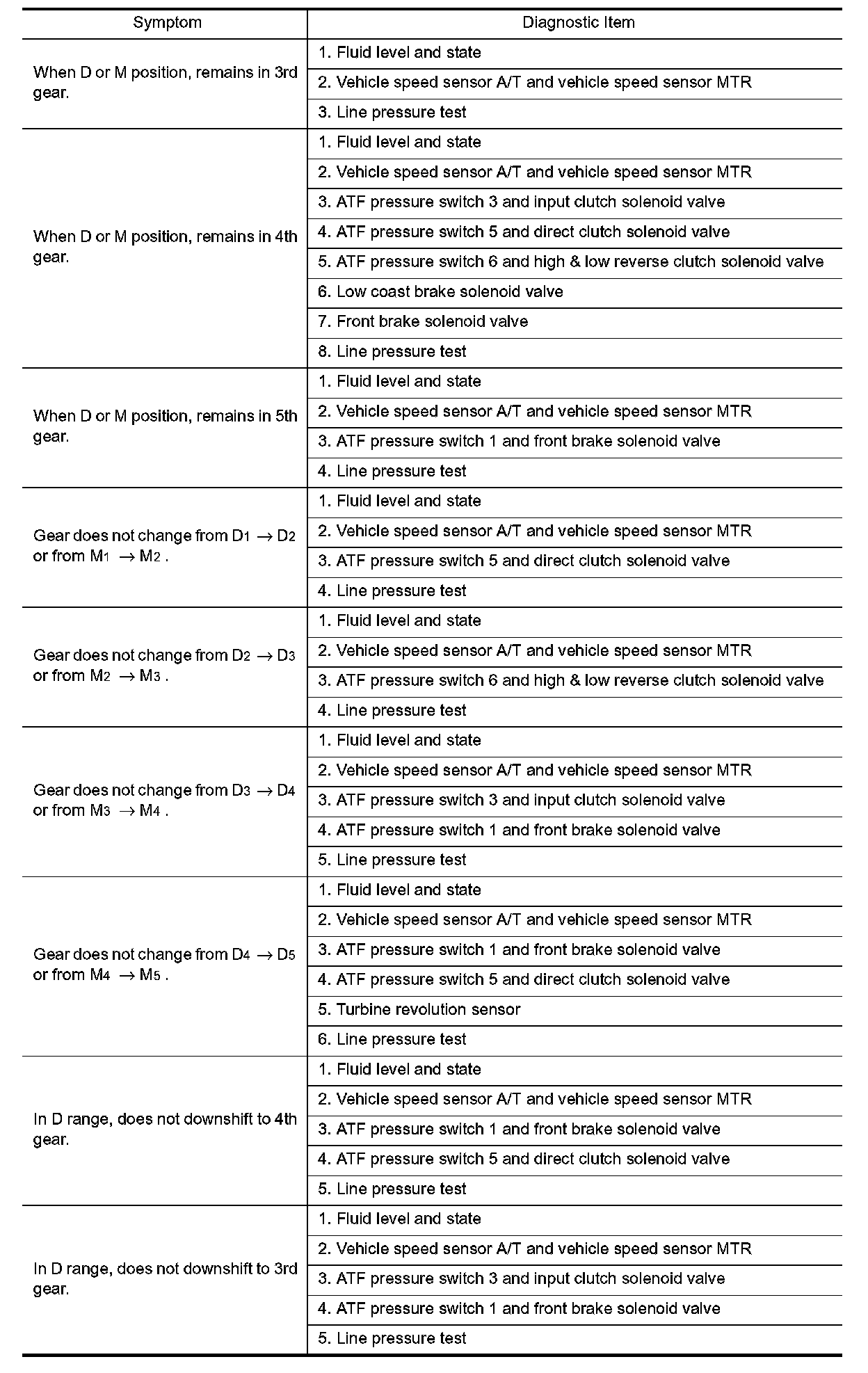

Symptom Chart

Symptom Chart
The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

CAUTION:
^ If any malfunction occurs in the RE5R05A transmission, replace the transmission assembly
^ Condition for "in vehicle" only

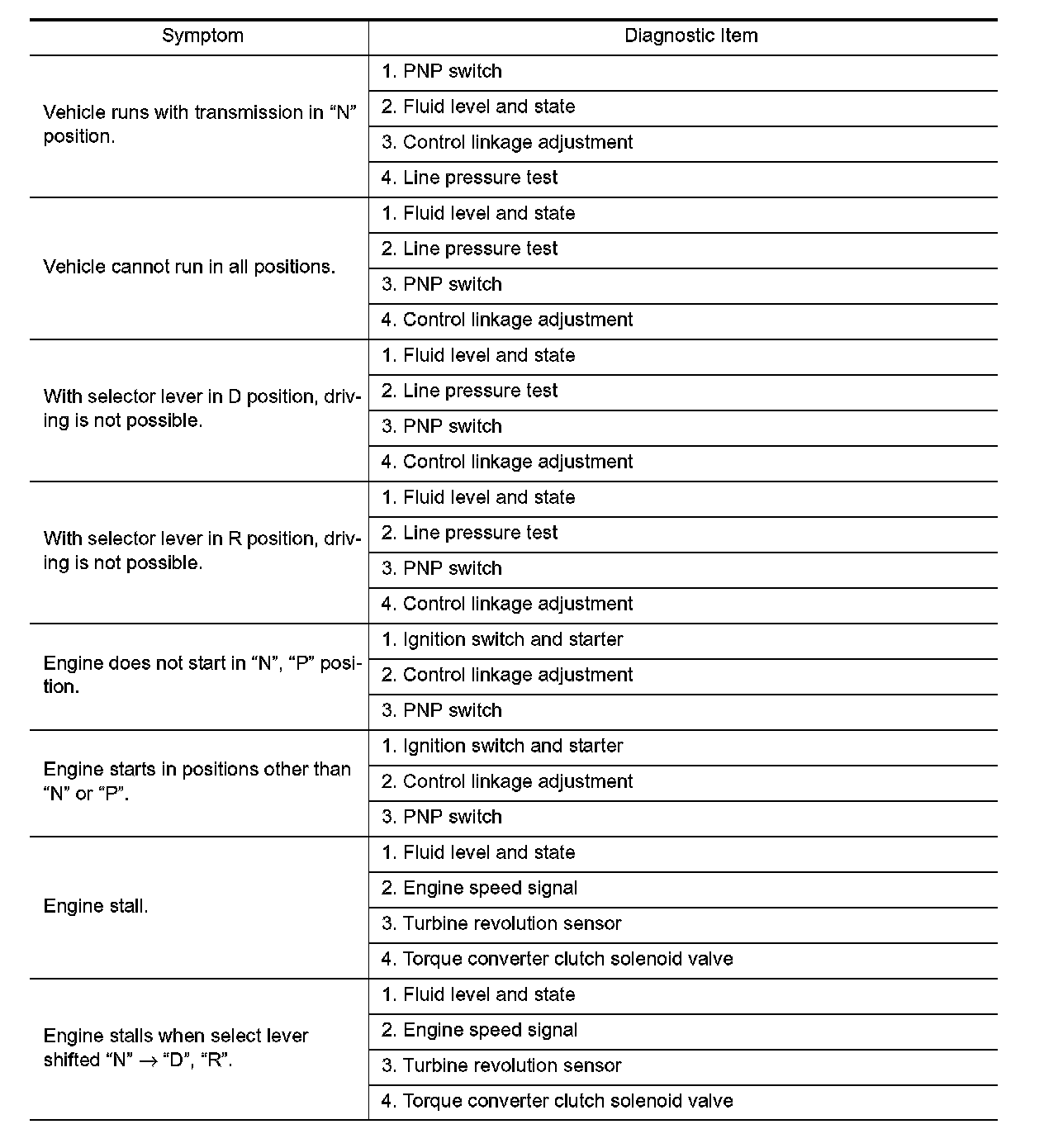

Test 1 Of 9:

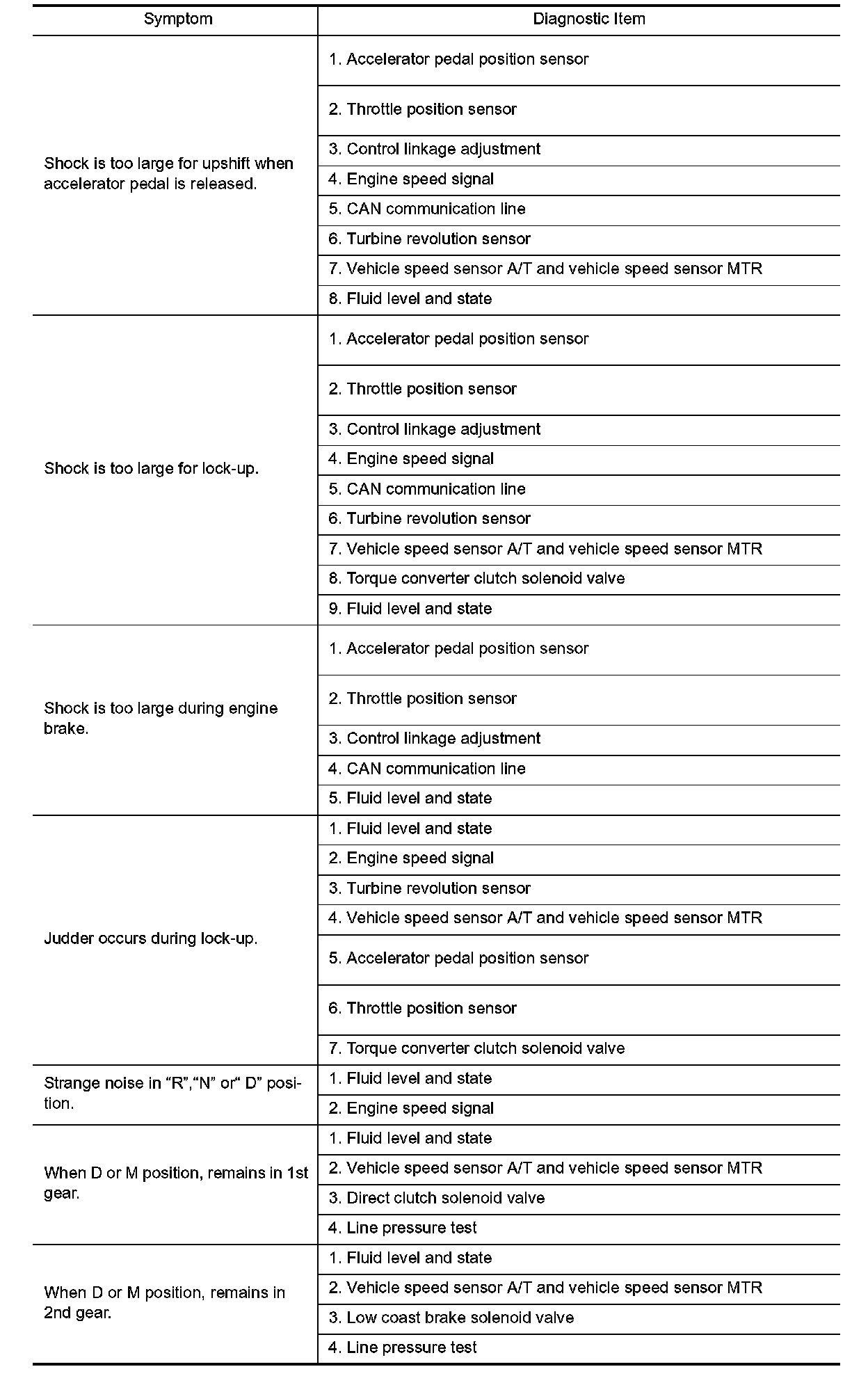

Test 2 Of 9:

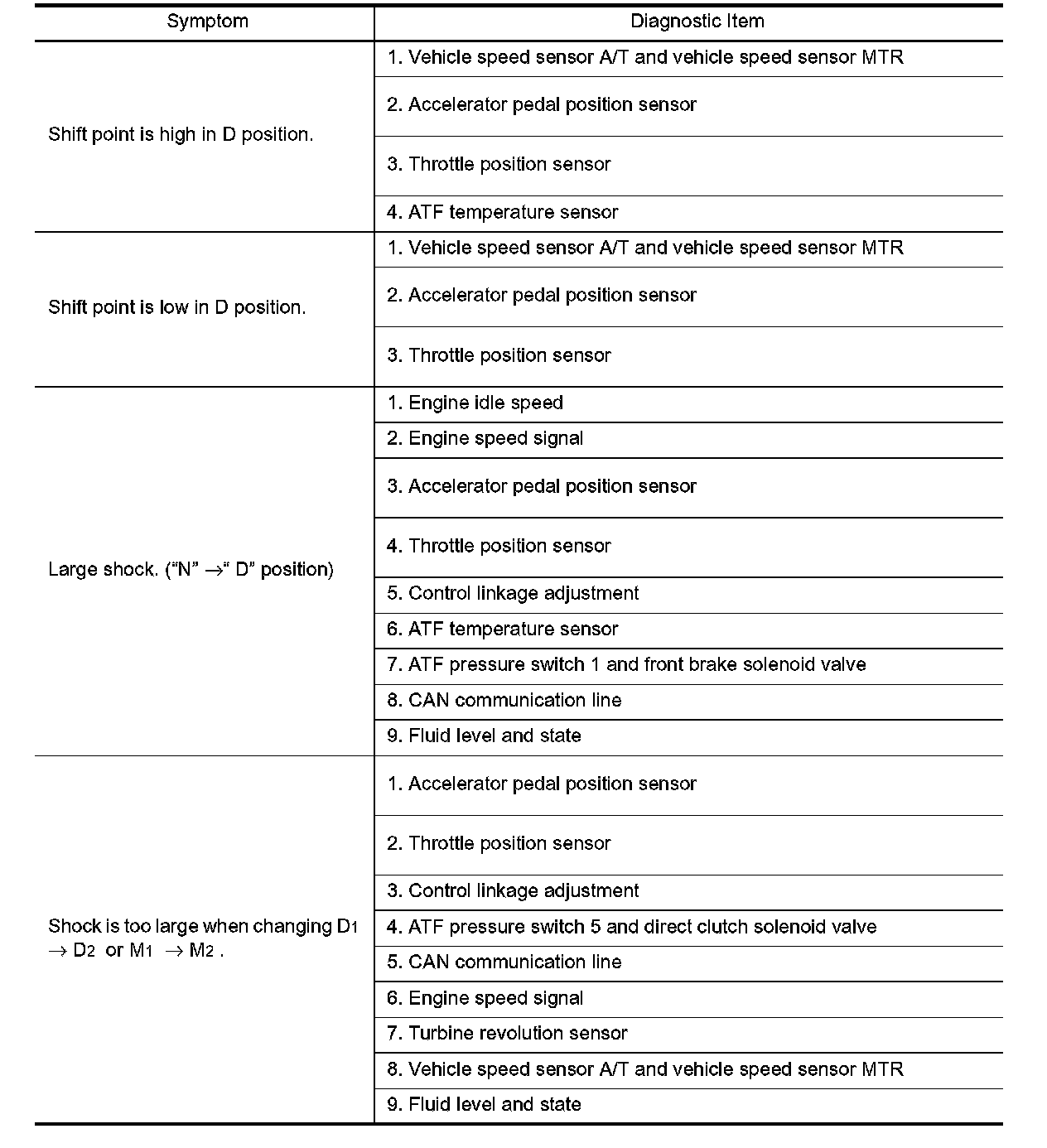

Test 3 Of 9:

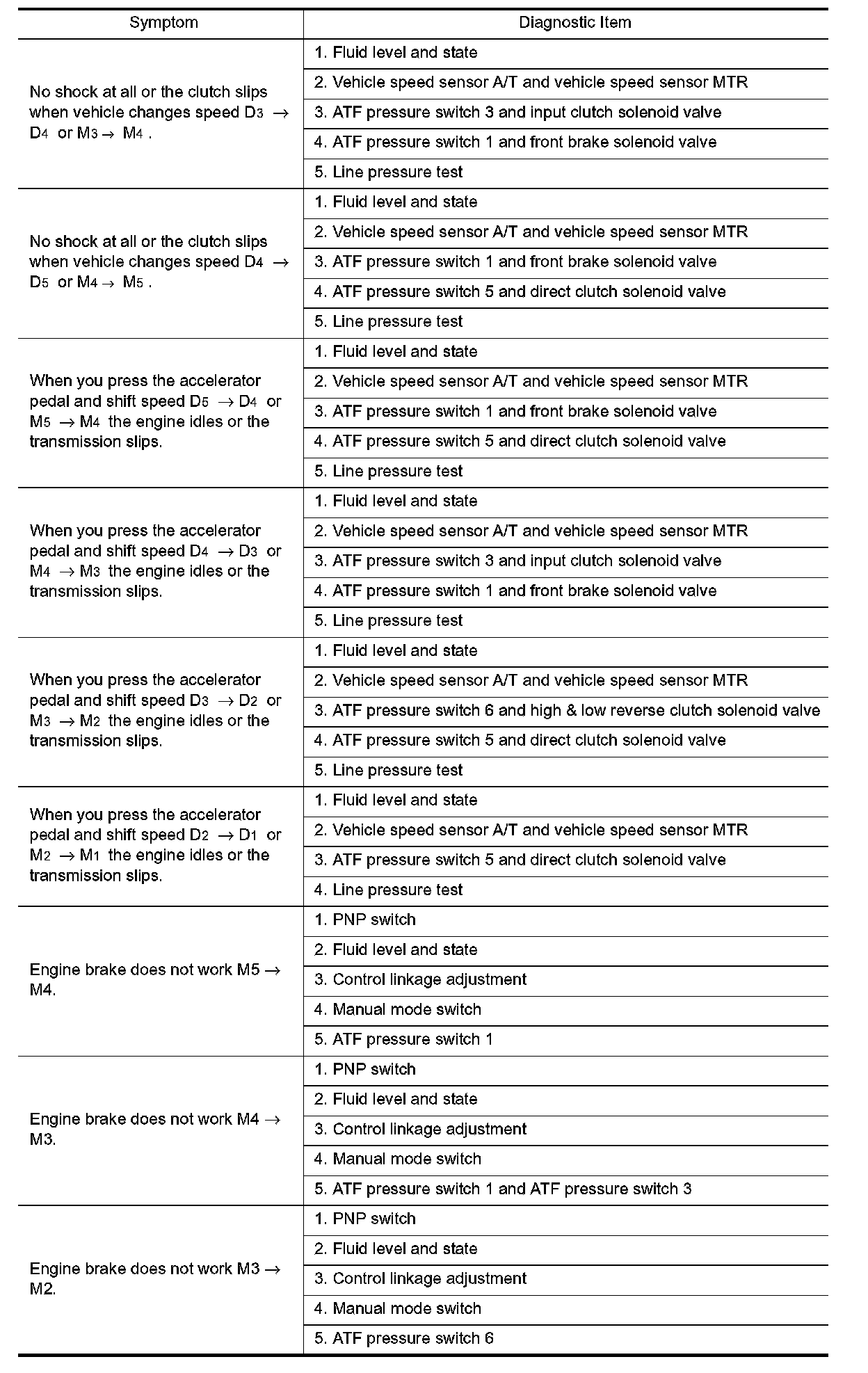

Test 4 Of 9:

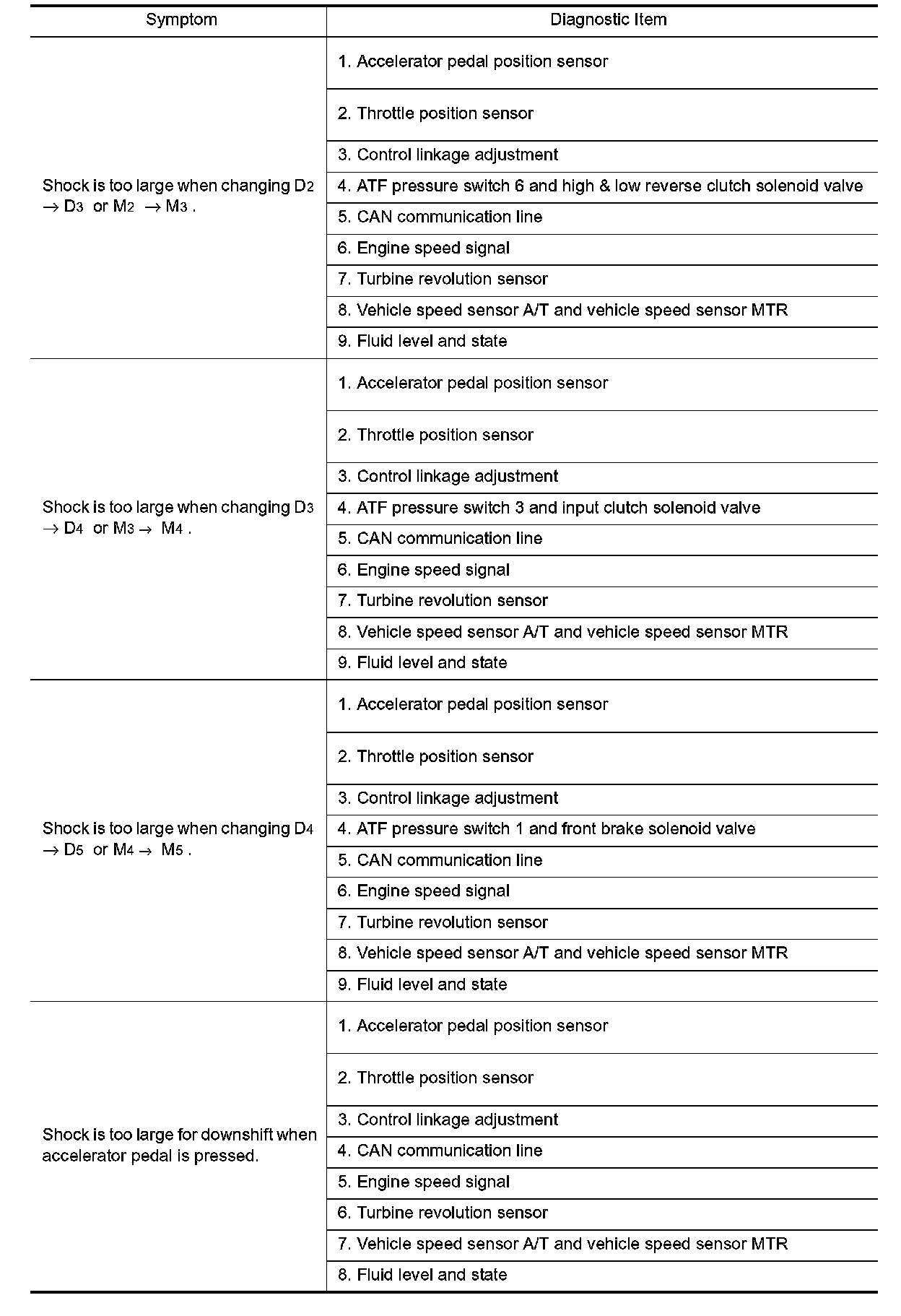

Test 5 Of 9:

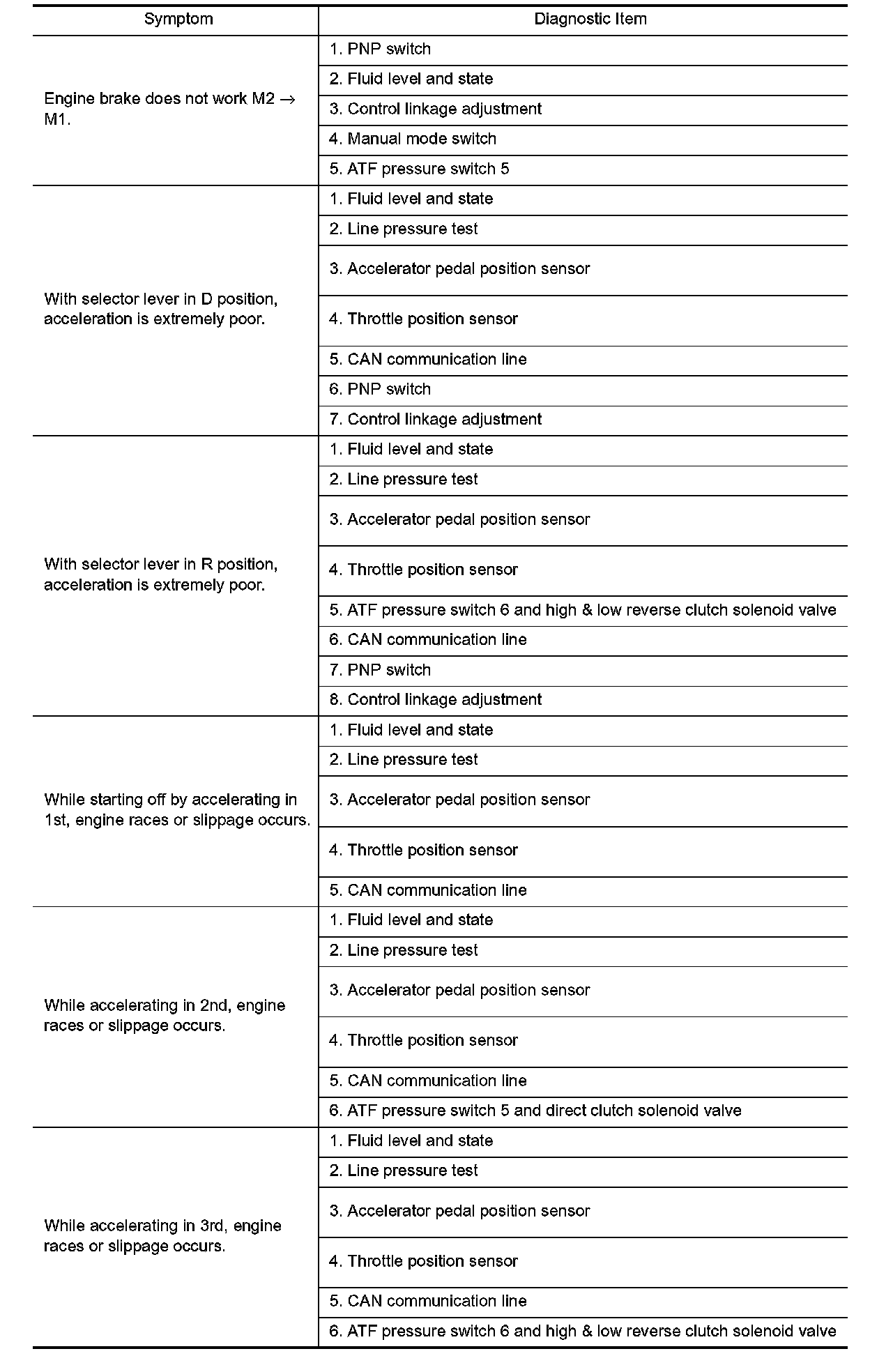

Test 6 Of 9:

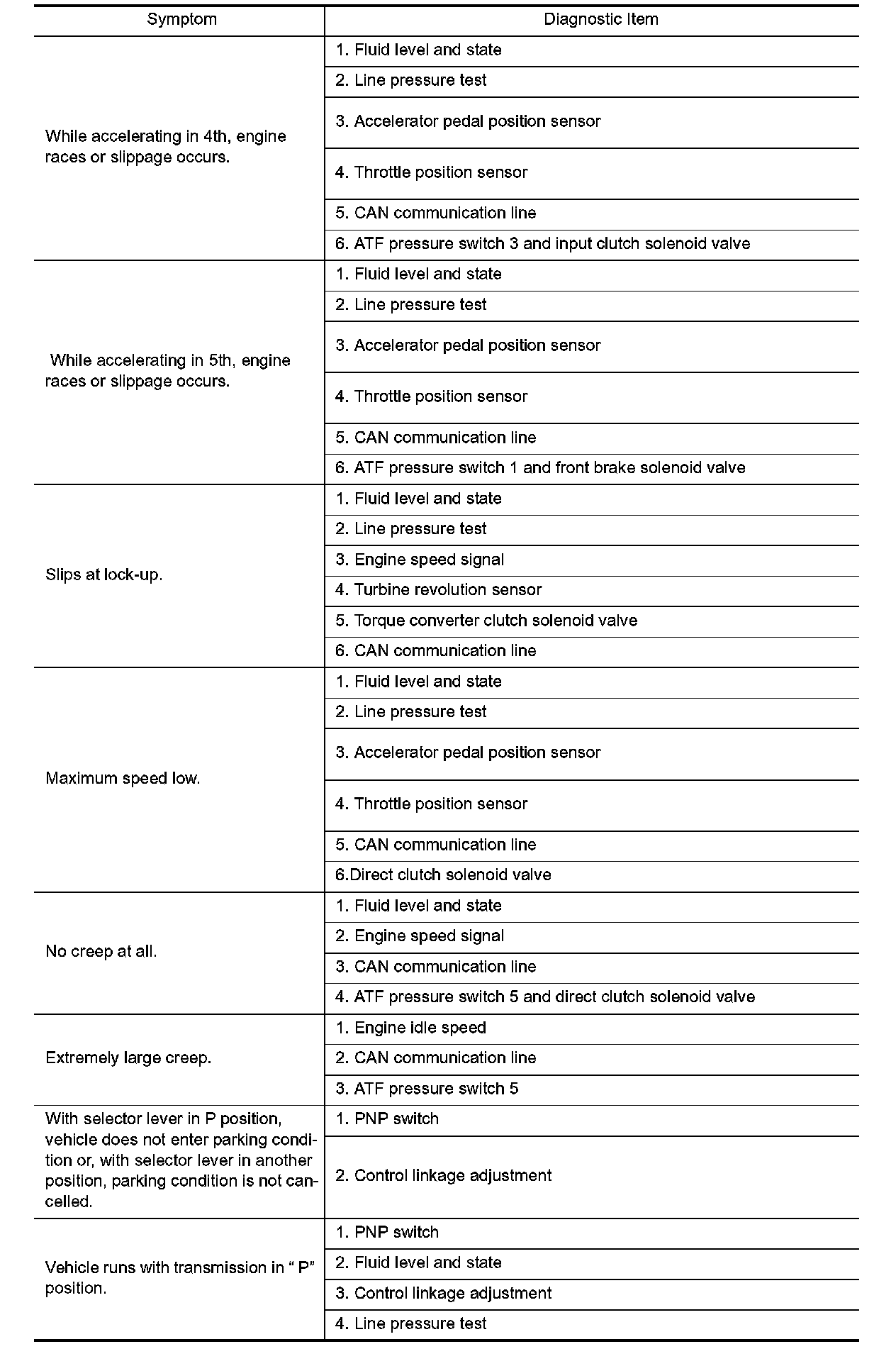

Test 7 Of 9:

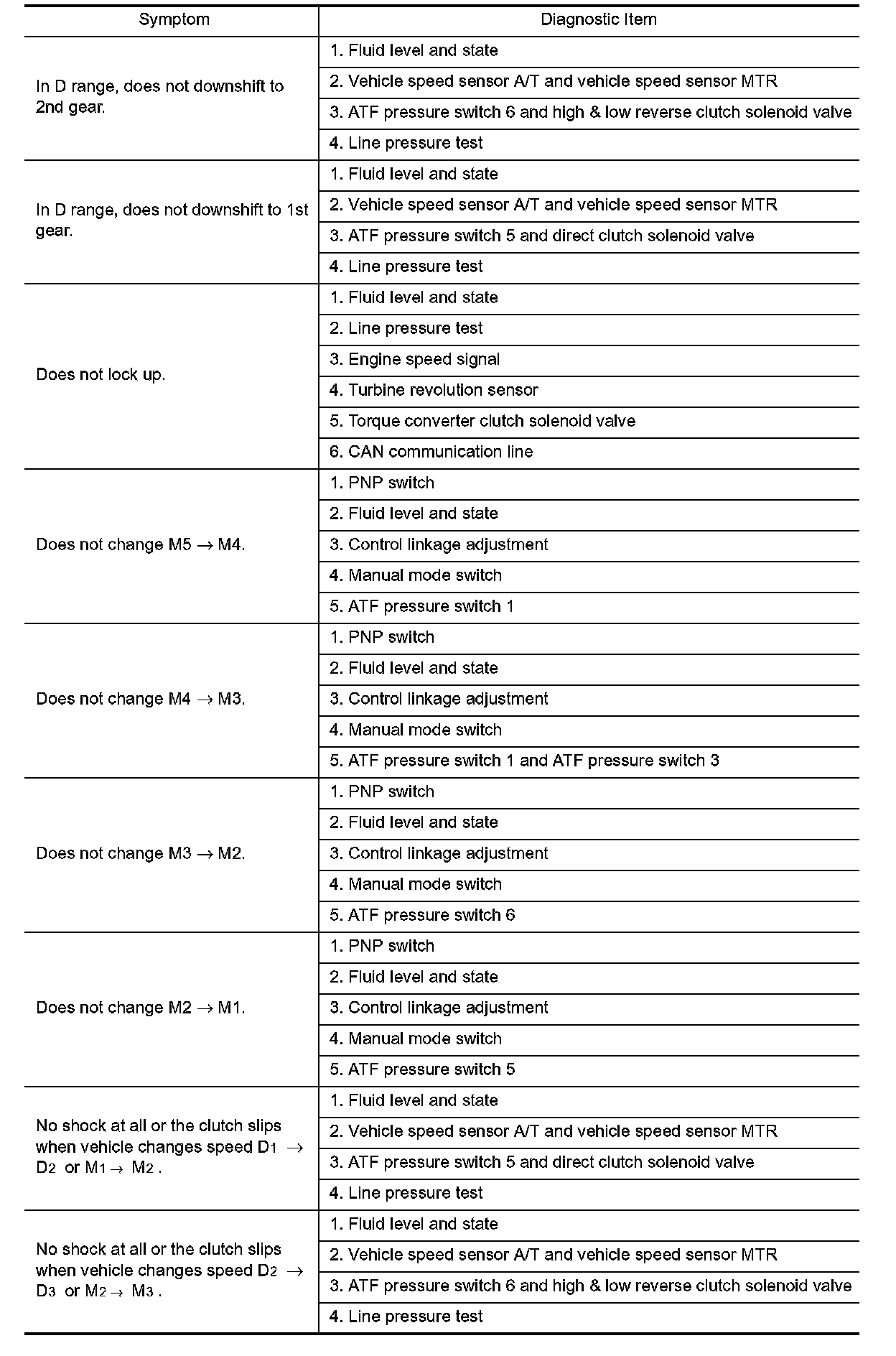

Test 8 Of 9:

Test 9 Of 9:
