Encoder Circuit Check (Passenger Side)

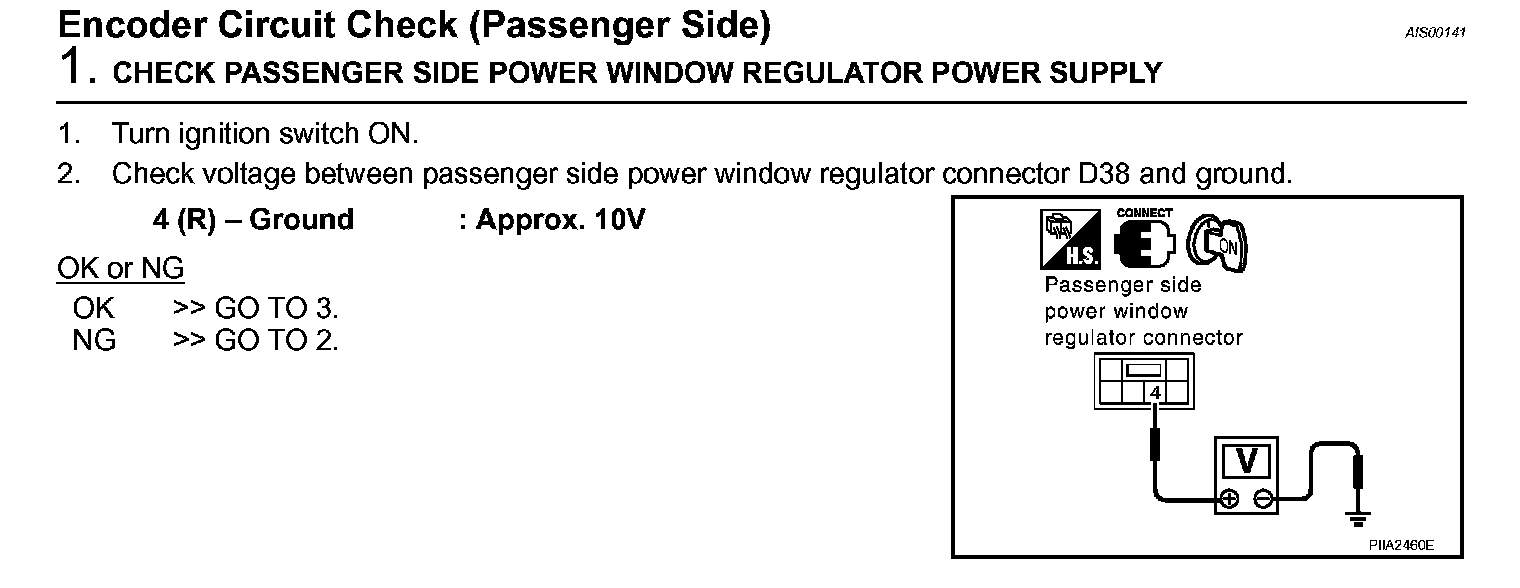

Diagnostic Procedure Step 1:

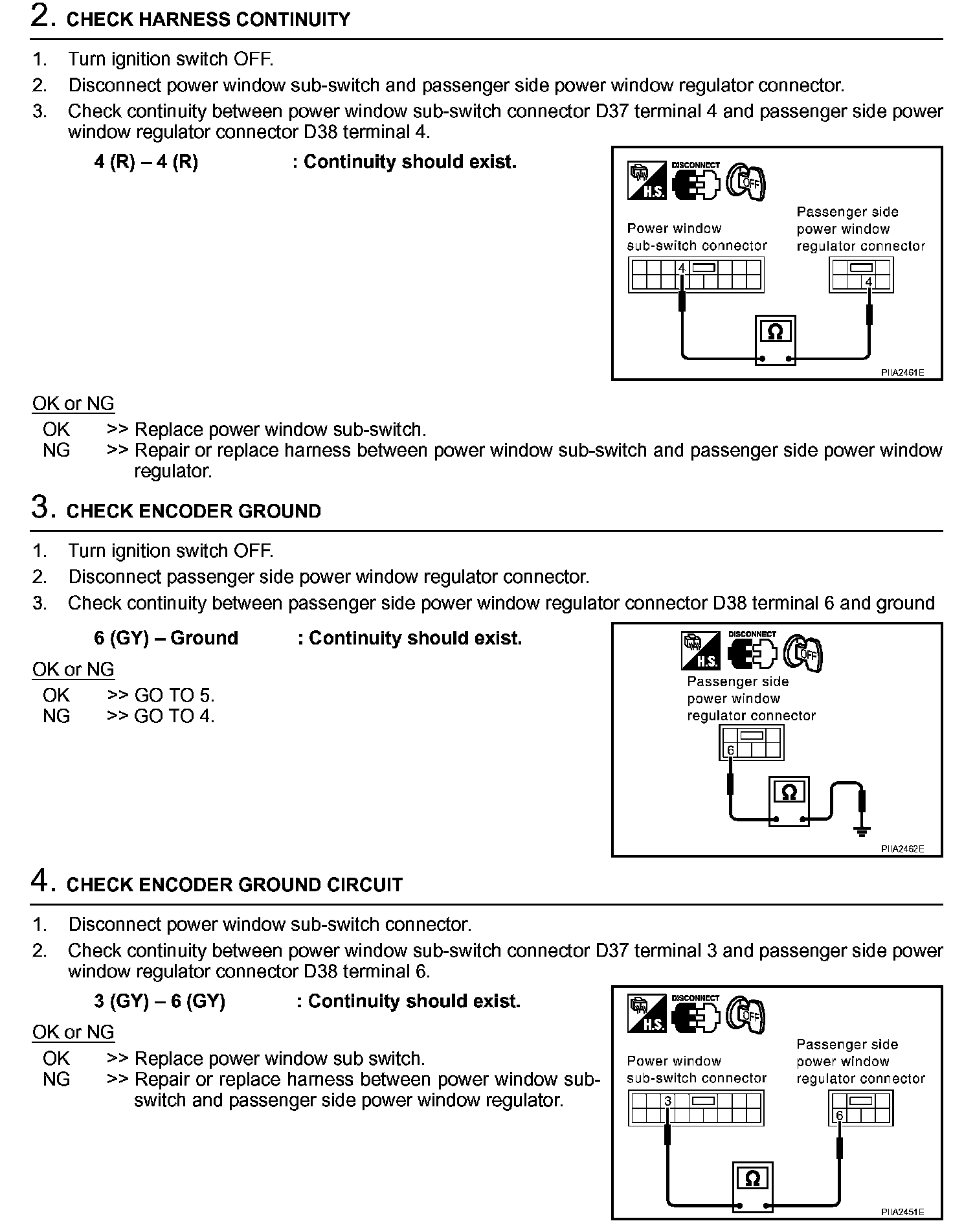

Diagnostic Procedure Step 2 - 4:

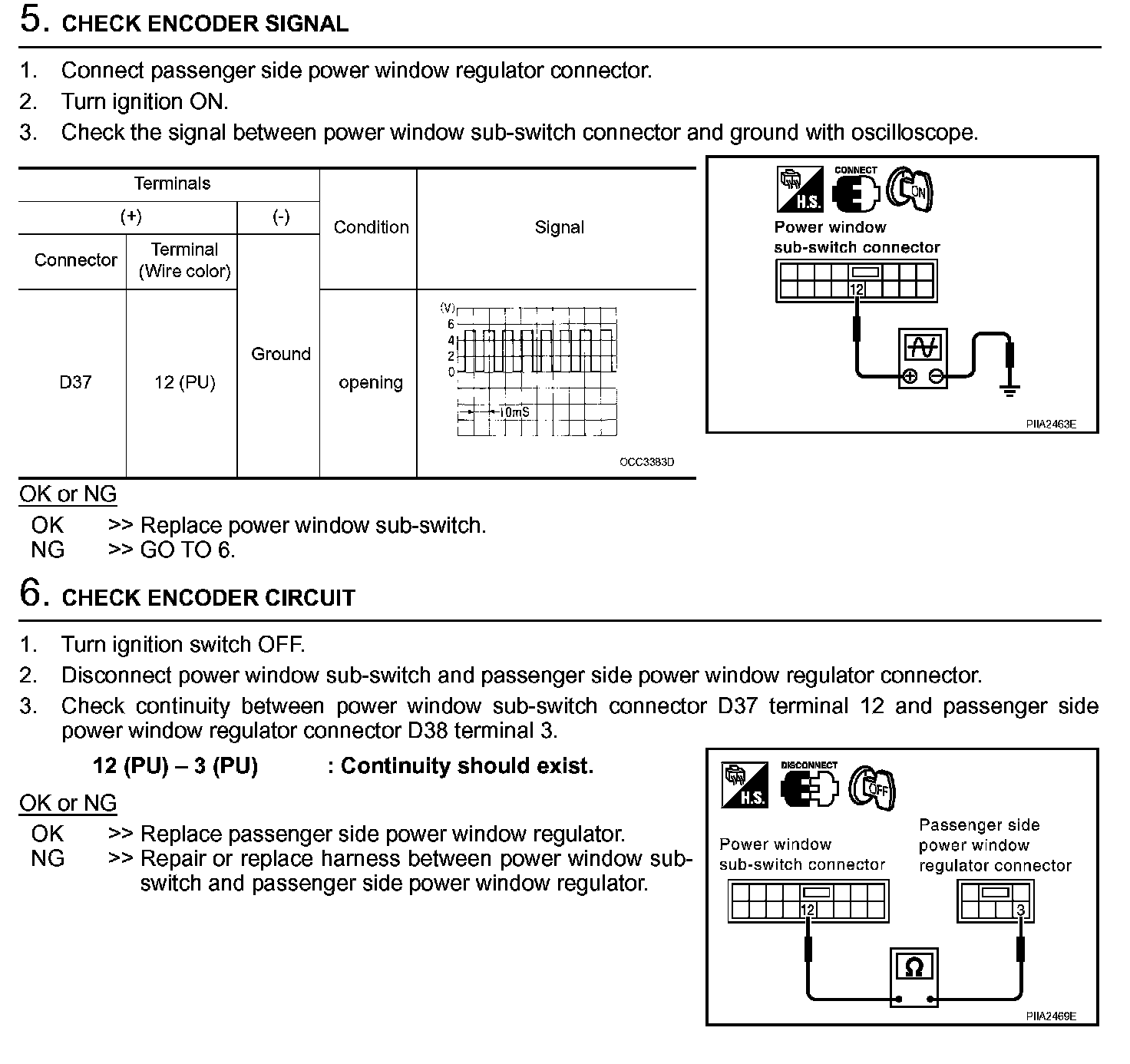

Diagnostic Procedure Step 5 - 6:
