Wiper Switch: Service and Repair

Replacement

For removal and installation of spiral cable, refer to Clockspring Assembly/Spiral Cable. Clockspring Assembly / Spiral Cable

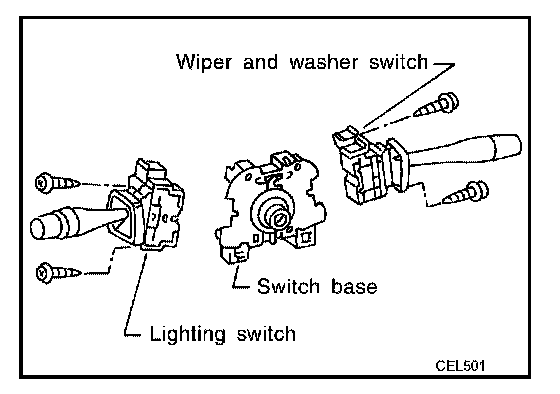

- Each switch can be replaced without removing switch base.

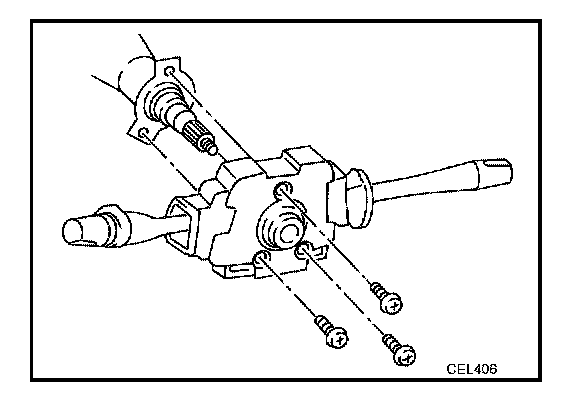

- To remove switch base, remove switch base attaching screws.

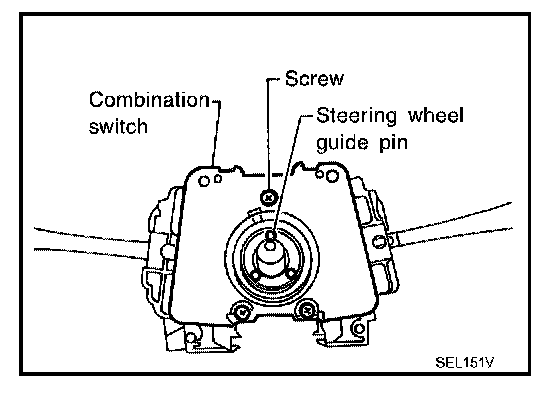

- Before installing the steering wheel, align the steering wheel guide pins with the screws which secure the combination switch as shown in the figure.
