Navigation Module: Locations

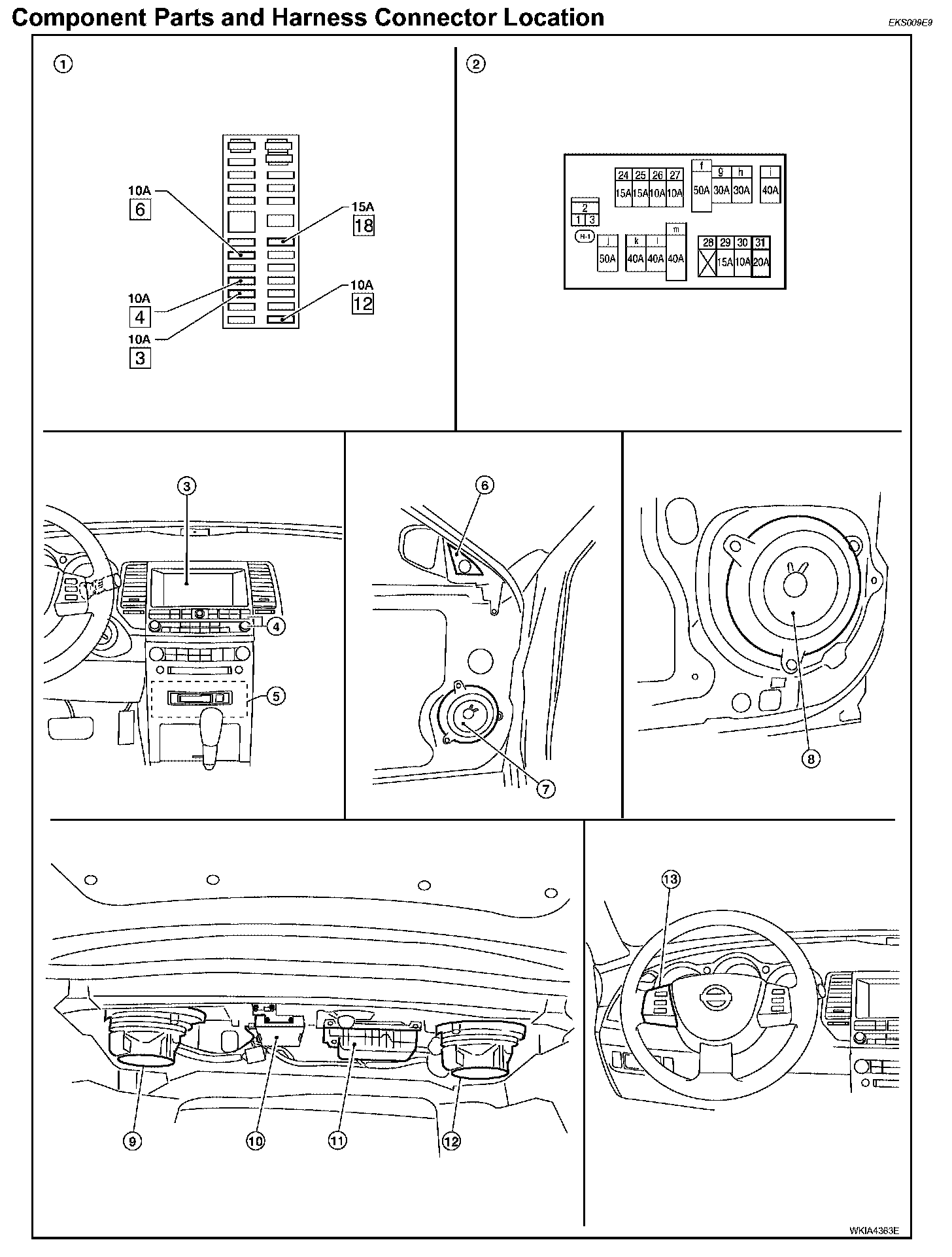

Component Parts And Harness Connector Location:

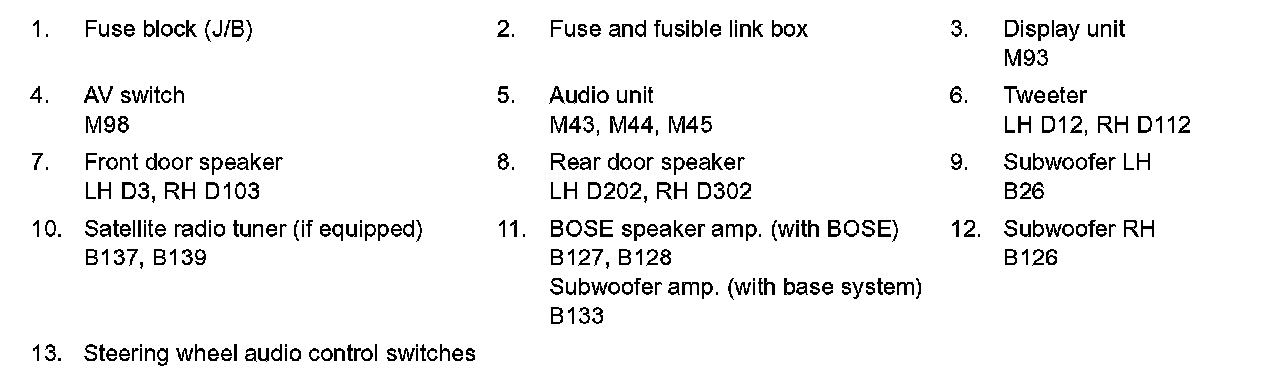

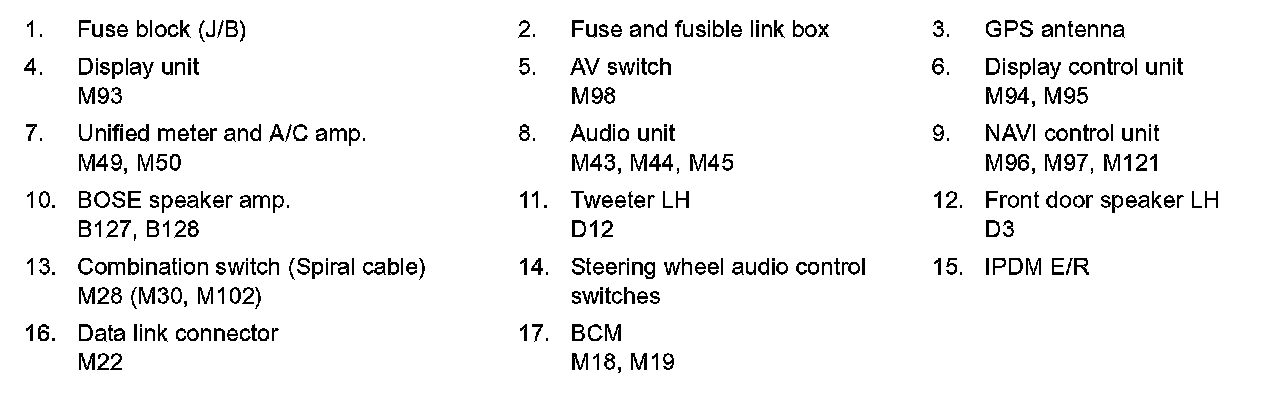

Component Parts Location:
