Refrigerant Pressure Sensor / Switch: Service and Repair

Removal and Installation for Refrigerant Pressure Sensor

REMOVAL
1. Discharge the refrigerant. Refer to "HFC-134a (R-134a) Service Procedure".

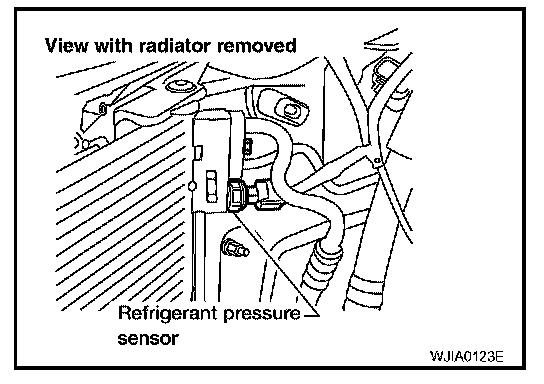

2. Disconnect the refrigerant pressure sensor connector and remove the refrigerant pressure sensor from condenser.

CAUTION: Do not damage the condenser fins.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Replace the O-ring of the refrigerant pressure sensor with a new one, then apply compressor oil to it when installing it.

Refrigerant pressure sensor : Refer to "Components".
