Front Wheel Turning Angle

FRONT WHEEL TURNING ANGLE

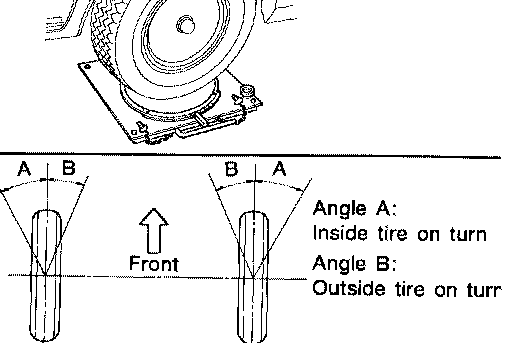

1. Set the front wheels in a straight-ahead position. Then move the vehicle forward until the front wheels rest on the turning radius gauge as shown.
2. Rotate steering wheel all the way right and left; measure the turning angles "A" and "B" as shown.
Wheel turning angle (full turn): Refer to "Front Wheel Alignment (Unladen*1)".
