Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2006
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

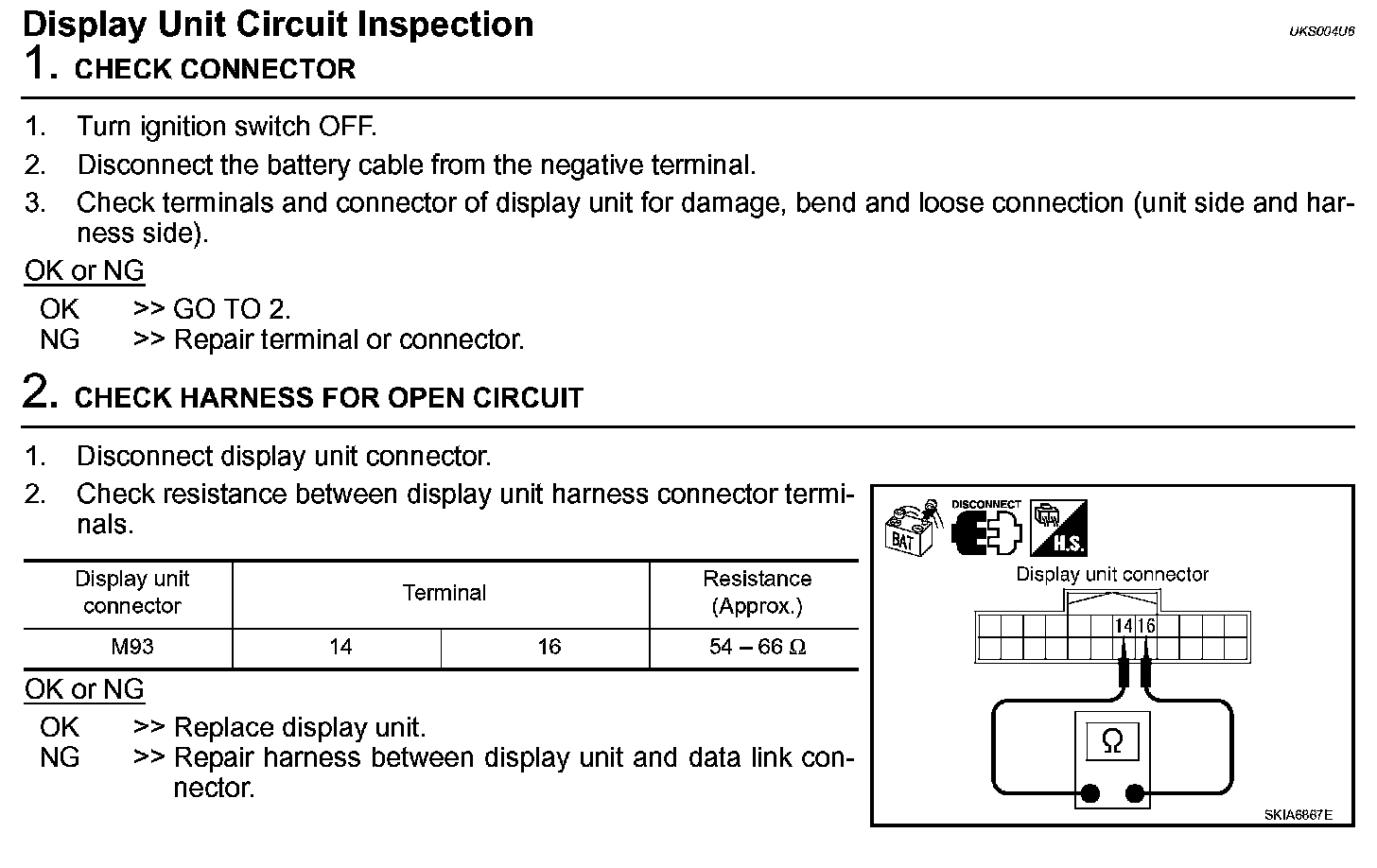

Display Unit Circuit Inspection
Display Unit Circuit Inspection
Display Unit Circuit Inspection:
