Scan Tool Testing and Procedures
CAN Diagnostic Support Monitor

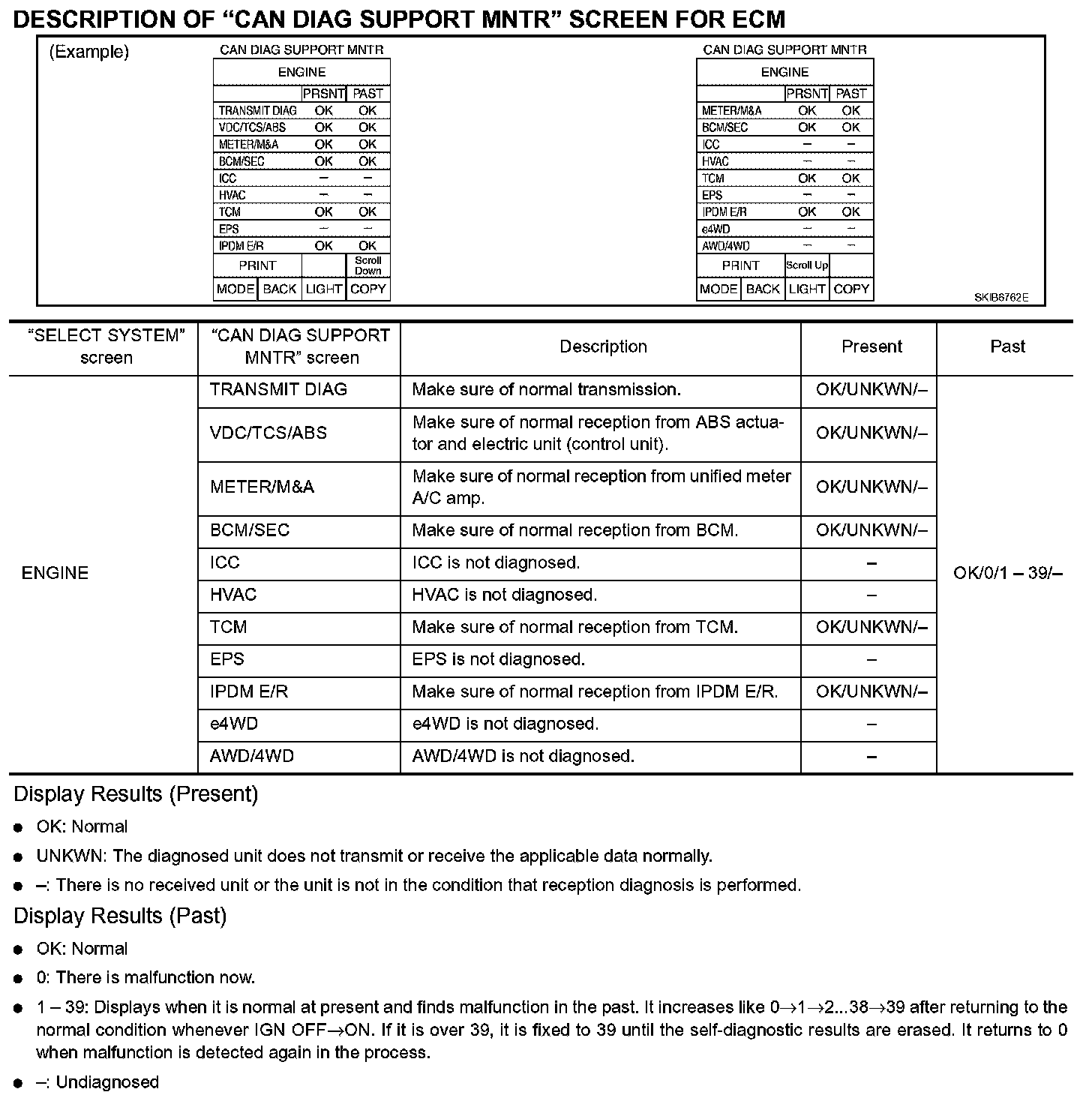

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ECM

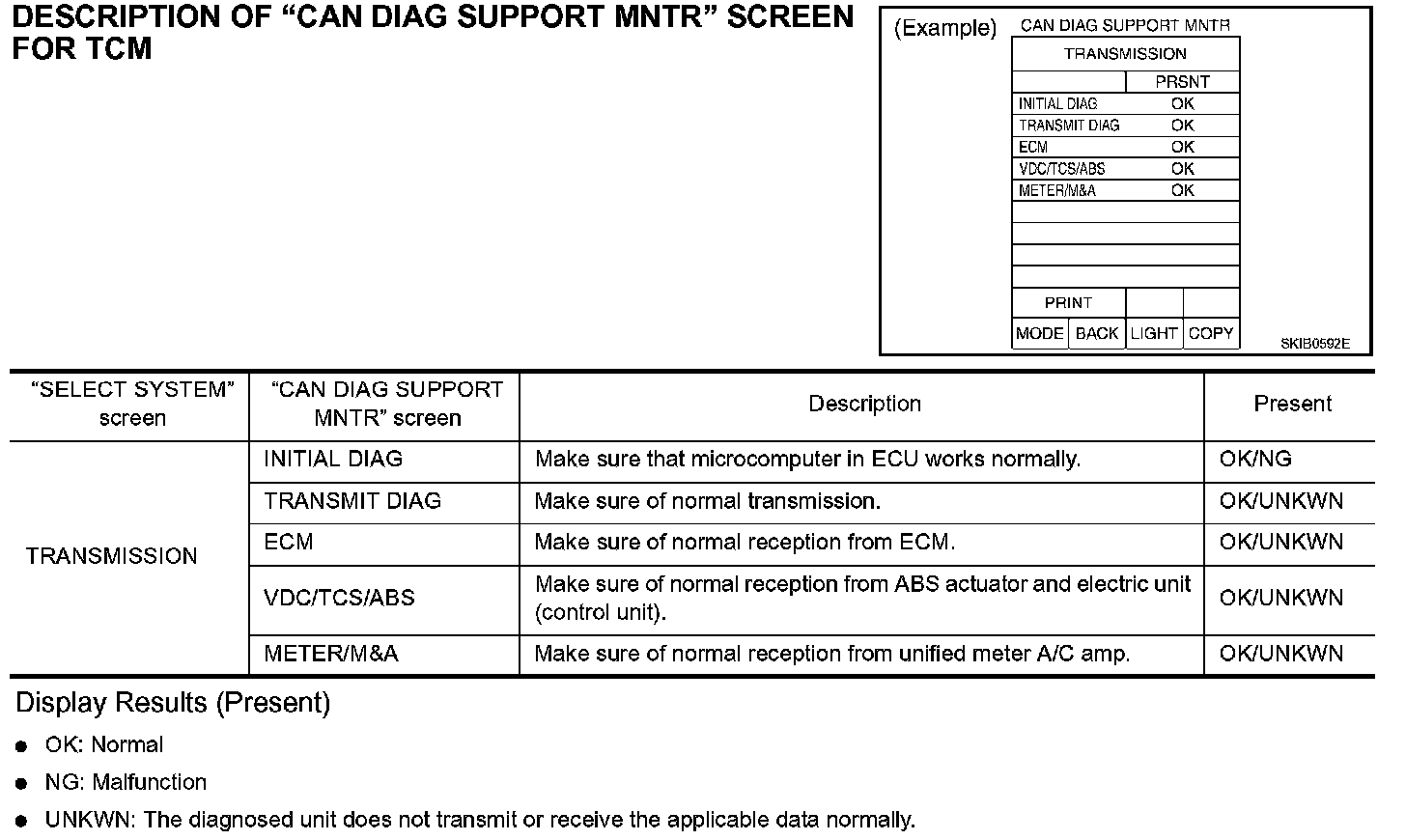

DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR TCM
DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR UNIFIED METER A/C AMP.

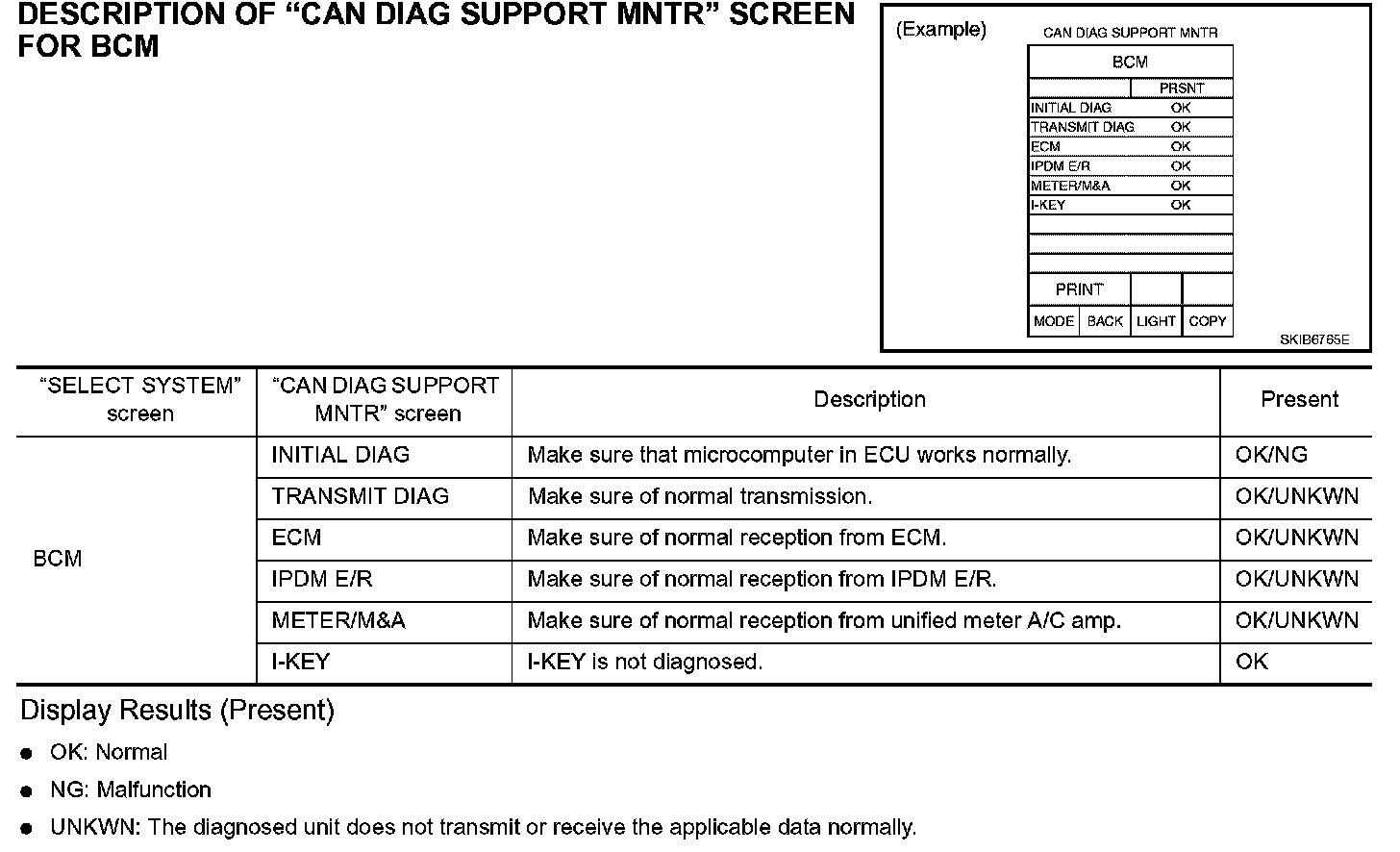

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR BCM

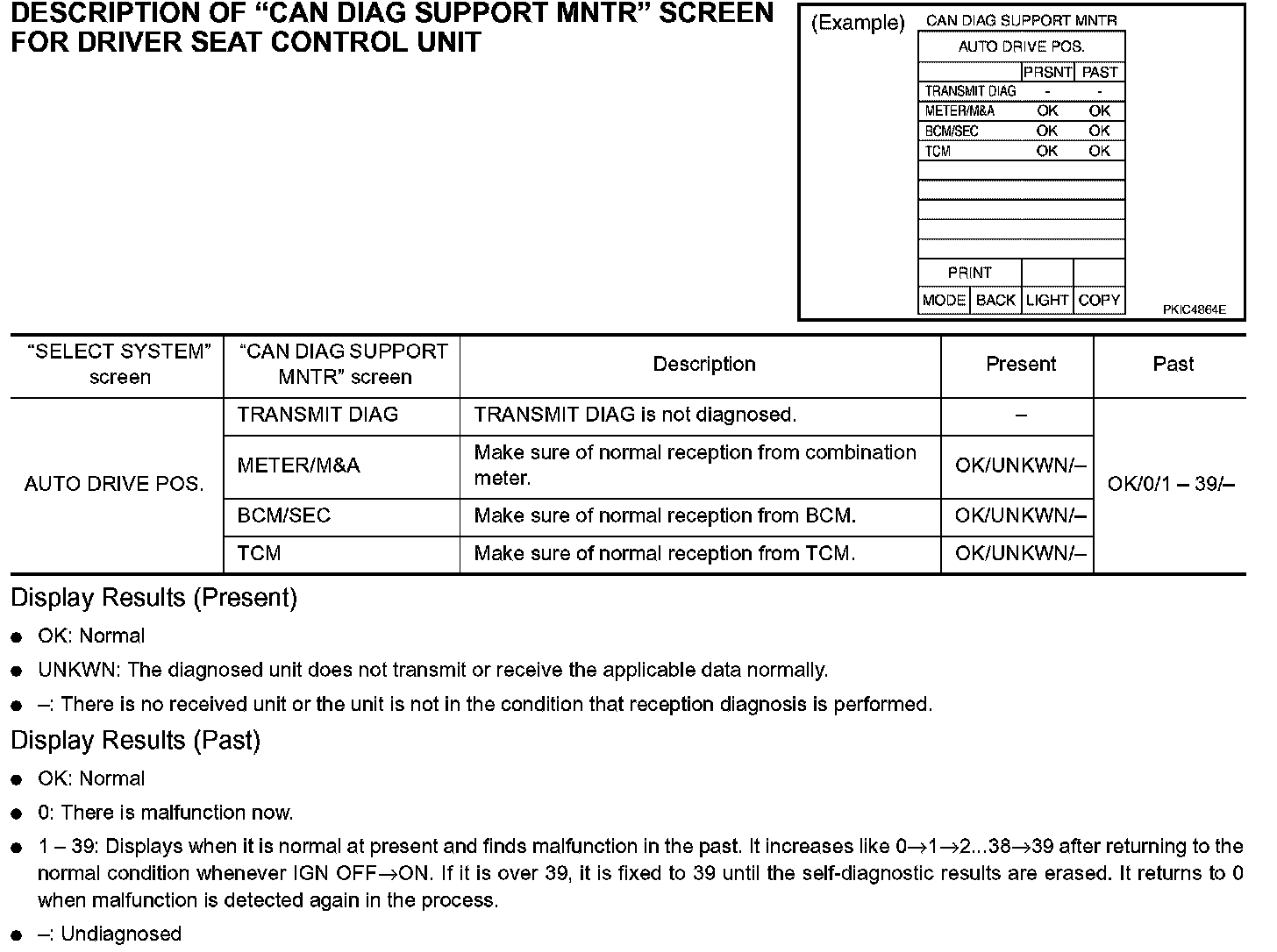

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR DRIVER SEAT CONTROL UNIT

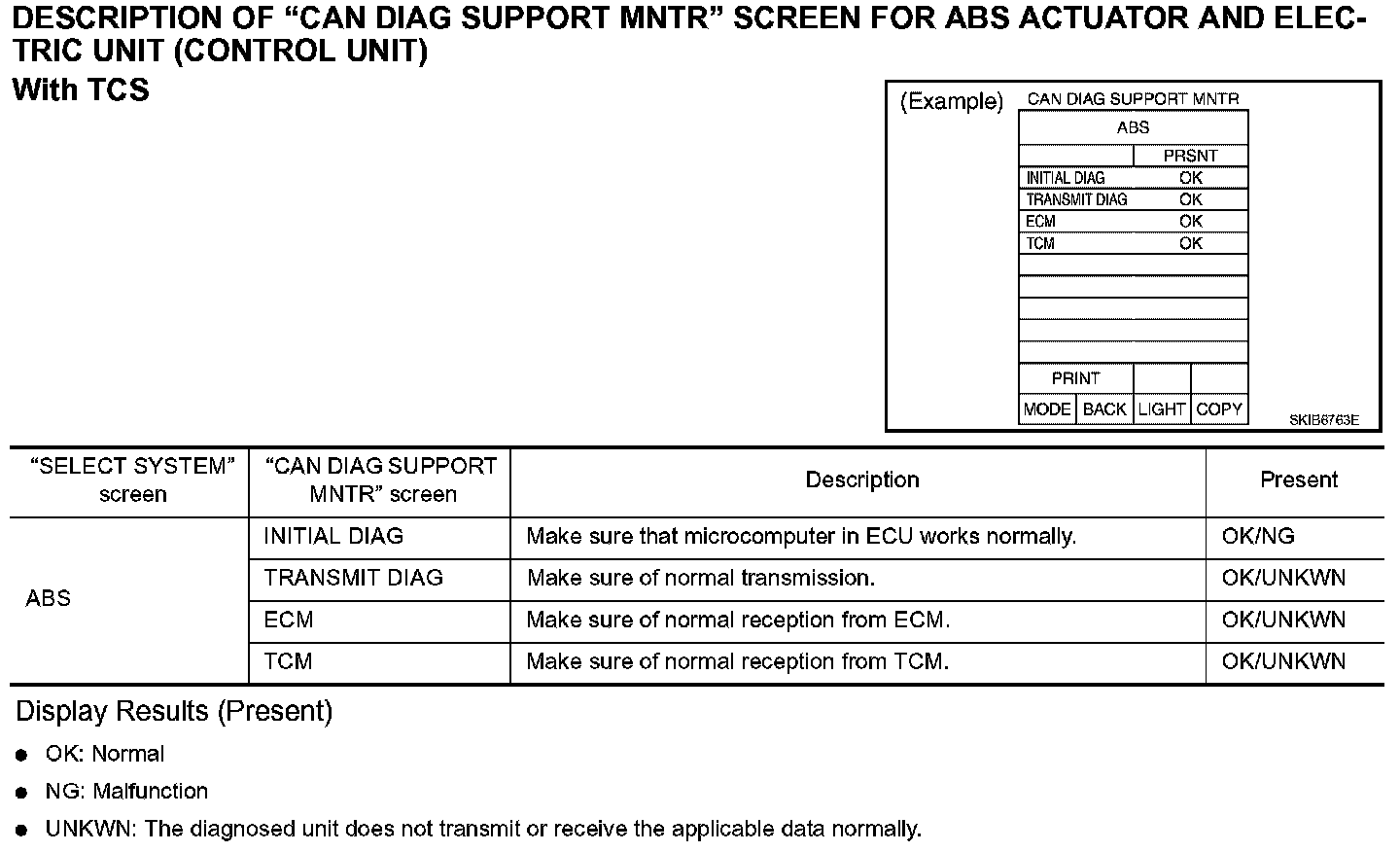

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
With TCS
With VDC

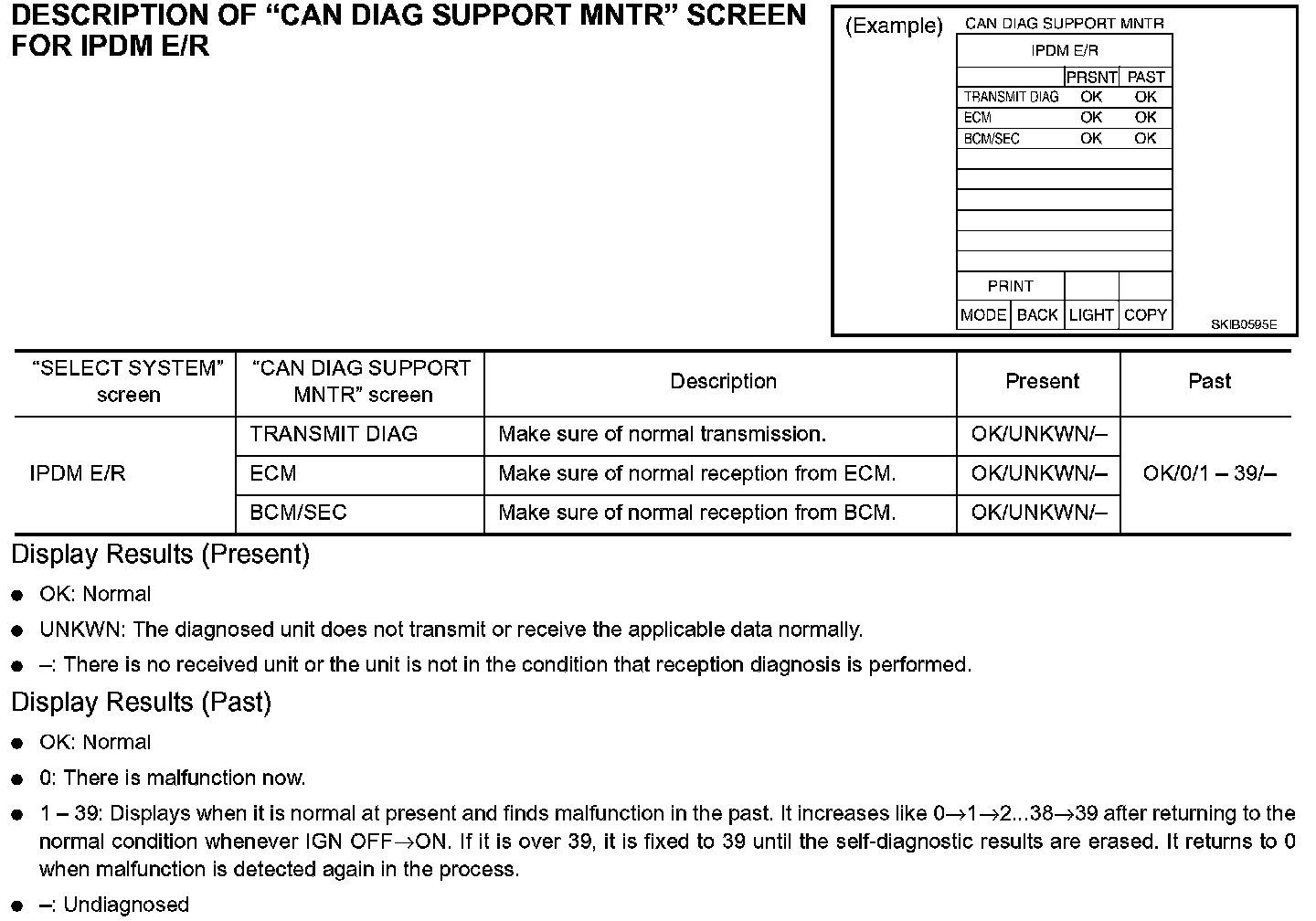

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR IPDM E/R
DESCRIPTION OF "CAN DIAG MNTR" SCREEN FOR DISPLAY UNIT

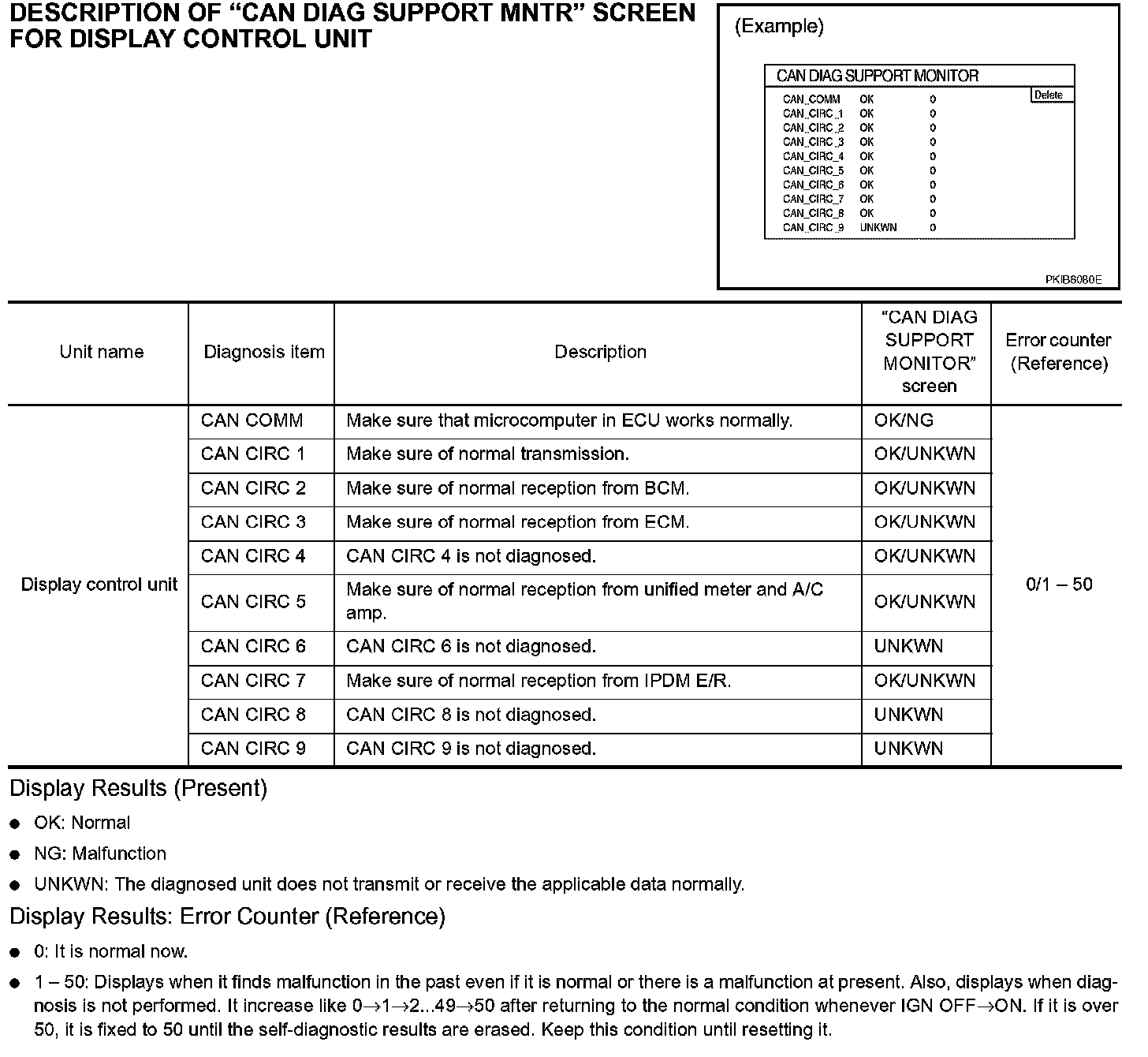

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR DISPLAY CONTROL UNIT
