CAN Communication Circuit Inspection
CAN Communication Circuit Inspection

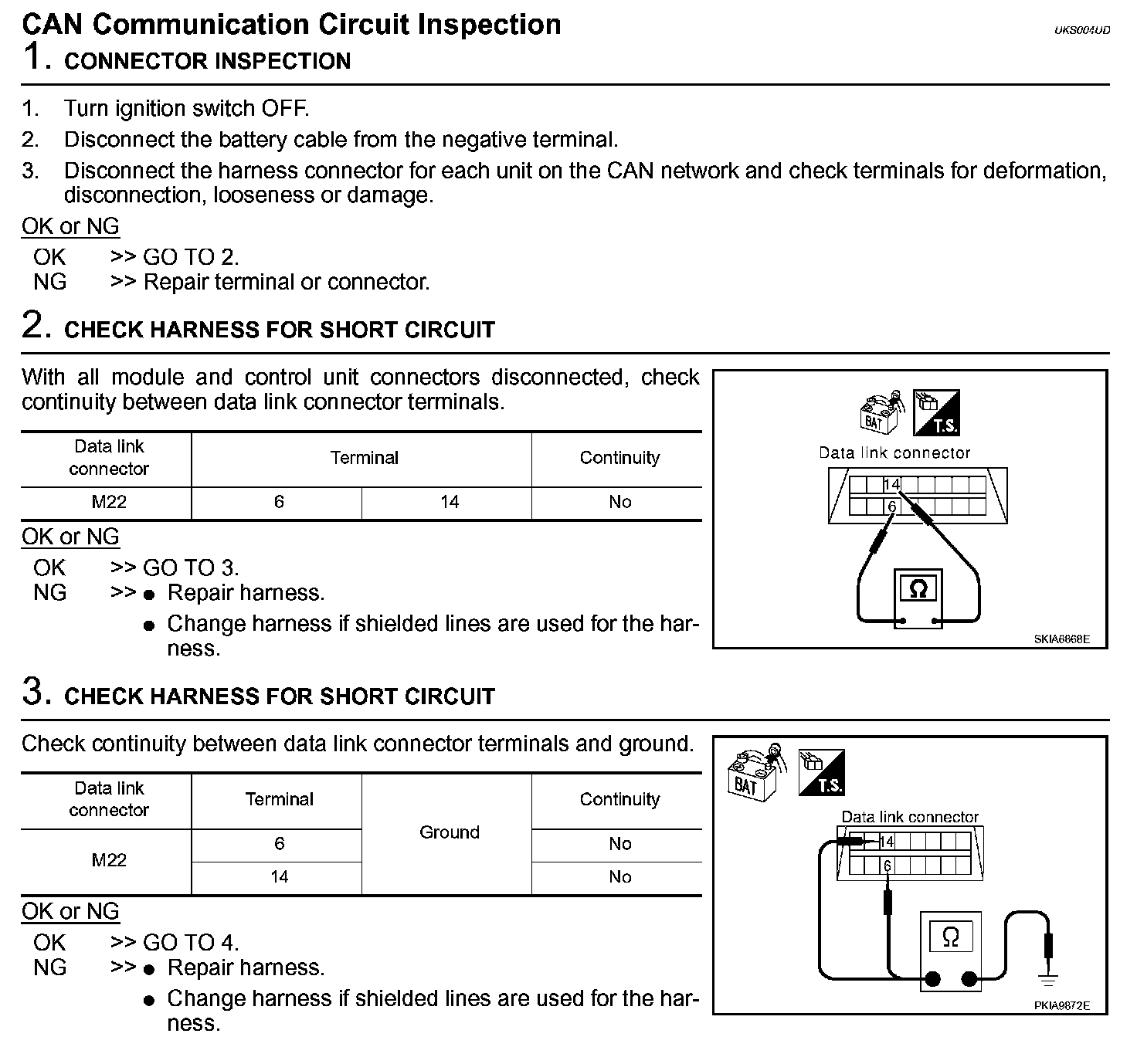

CAN Communication Circuit Inspection (Steps 1 - 3):

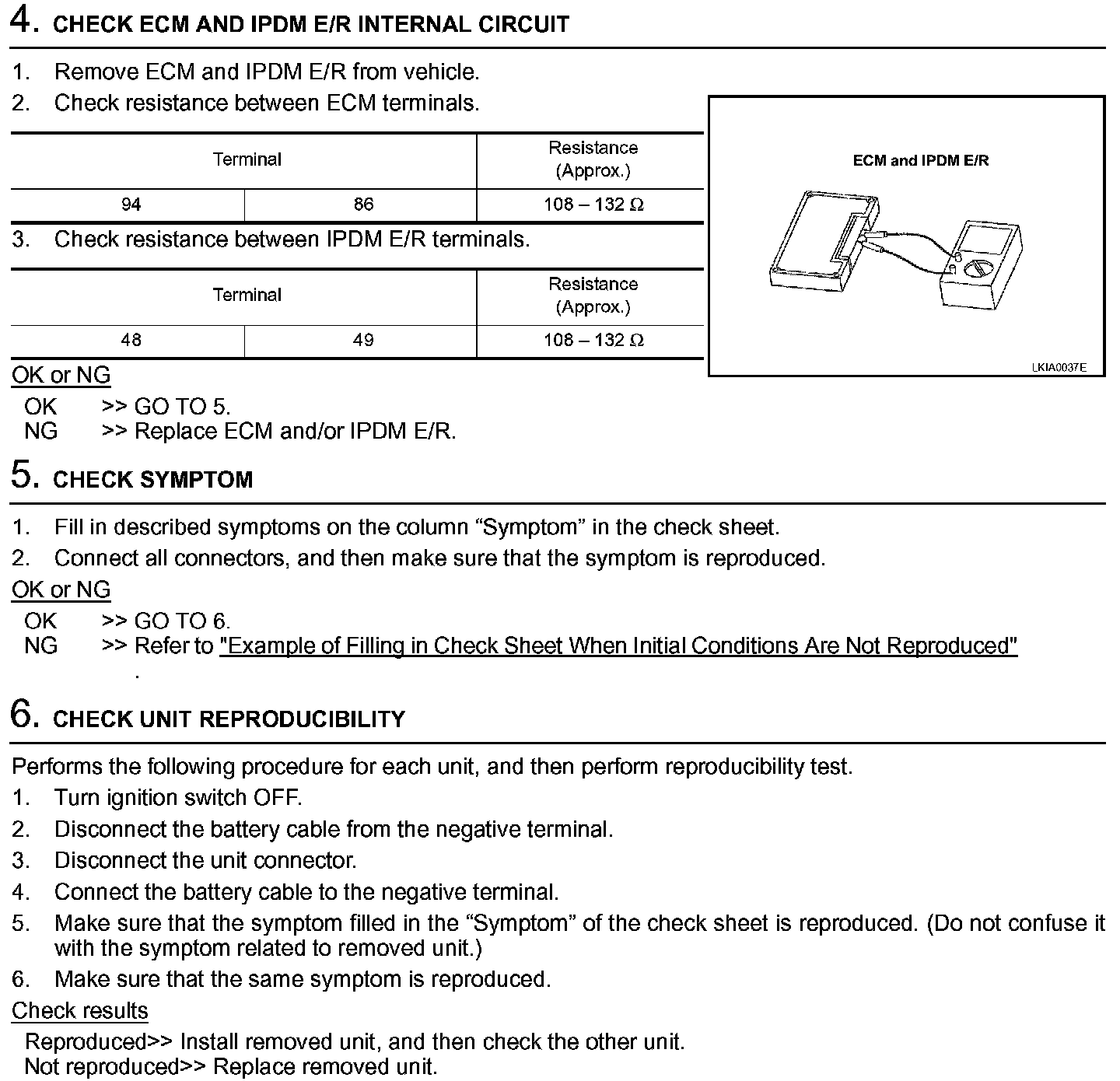

CAN Communication Circuit Inspection (Steps 4 - 6):
