Inspection Between Data Link Connector and Driver Seat Control Unit
Inspection Between Data Link Connector and Driver Seat Control Unit

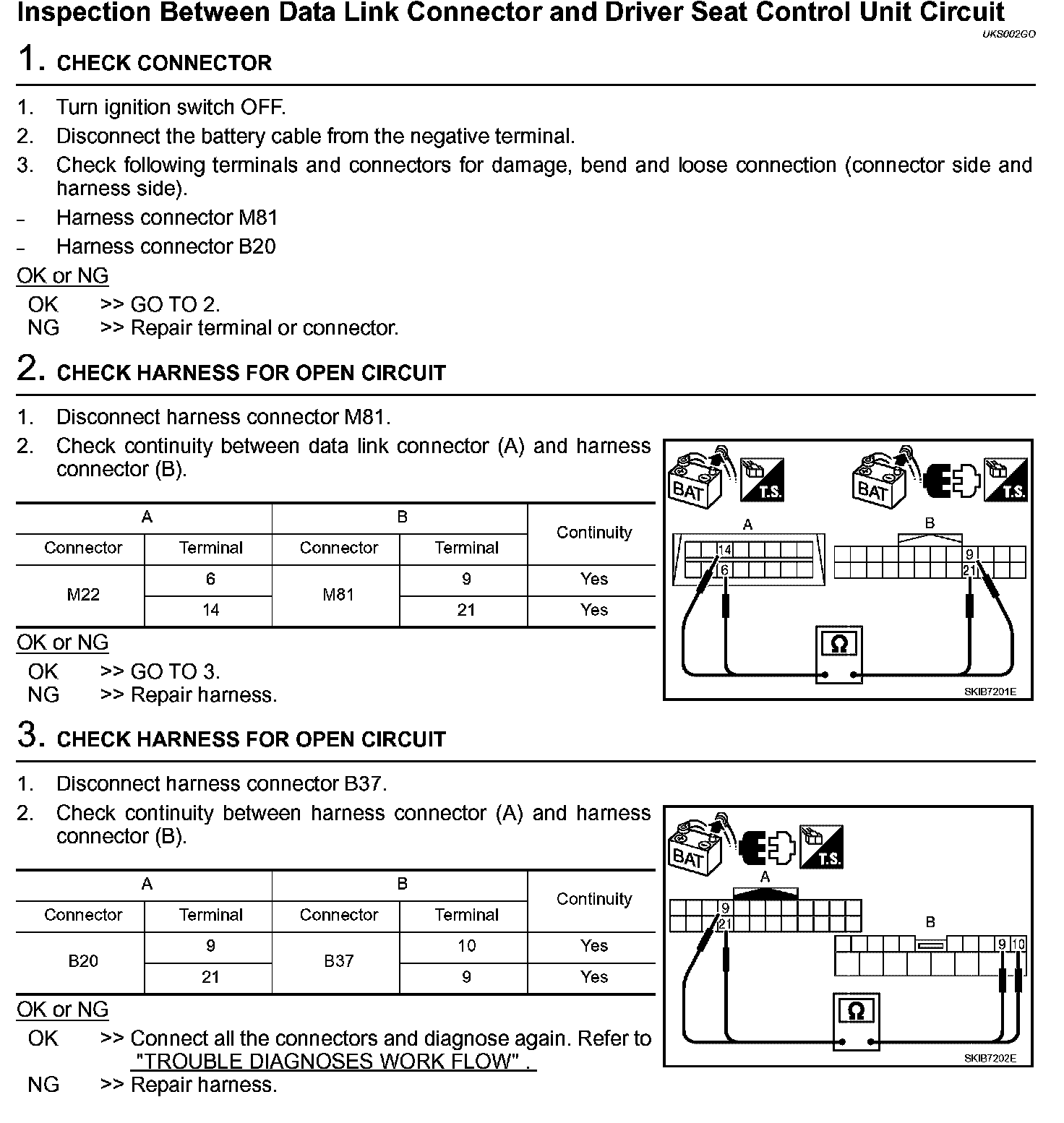

Inspection Between Data Link Connector And Driver Seat Control Unit Circuit:
