Condenser: Testing and Inspection

CONDENSER-1

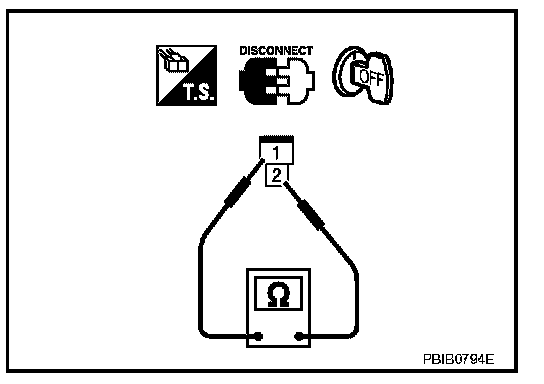

1. Turn ignition switch OFF.
2. Disconnect condenser-1 harness connector.




3. Check resistance between condenser terminals as 1 and 2.

Resistance: Above 1 M Ohm at 25 degrees C (77 degrees F)

CONDENSER-2

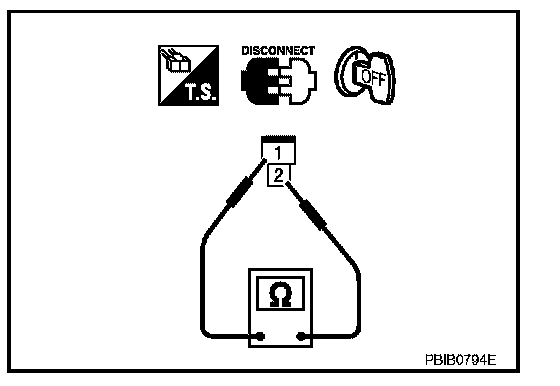

1. Turn ignition switch OFF.
2. Disconnect condenser-2 harness connector.




3. Check resistance between condenser terminals 1 and 2.

Resistance: Above 1 M Ohm at 25 degrees C (77 degrees F)
