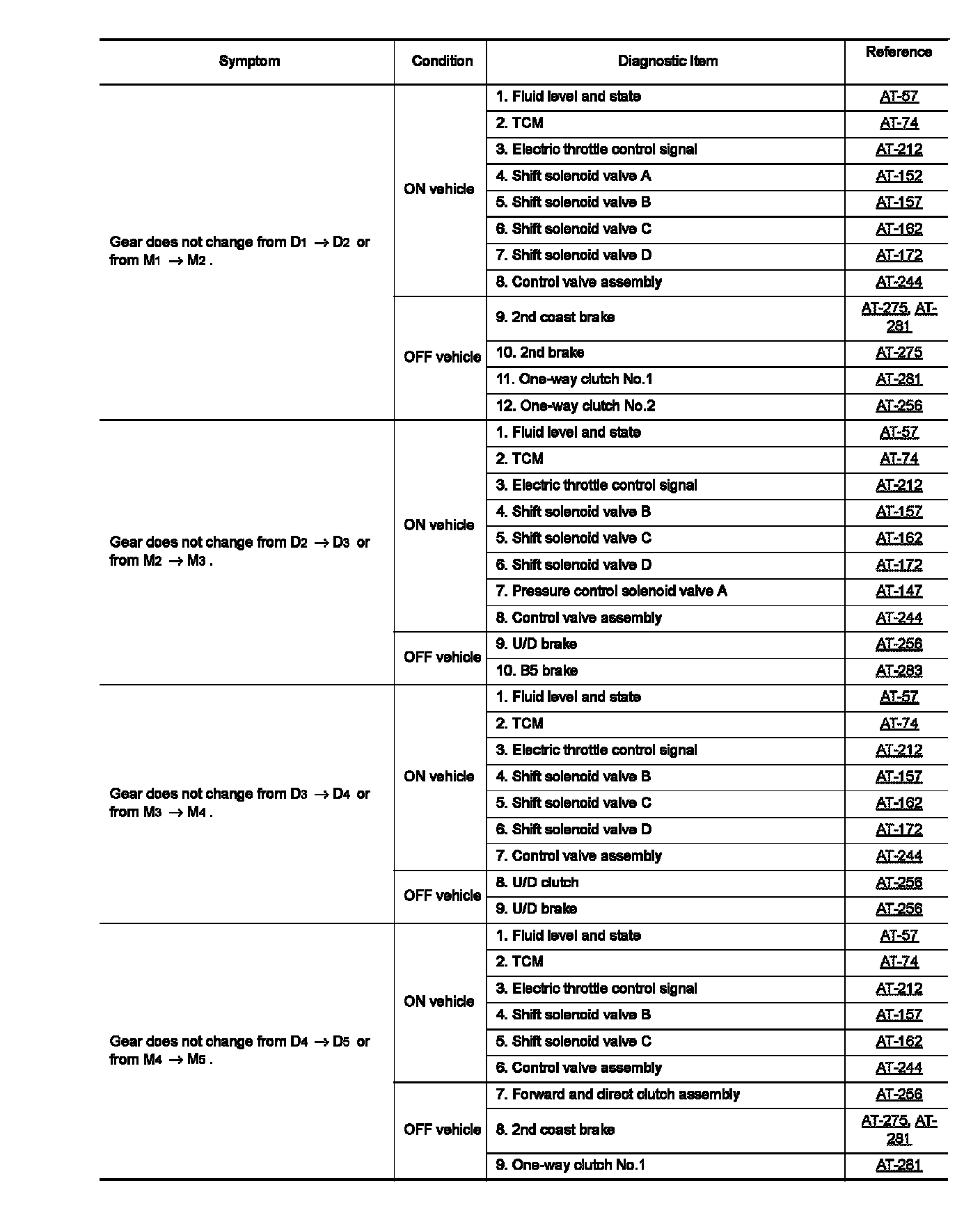

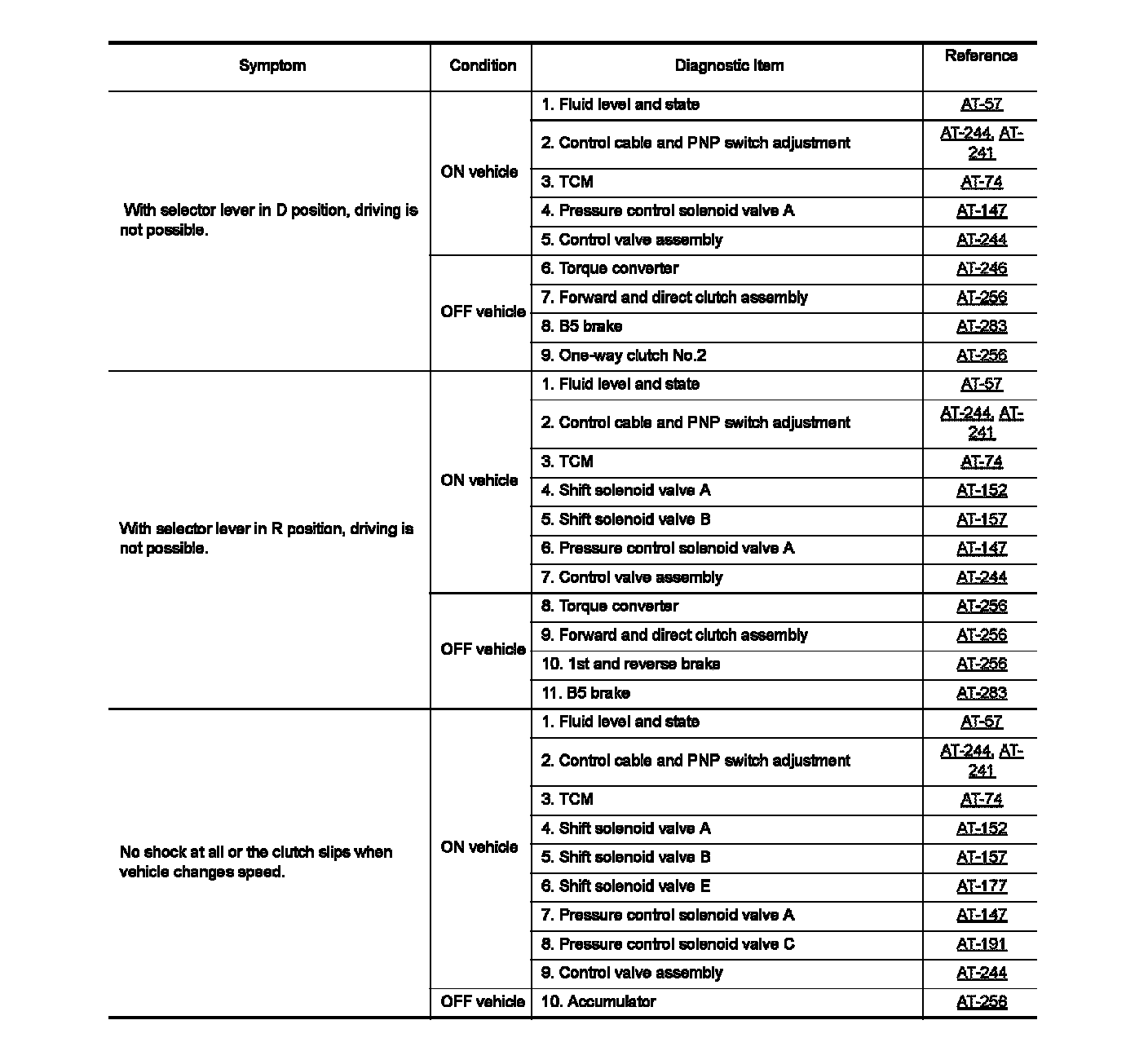

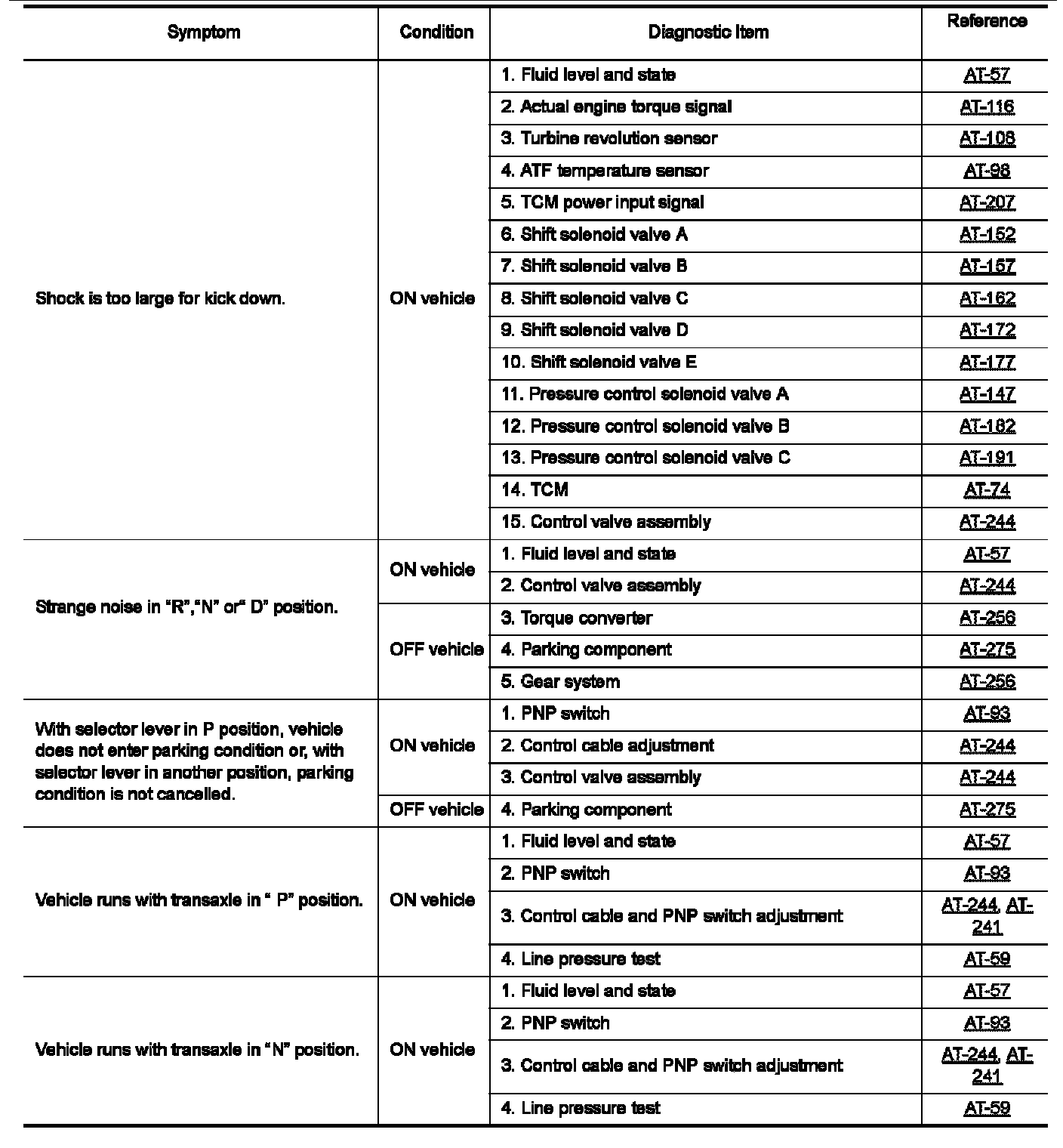

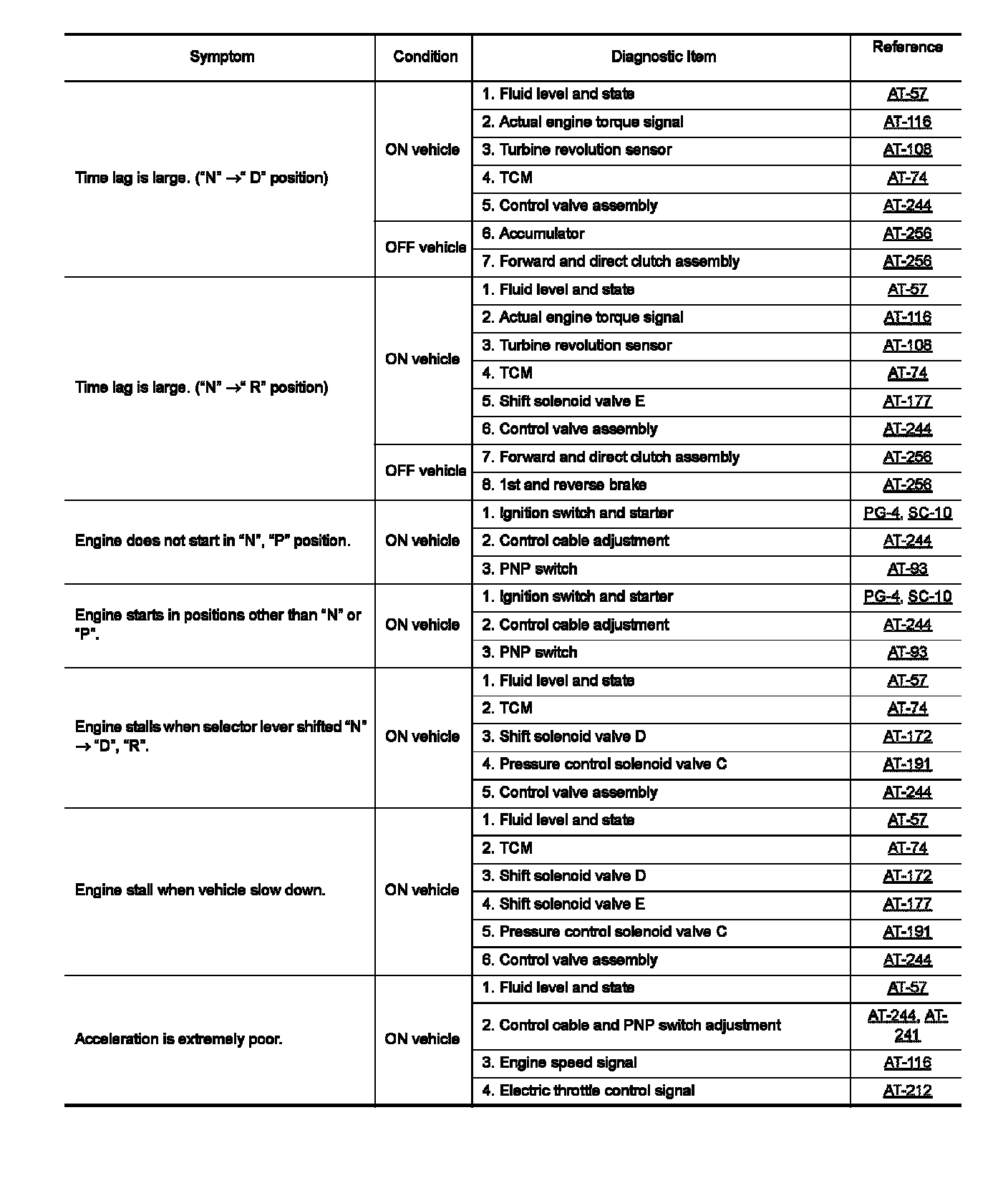

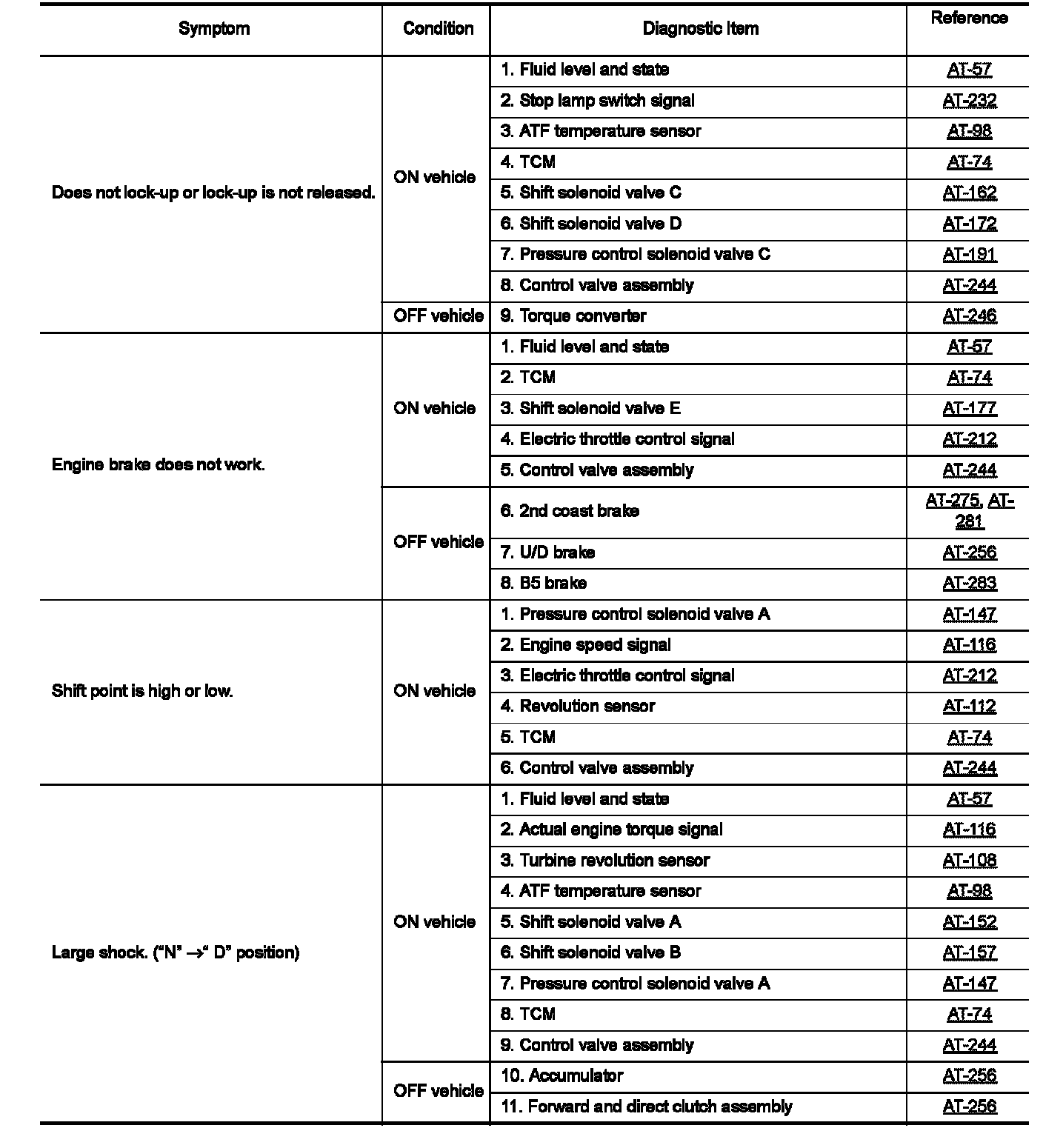

Symptom Chart
Symptom ChartNumbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
CAUTION: Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so.
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
CAUTION: Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so.
