Nissan-Datsun
>>
2006
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Brakes and Traction Control
>>
Electronic Brake Control Module
>>
Locations
>>
TCS/ABS
TCS/ABS

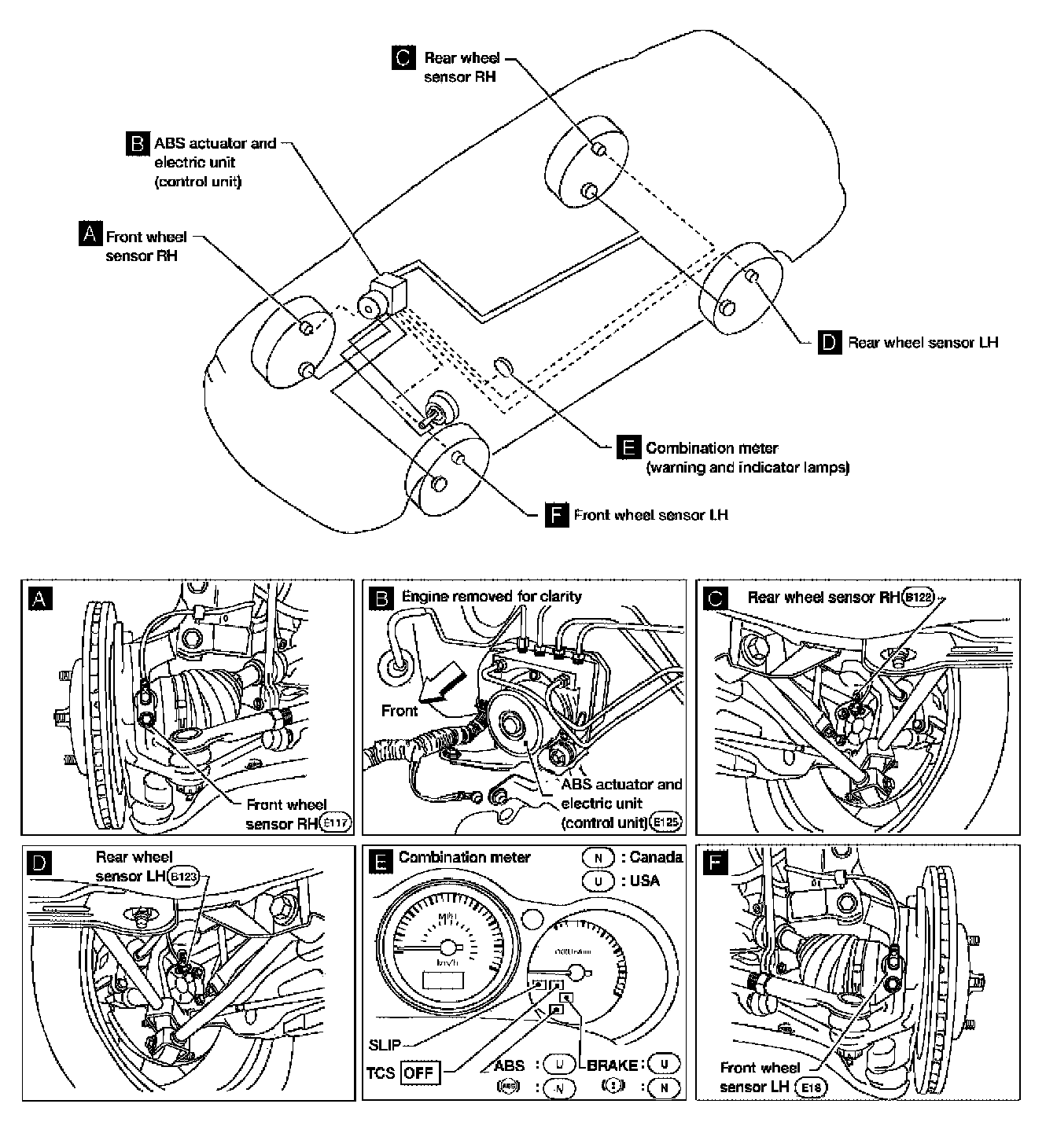

Component Parts and Harness Connector Location:
