Shift Schedule

Shift Schedule

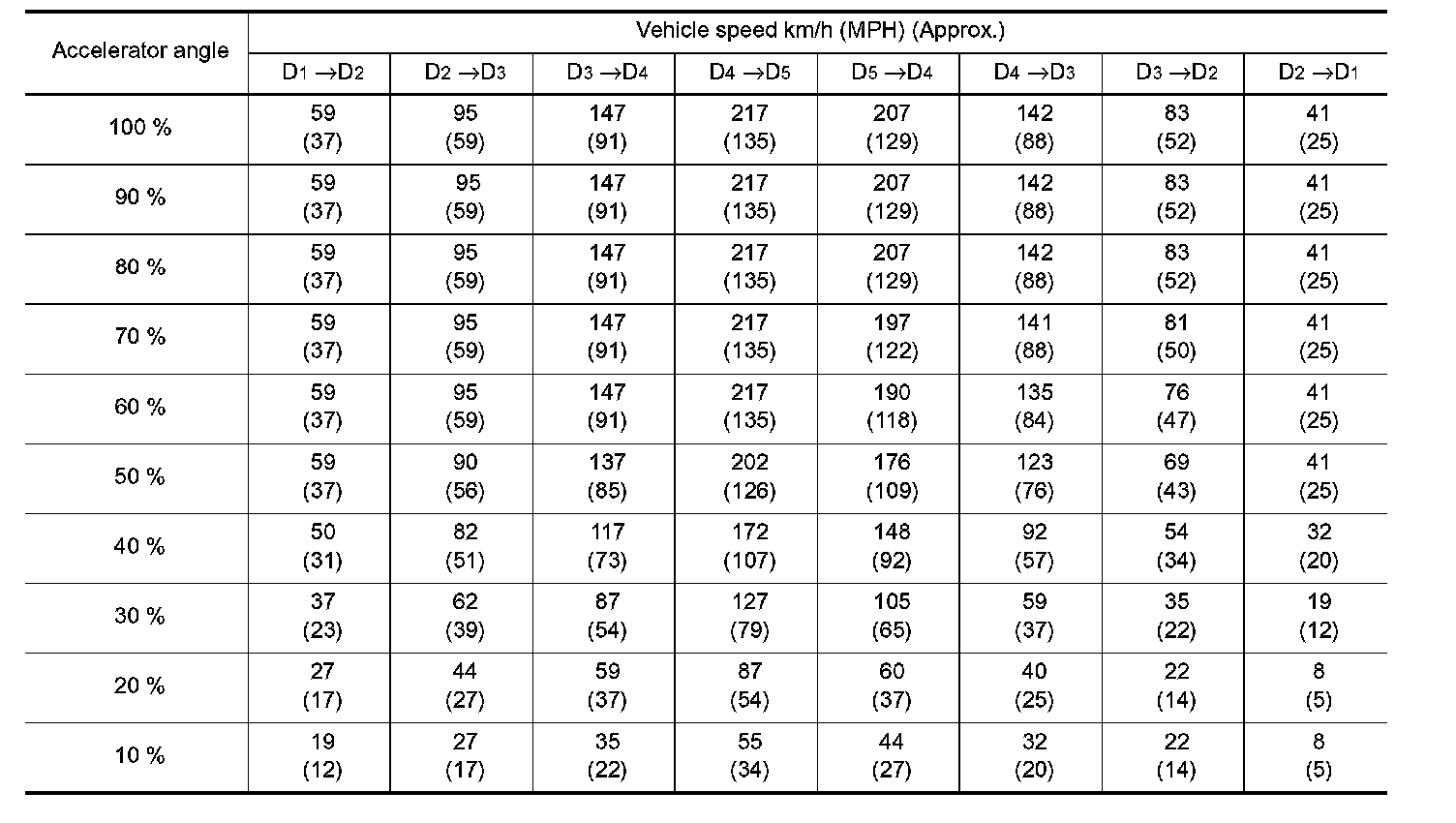

VEHICLE SPEED WHEN SHIFTING GEARS

VEHICLE SPEED WHEN SHIFTING GEARS:

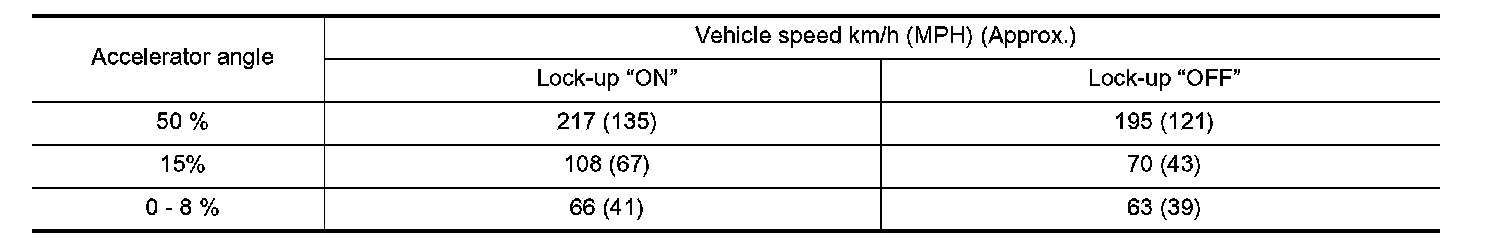

VEHICLE SPEED WHEN PERFORMING AND RELEASING COMPLETE LOCK-UP

VEHICLE SPEED WHEN PERFORMING AND RELEASING COMPLETE LOCK-UP:

^ Lock-up vehicle speed indicates the speed in D position.
^ Perform lock-up inspection after warming up engine.
^ Lock-up vehicle speed may vary depending on the driving conditions and circumstances.

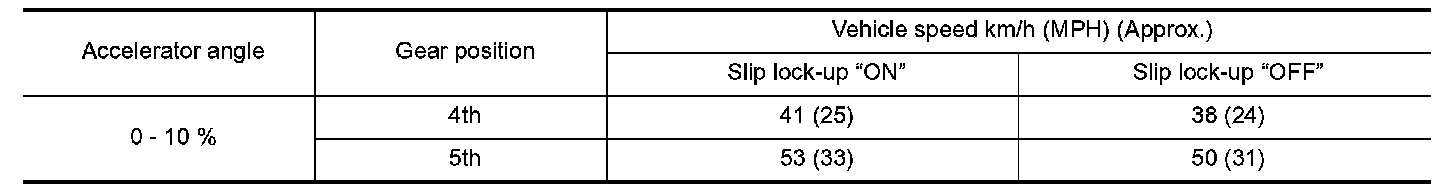

VEHICLE SPEED WHEN PERFORMING AND RELEASING SLIP LOCK-UP

VEHICLE SPEED WHEN PERFORMING AND RELEASING SLIP LOCK-UP:

^ Slip lock-up vehicle speed indicated the speed in D position.
^ Perform lock-up inspection after warming up engine.
^ Slip lock-up vehicle speed may vary depending on the driving conditions and circumstances.
