Oil Pan, Engine

Oil Pan








Install the upper oil pan.
Tighten upper oil pan bolts in the order as shown.
Wait at least 30 minutes before refilling the engine with oil.

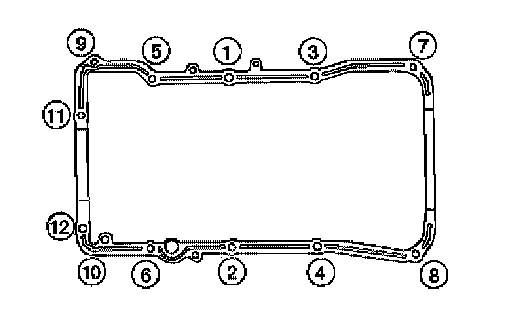

Install the lower oil pan. Tighten the lower oil pan bolts in order as shown.
Wait at least 30 minutes before refilling the engine with oil.
