Intake Manifold

Intake Manifold

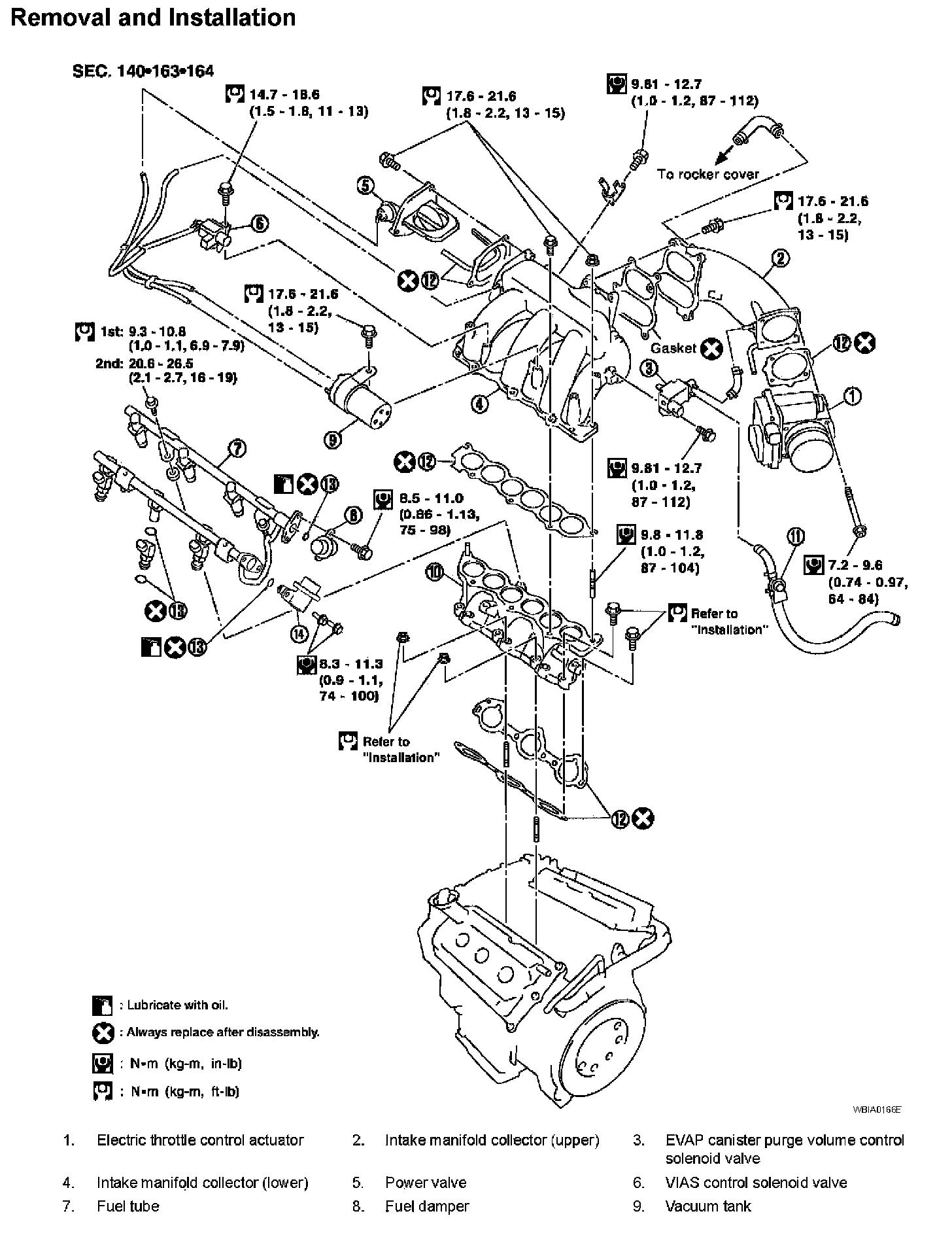

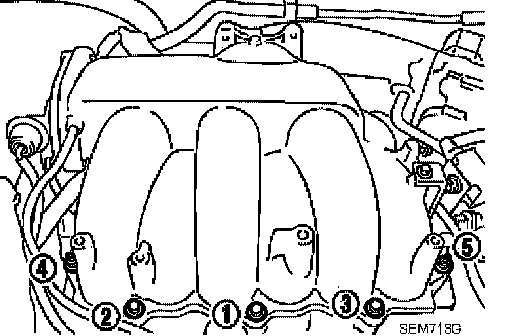

^ Install intake manifold bolts in two stages in the numerical order as shown.
Stage 1 5 - 10 Nm (0.5 - 1.0 kg-m, 44 - 86 inch lbs.)
Stage 2 26 - 31 Nm (2.7 - 3.2 kg-m, 20 - 23 ft. lbs.)

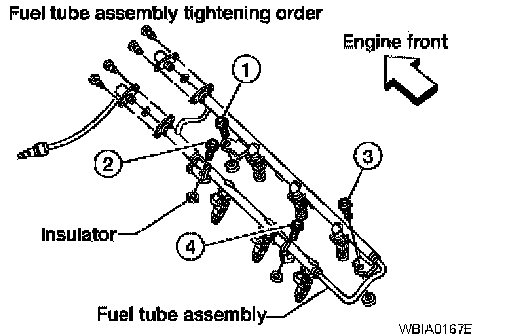

^ Seat the fuel injectors into the intake manifold with new O-rings. Tighten the fuel rail bolts as shown, in two stages:

CAUTION: Do not reuse O-rings.

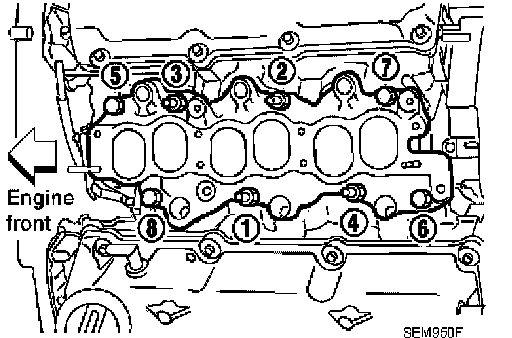

^ Install the intake manifold collector (lower) bolts in the numerical order as shown.

CAUTION: Do not reuse gaskets.

^ Tighten the bolts of the intake manifold collector (upper) and electric throttle control actuator assembly equally and diagonally to specification.
