Alternator: Service and Repair
Removal and InstallationREMOVAL
1. Disconnect the negative battery terminal.
2. Remove radiator.
3. Remove the drive belt.
4. Remove idler pulley.

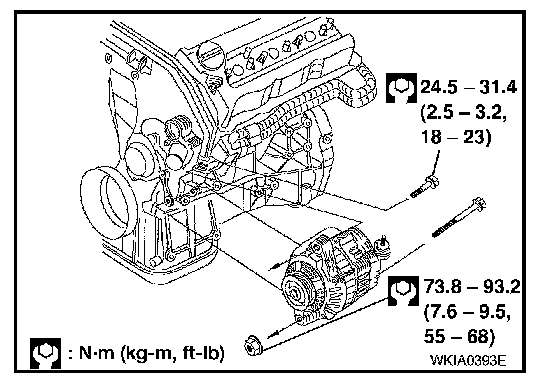

5. Remove the generator adjustable top mount, using power tools.
6. Remove the generator lower bolt and nut, using power tools.
7. Disconnect the generator harness connectors.
8. Remove the generator upper bolt, using power tools.
9. Remove the generator.
INSTALLATION
Installation is in the reverse order of removal.
- After installation adjust drive belt refer to "Checking Drive Belts" .
