Ignition Switch: Testing and Inspection

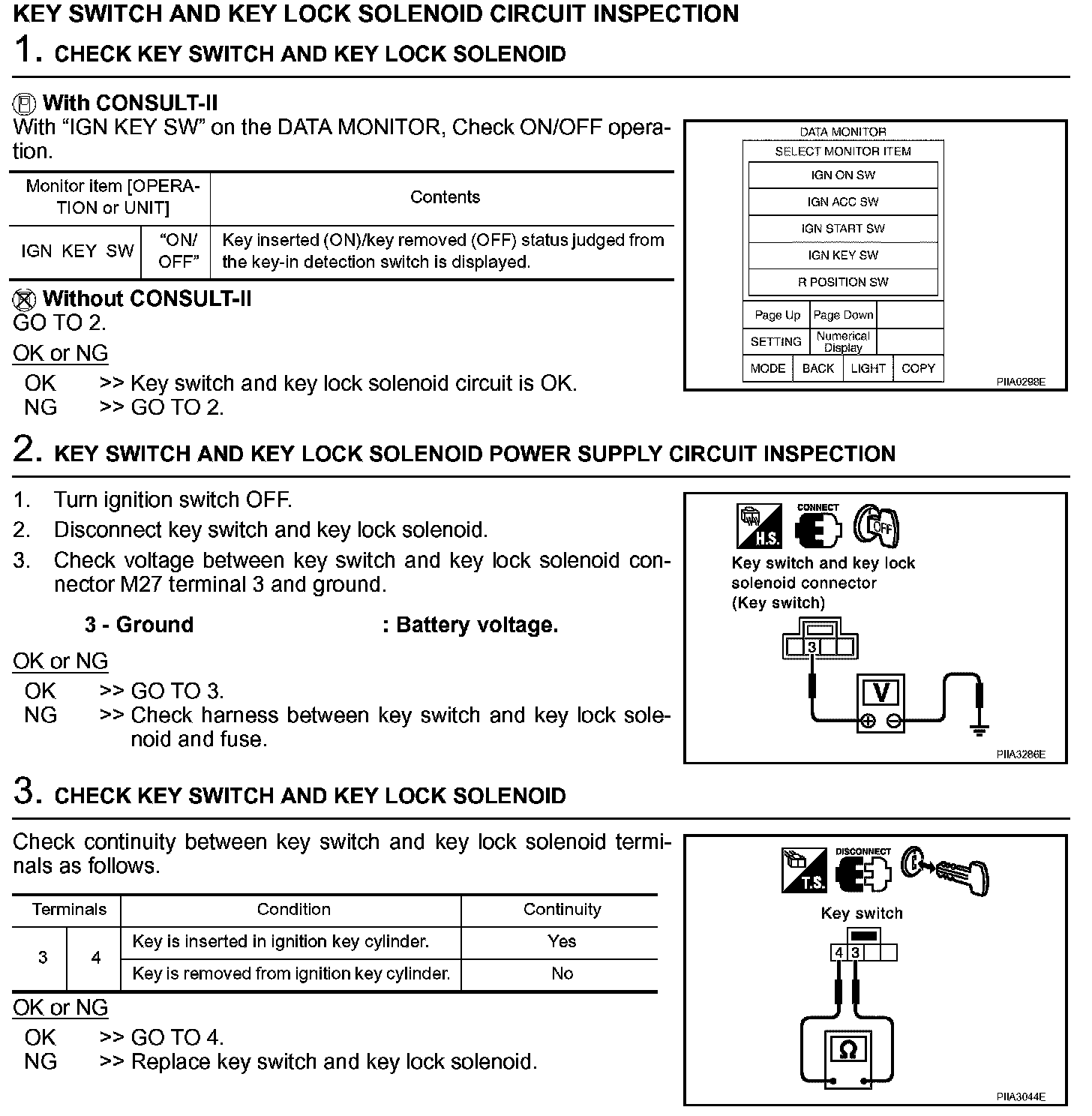

Key Switch And Key Lock Solenoid Circuit Inspection (Steps 1 - 3):

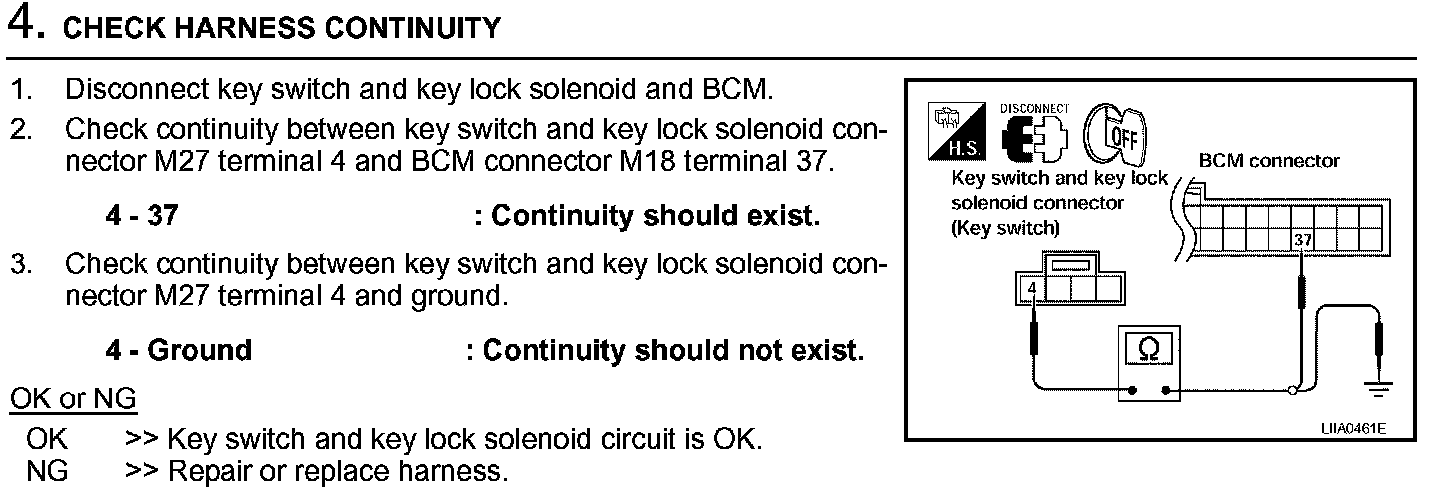

Key Switch And Key Lock Solenoid Circuit Inspection (Step 4):
