Neutral Safety Switch: Testing and Inspection

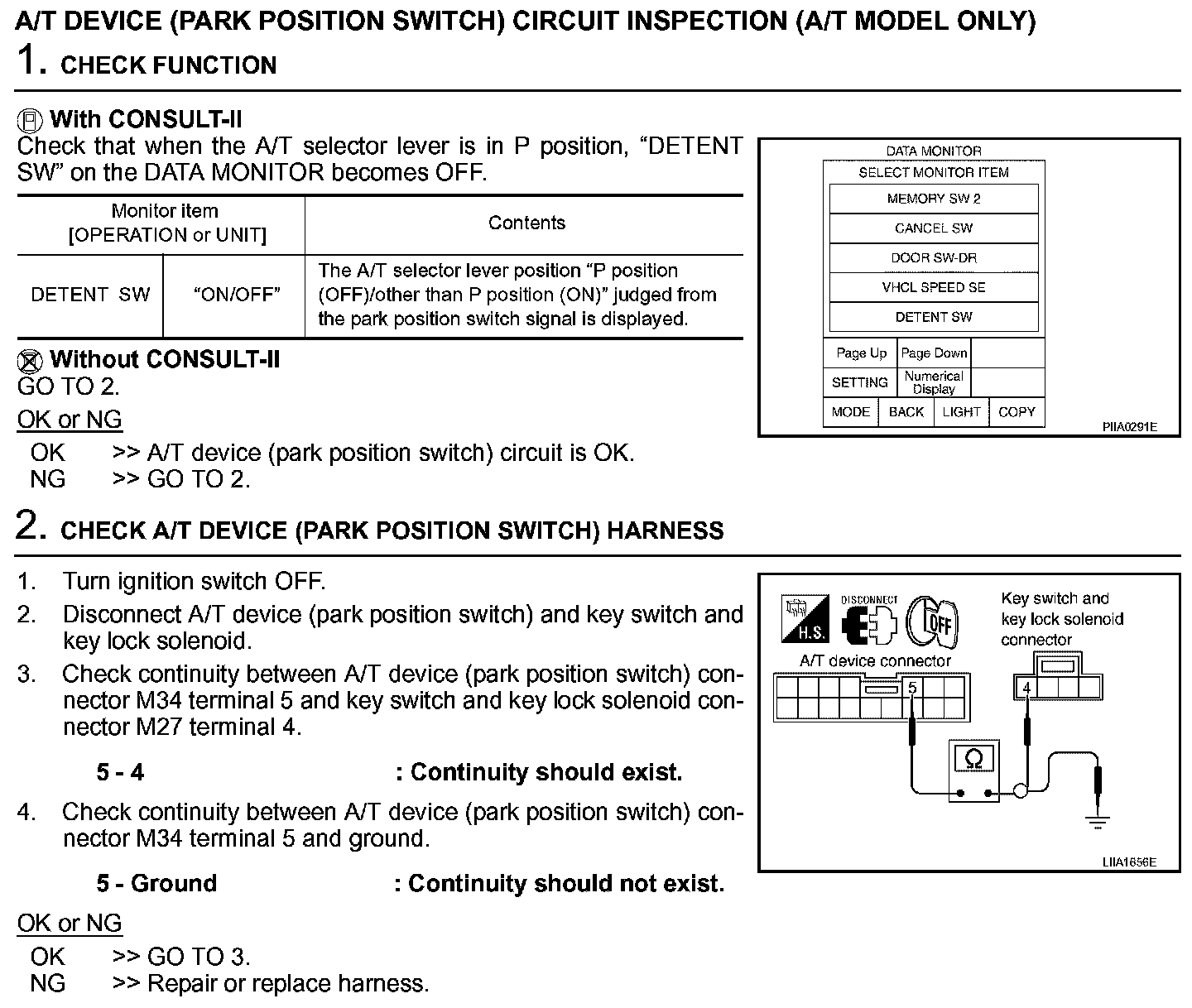

A/T Device (PARK POSITION SWITCH) Circuit Inspection (A/T Model Only) (Steps 1 - 2):

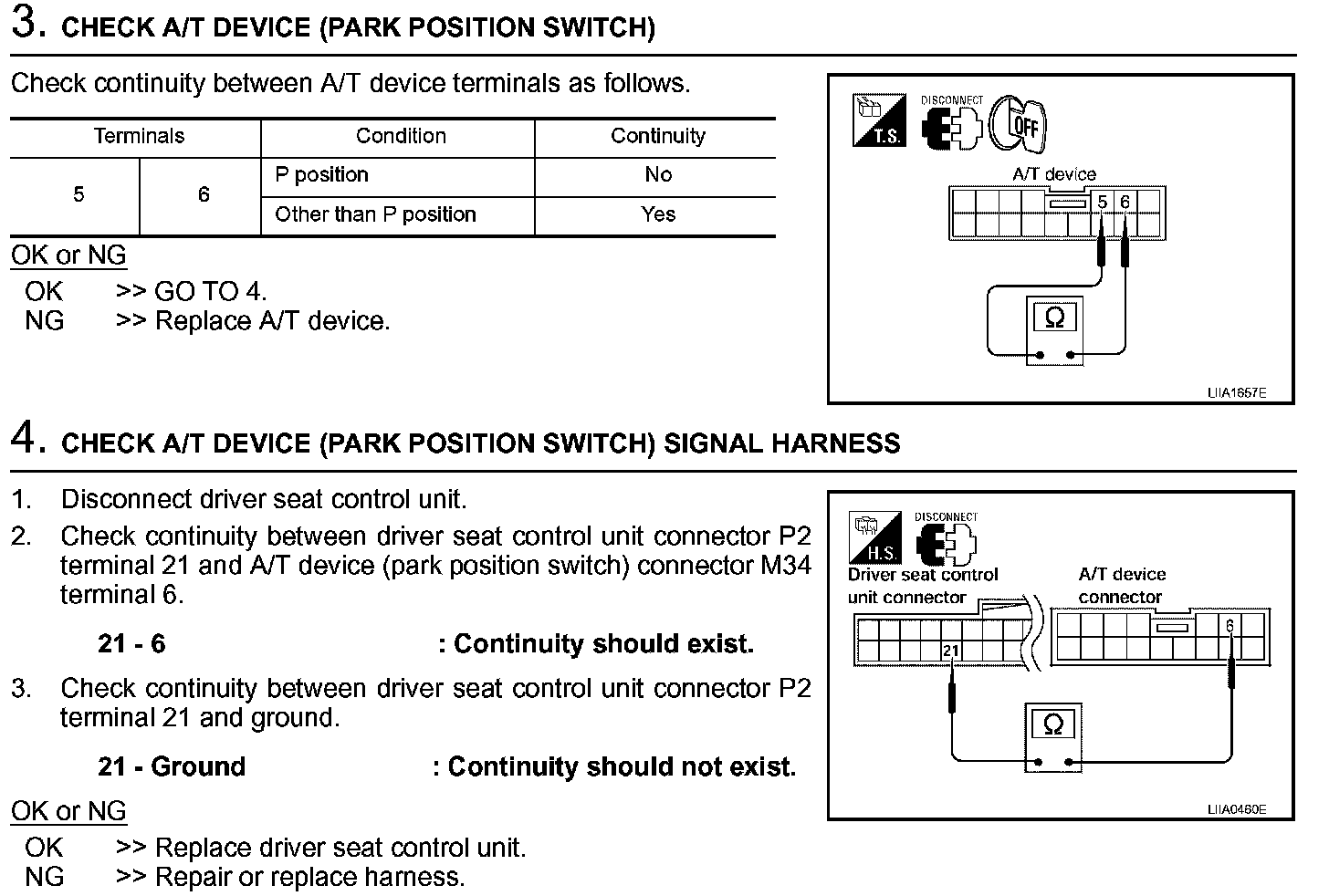

A/T Device (PARK POSITION SWITCH) Circuit Inspection (A/T Model Only) (Steps 3 - 4):
