Combination Switch: Service and Repair

COMBINATION SWITCH




Replacement
For removal and installation of spiral cable, refer to Clockspring Assembly/Spiral Cable, Air Bag.

- Each switch can be replaced without removing switch base.




- To remove switch base, remove switch base attaching screws.

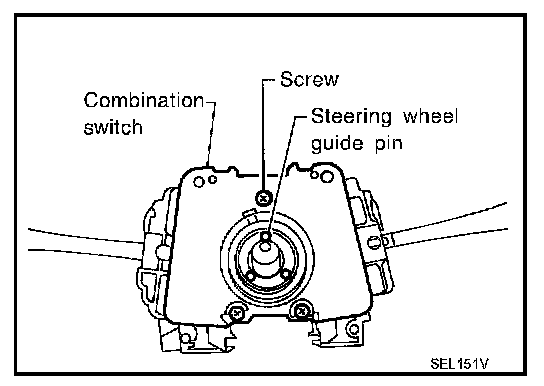

- Before installing the steering wheel, align the steering wheel guide pins with the screws which secure the combination switch as shown in the figure.
