Front Wheel Turning Angle

FRONT WHEEL TURNING ANGLE

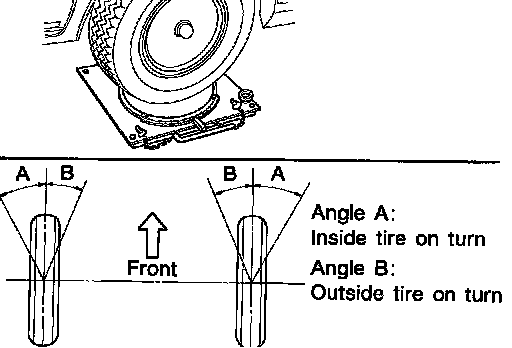

1. Set wheels in straight-ahead position. Then move vehicle forward until front wheels rest on turning radius gauge properly.
2. Rotate steering wheel all the way right and left; measure turning angle. Do not hold the steering wheel on full lock for more than 15 seconds.
Wheel turning angle: Refer to "Front Wheel (Full turn) Alignment (Unladen*)". [1][2]Front Suspension
