Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value

PREPARATION

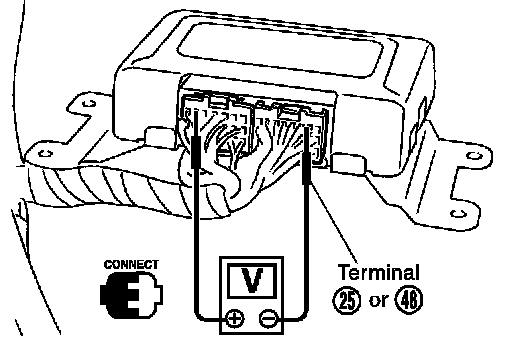

^ Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

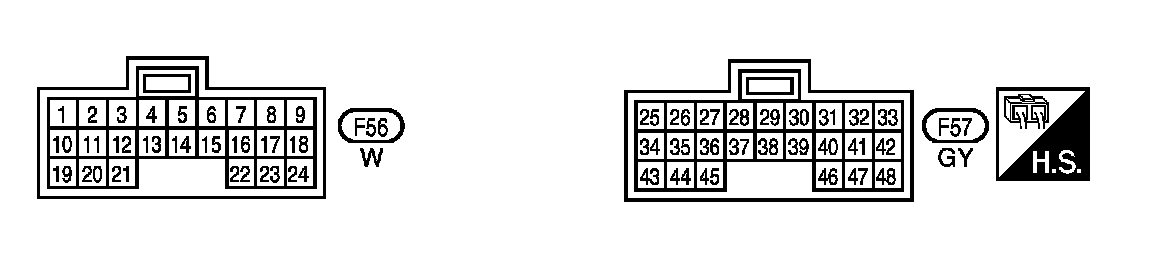

TCM Harness Connector Terminal Layout:

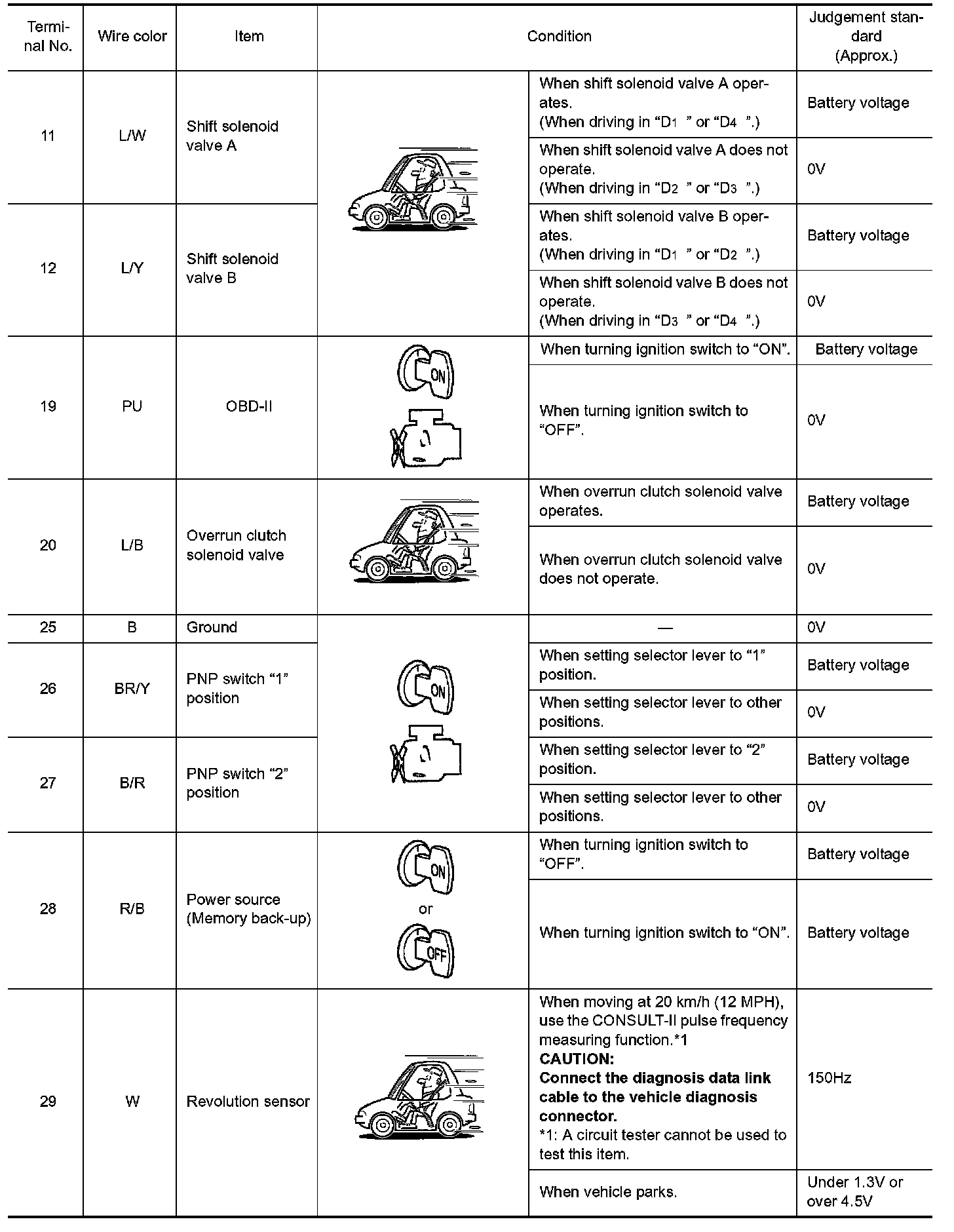

TCM Inspection Table (part 1):

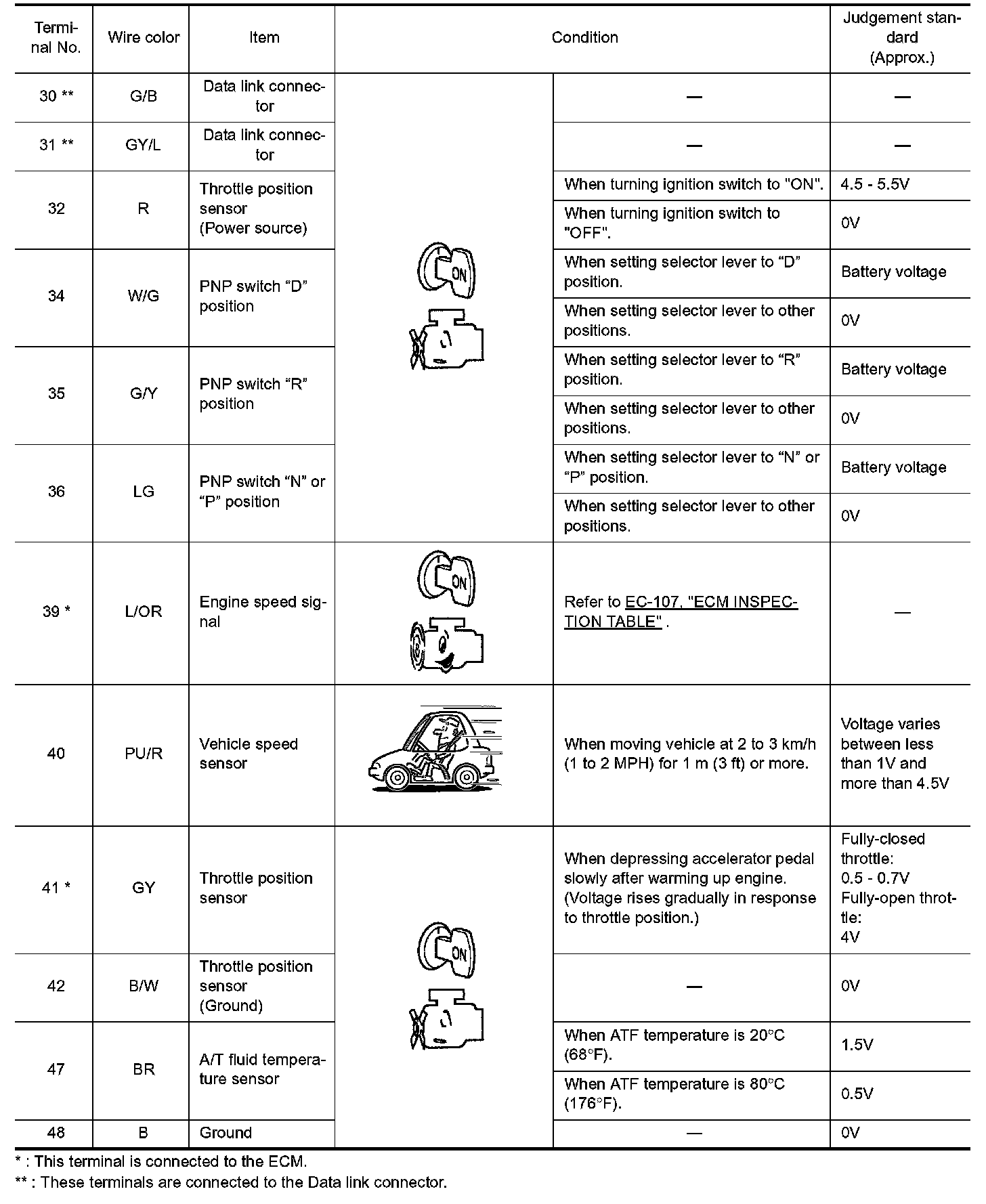

TCM Inspection Table (part 2):

TCM Inspection Table (part 3):

(Data are reference values.)
