Camshaft Bearing

Camshaft Bearing Cap

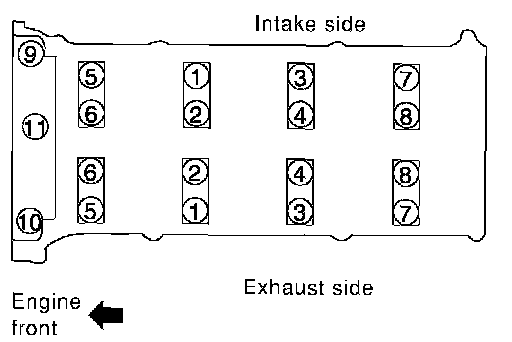

Tighten camshaft bracket bolts in four steps in the order shown.
Step 1 (bolts 9 - 11) 2.0 Nm (0.2 kg-m, 17 inch lbs.)
Step 2 (bolts 1 - 8) 2.0 Nm (0.2 kg-m, 17 inch lbs.)
Step 3 (bolts 1 - 11) 5.9 Nm (0.6 kg-m, 52 inch lbs.)
Step 4 (bolts 1 - 11) 9.0 - 11.8 Nm (0.92 - 1.2 kg-m, 80 - 104 inch lbs.)

CAUTION: After tightening camshaft bracket bolts, be sure to wipe off excessive sealant from the parts listed below.
Mating surface of rocker cover.
Mating surface of front cover, when installed without the front cover.
