Air Pressure Monitor: CONSULT-III Function
AIR PRESSURE MONITOR: CONSULT-III FunctionWORK SUPPORT MODE
ID Read
The registered ID number is displayed.
ID Regist
Refer to WT-6. ID Registration Procedure
SELF-DIAG RESULTS MODE
Operation Procedure
Refer to BCS-74, "DTC Index". Body Control System
DATA MONITOR MODE
Screen of data monitor mode is displayed. Refer to BCS-39, "Reference Value". BCM (Body Control Module)
NOTE:
- When malfunction is detected, CONSULT-III perform REAL-TIME DIAGNOSIS.
- Also, any malfunction detected while in this mode will be displayed at real time.
ACTIVE TEST MODE
NOTE: Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction may be different from that displayed on CONSULT-III.

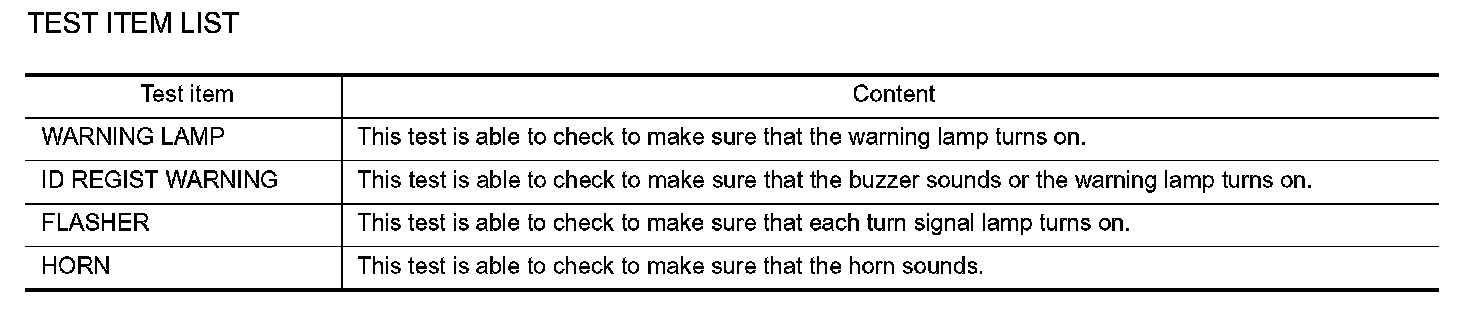

TEST ITEM LIST
