NVIS

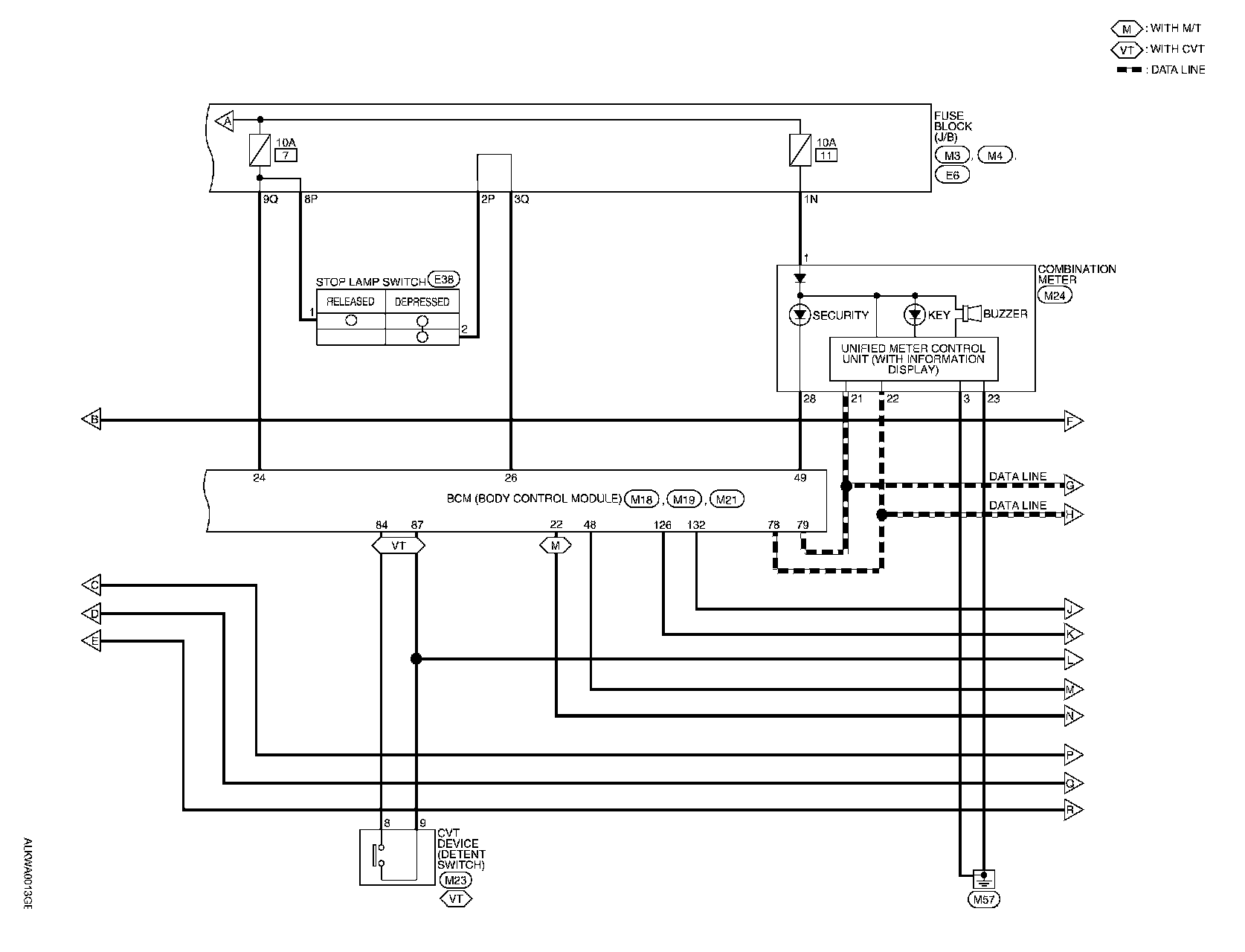

Wiring Diagram - NVIS (Part 1):

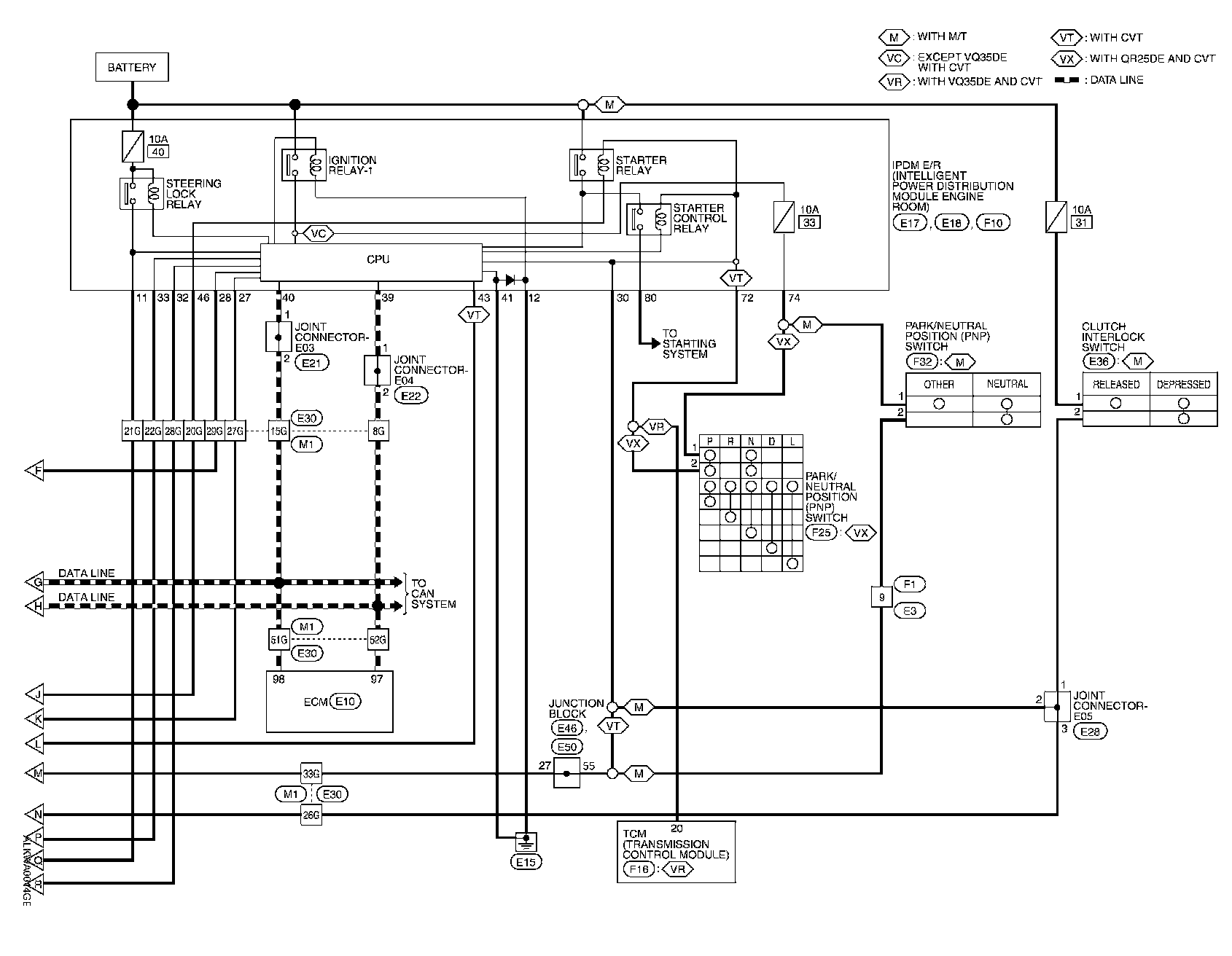

Wiring Diagram - NVIS (Part 2):

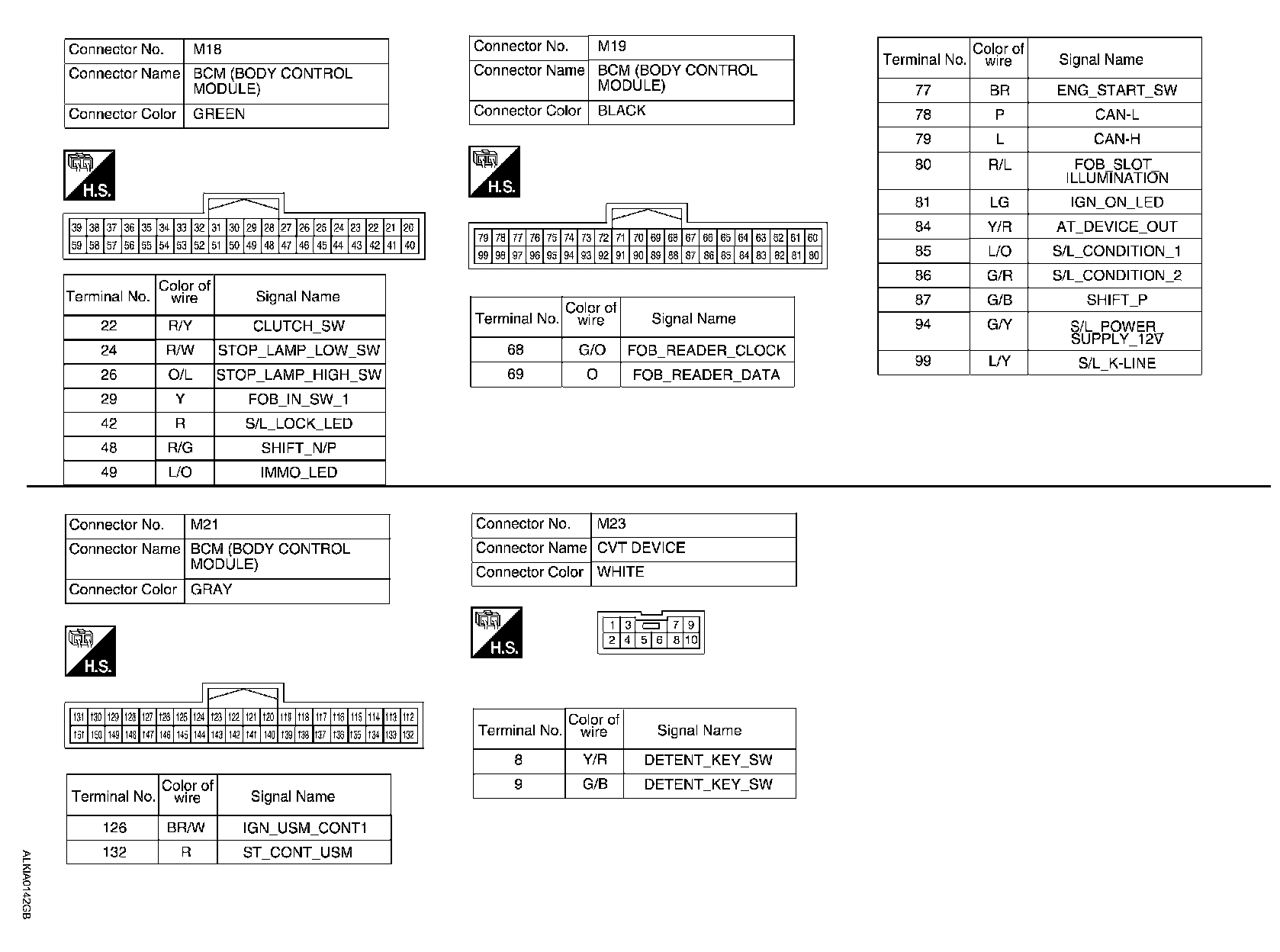

Wiring Diagram - NVIS (Part 3):

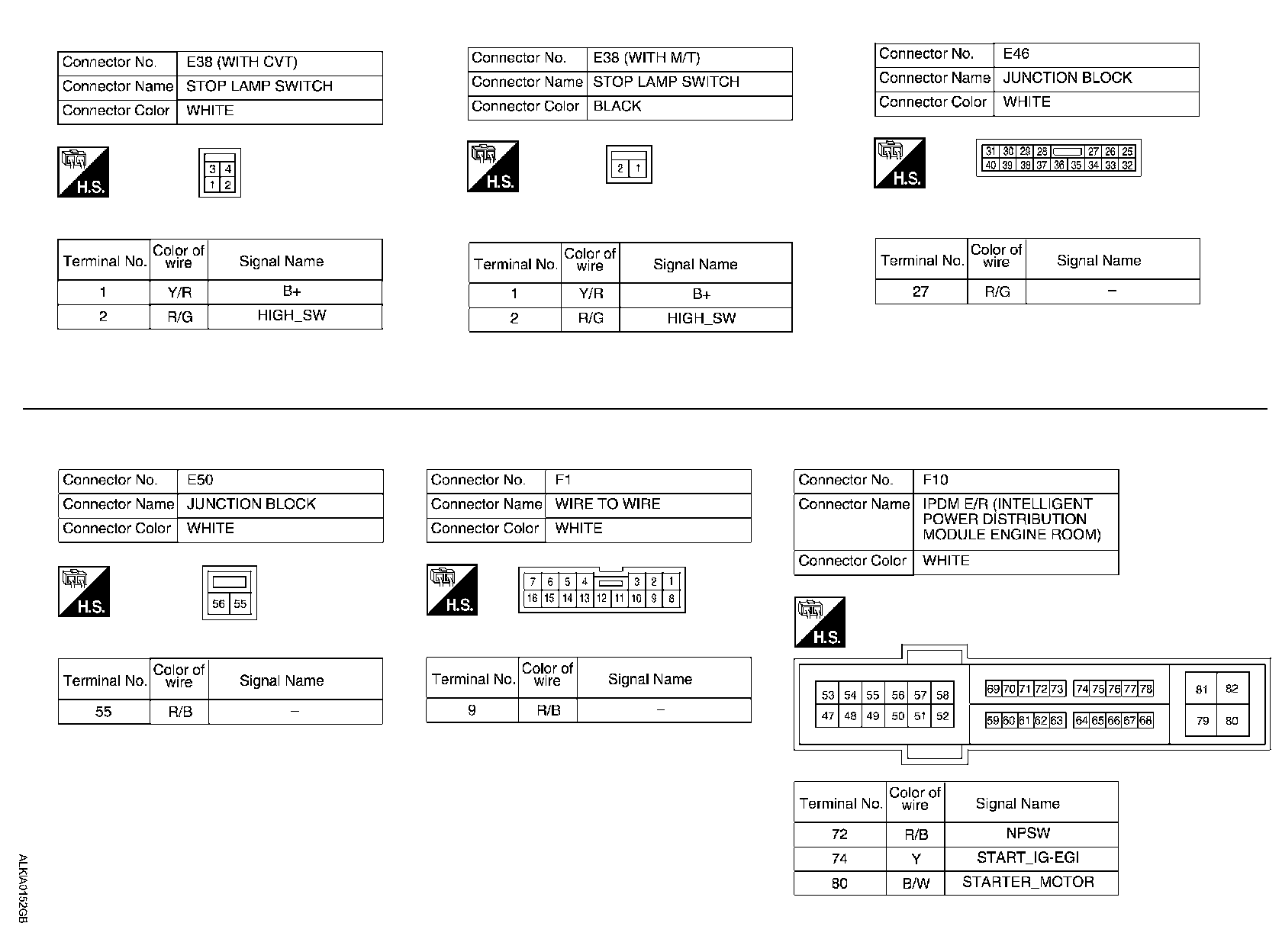

Wiring Diagram - NVIS (Part 4):

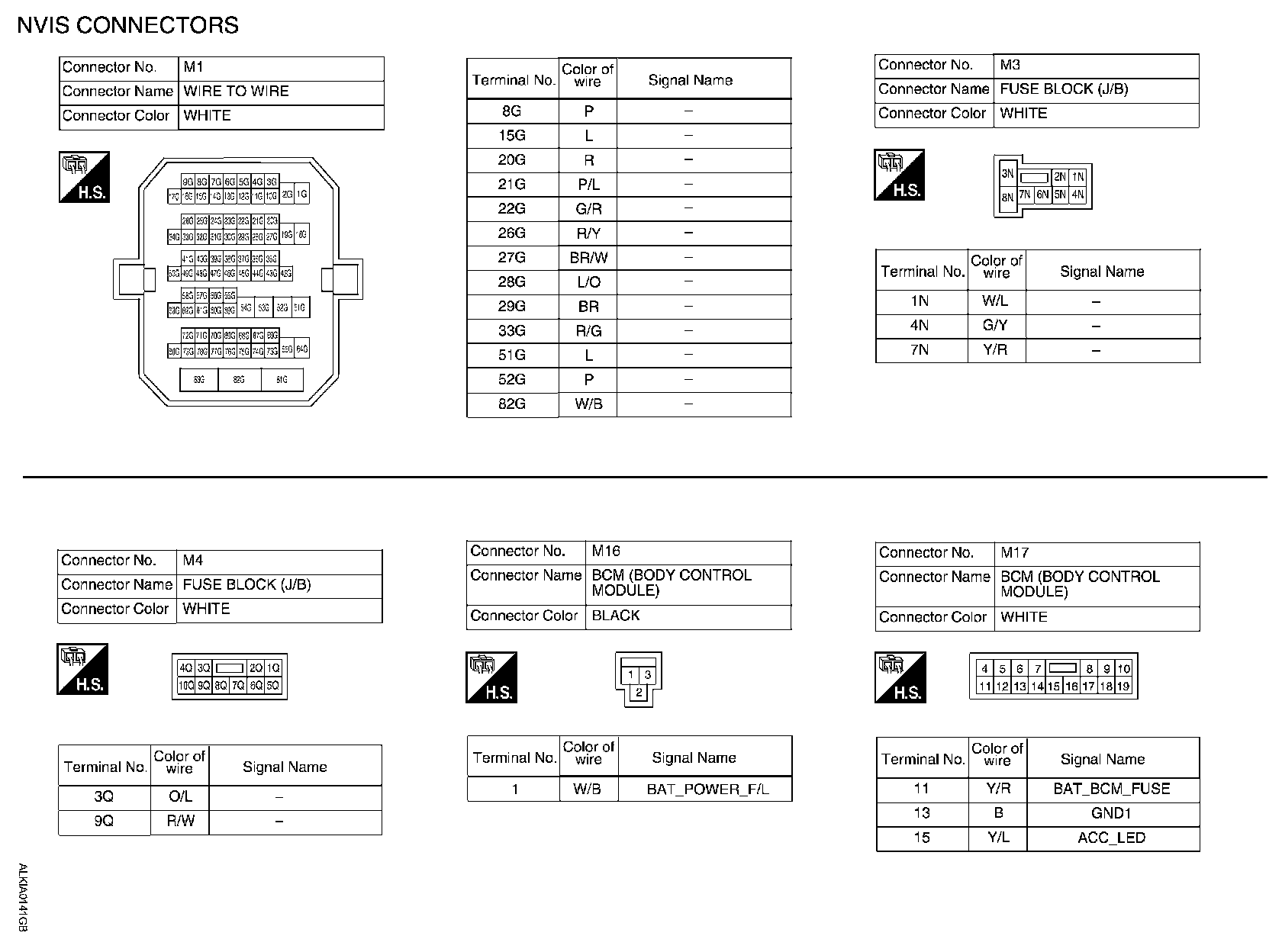

Wiring Diagram - NVIS (Part 5):

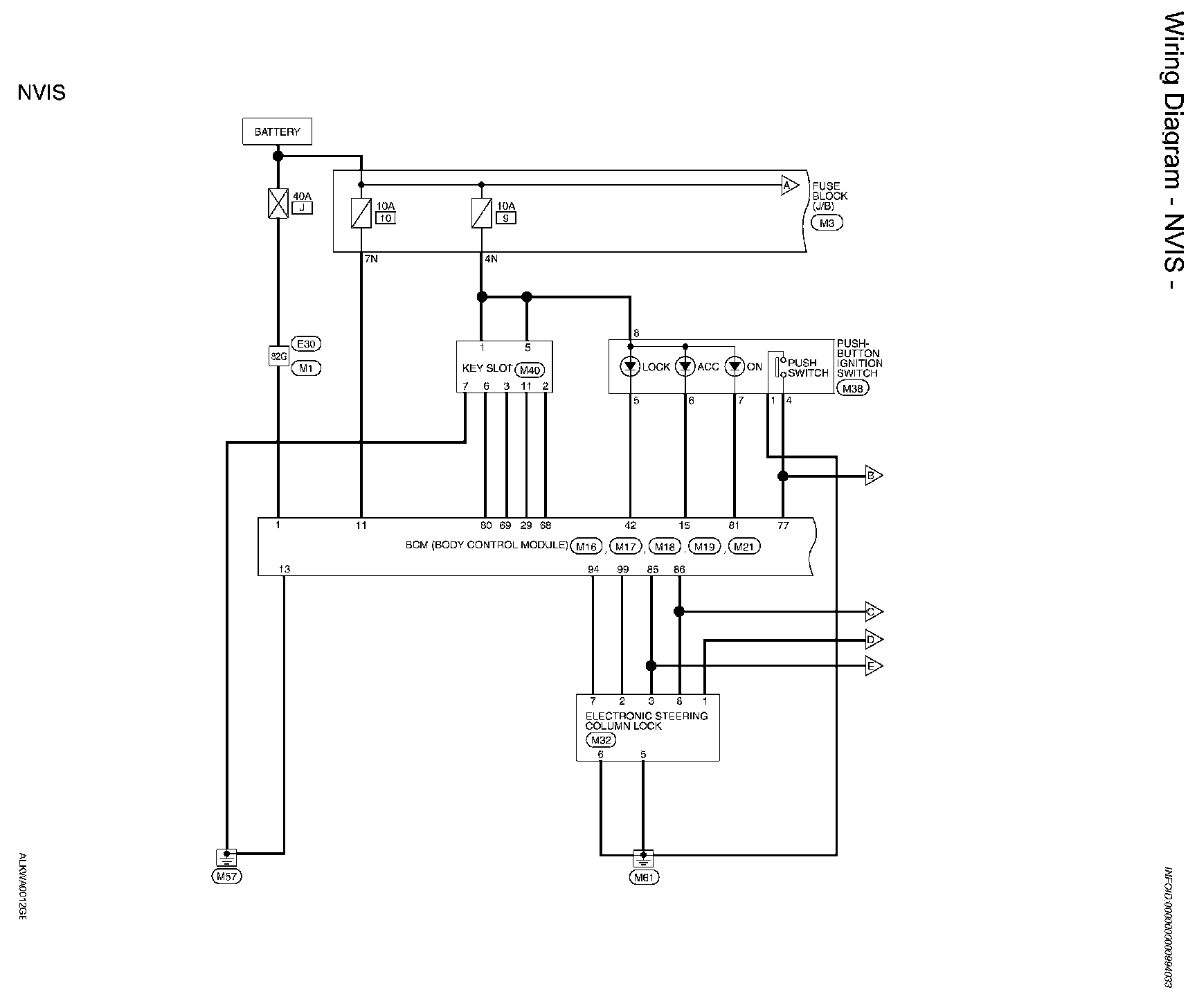

Wiring Diagram - NVIS (Part 6):

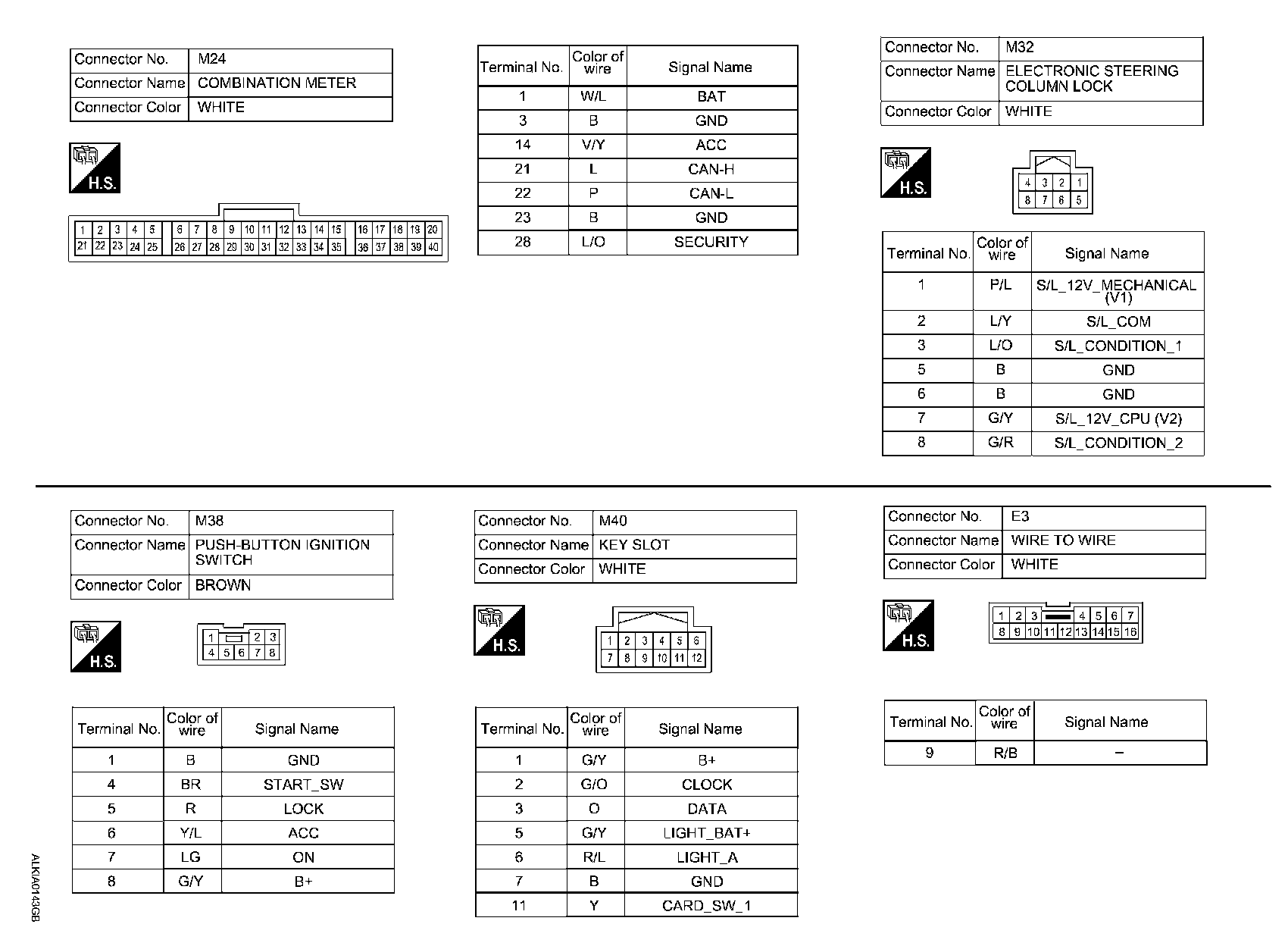

Wiring Diagram - NVIS (Part 7):

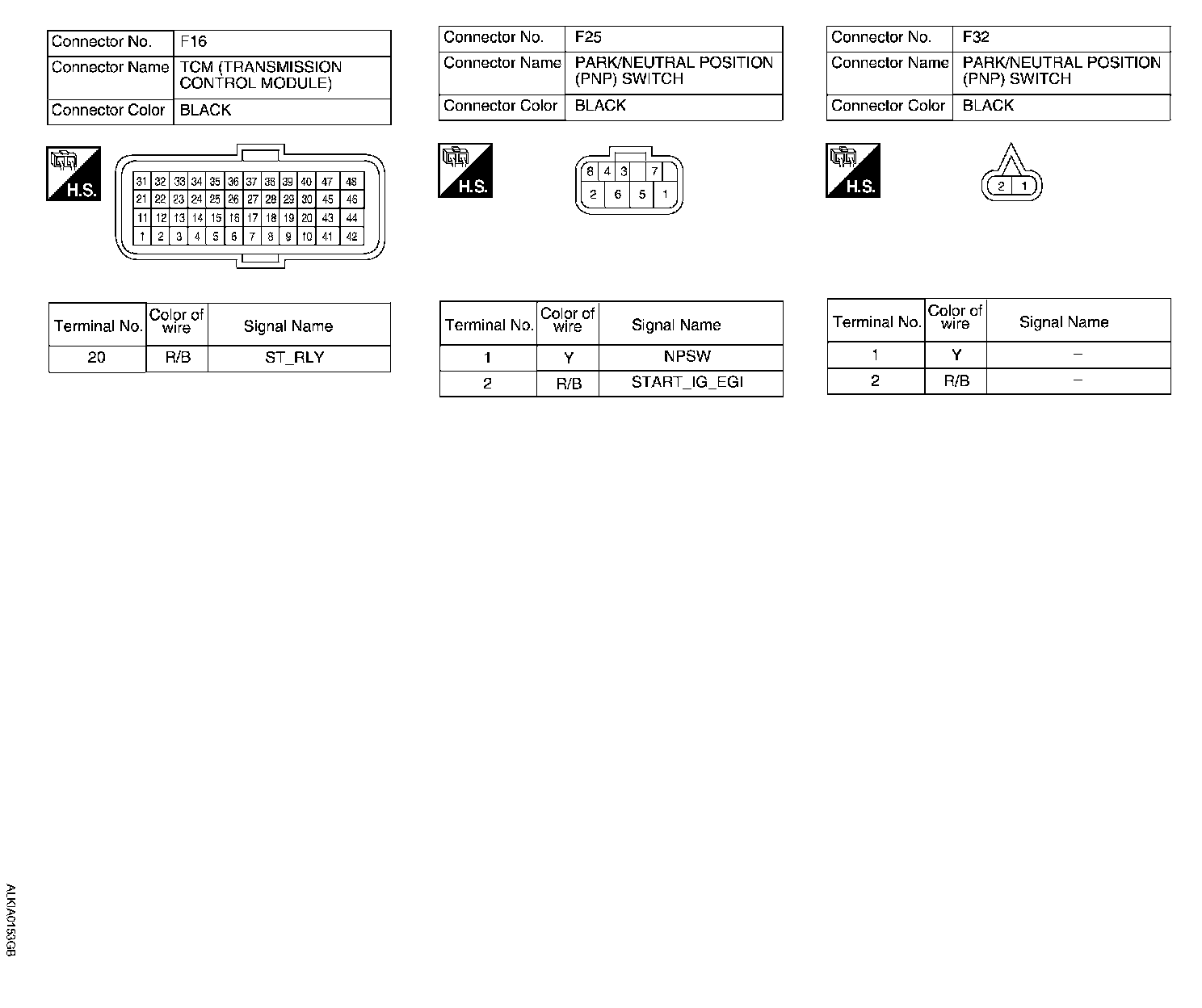

Wiring Diagram - NVIS (Part 8):

Wiring Diagram - NVIS (Part 9):

Wiring Diagram - NVIS (Part 10):
