Vehicle Security System

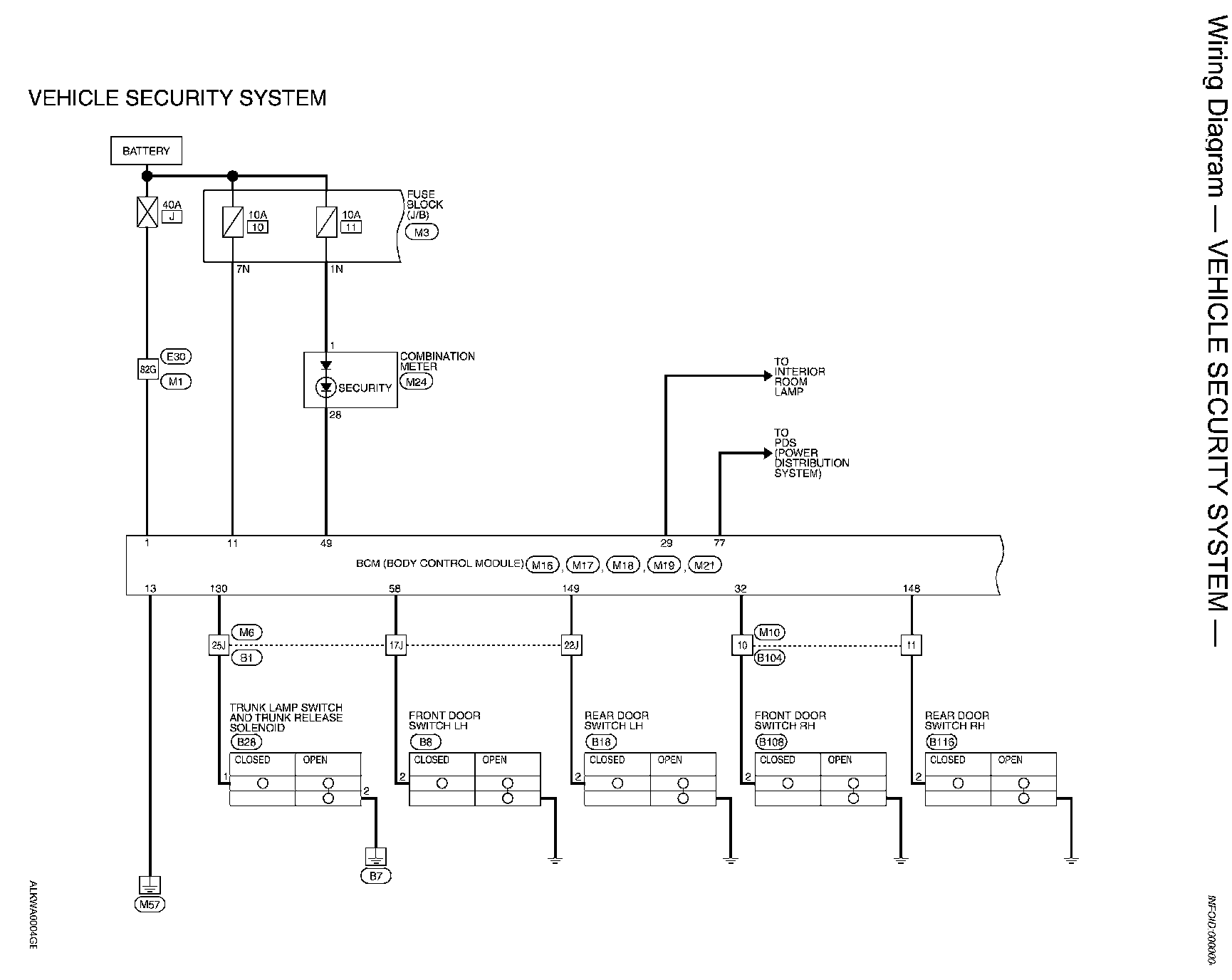

Wiring Diagram - Vehicle Security System (Part 1):

Wiring Diagram - Vehicle Security System (Part 2):

Wiring Diagram - Vehicle Security System (Part 3):

Wiring Diagram - Vehicle Security System (Part 4):

Wiring Diagram - Vehicle Security System (Part 5):

Wiring Diagram - Vehicle Security System (Part 6):

Wiring Diagram - Vehicle Security System (Part 7):

Wiring Diagram - Vehicle Security System (Part 8):

Wiring Diagram - Vehicle Security System (Part 9):

Wiring Diagram - Vehicle Security System (Part 10):

Wiring Diagram - Vehicle Security System (Part 11):

Wiring Diagram - Vehicle Security System (Part 12):

Wiring Diagram - Vehicle Security System (Part 13):
