Body Control Systems

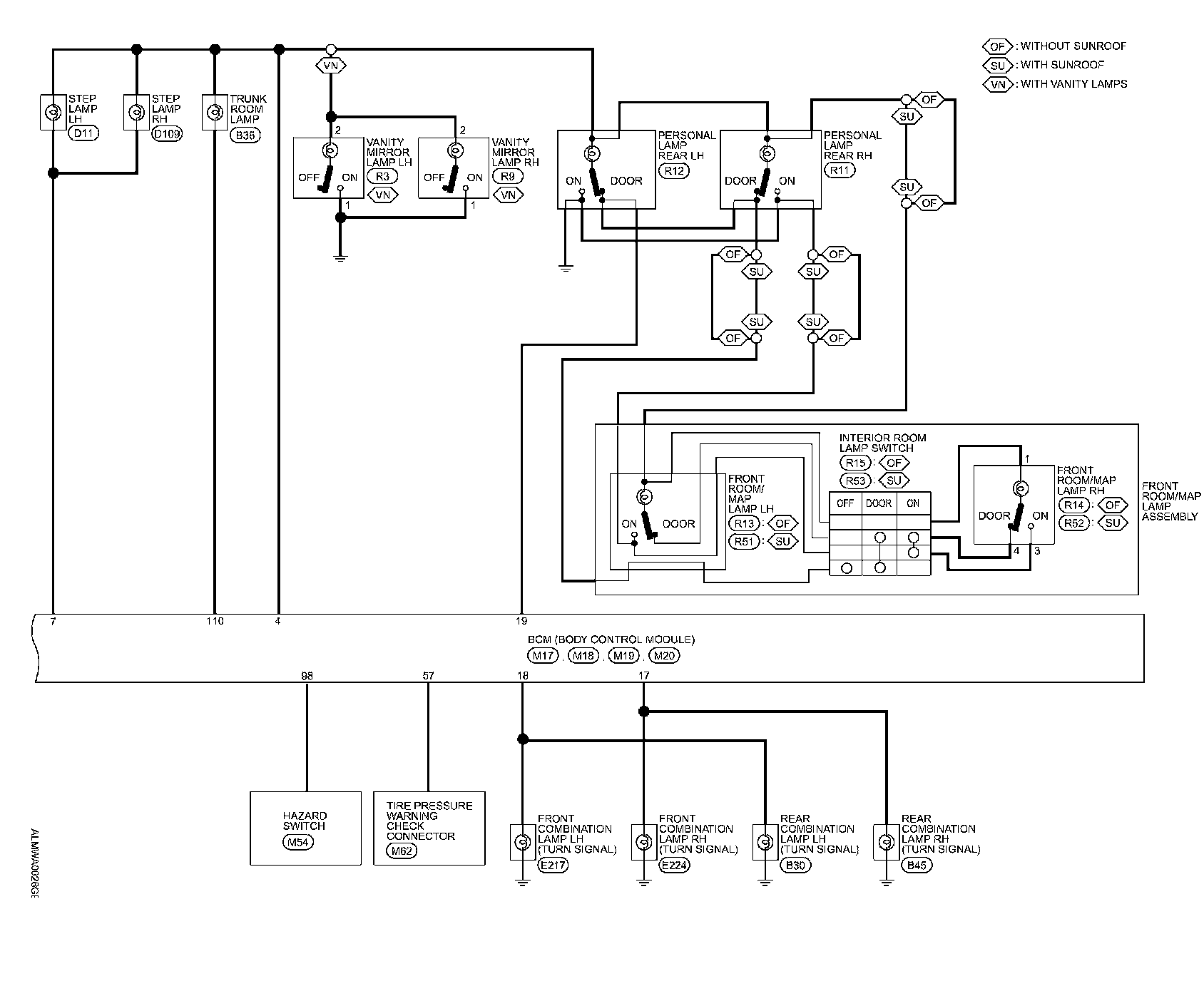

Wiring Diagram - BCM (Body Control Module) (Part 1):

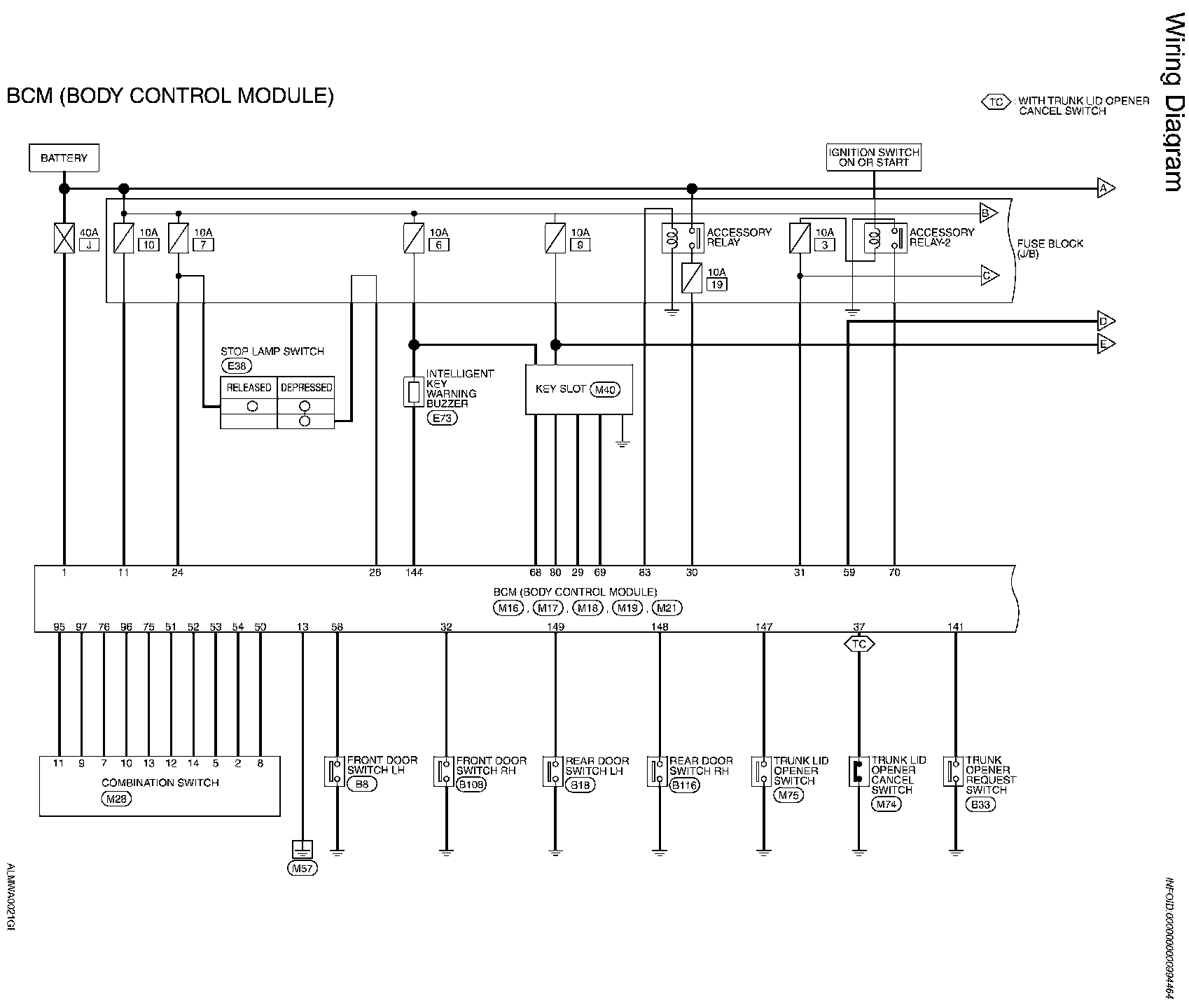

Wiring Diagram - BCM (Body Control Module) (Part 2):

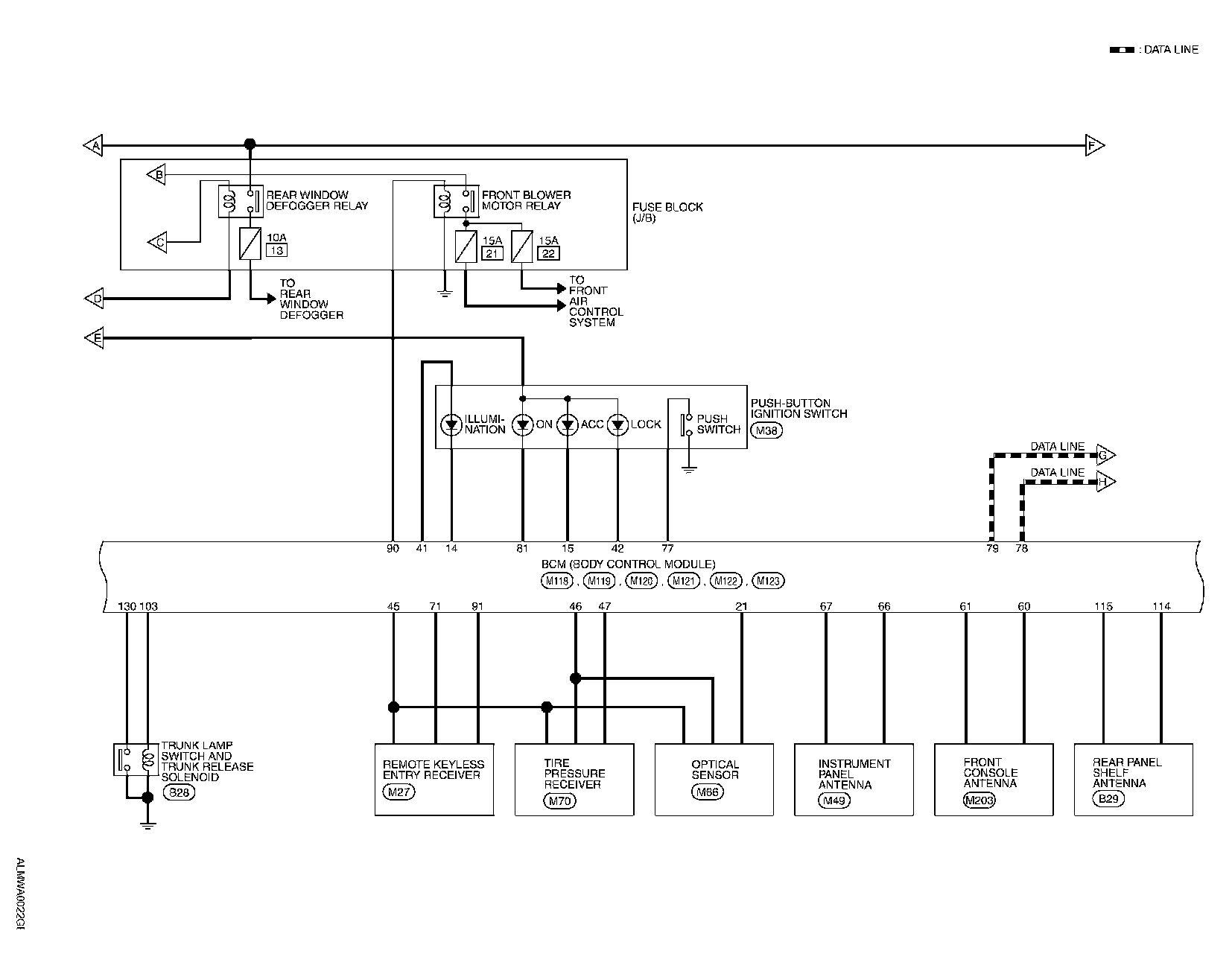

Wiring Diagram - BCM (Body Control Module) (Part 3):

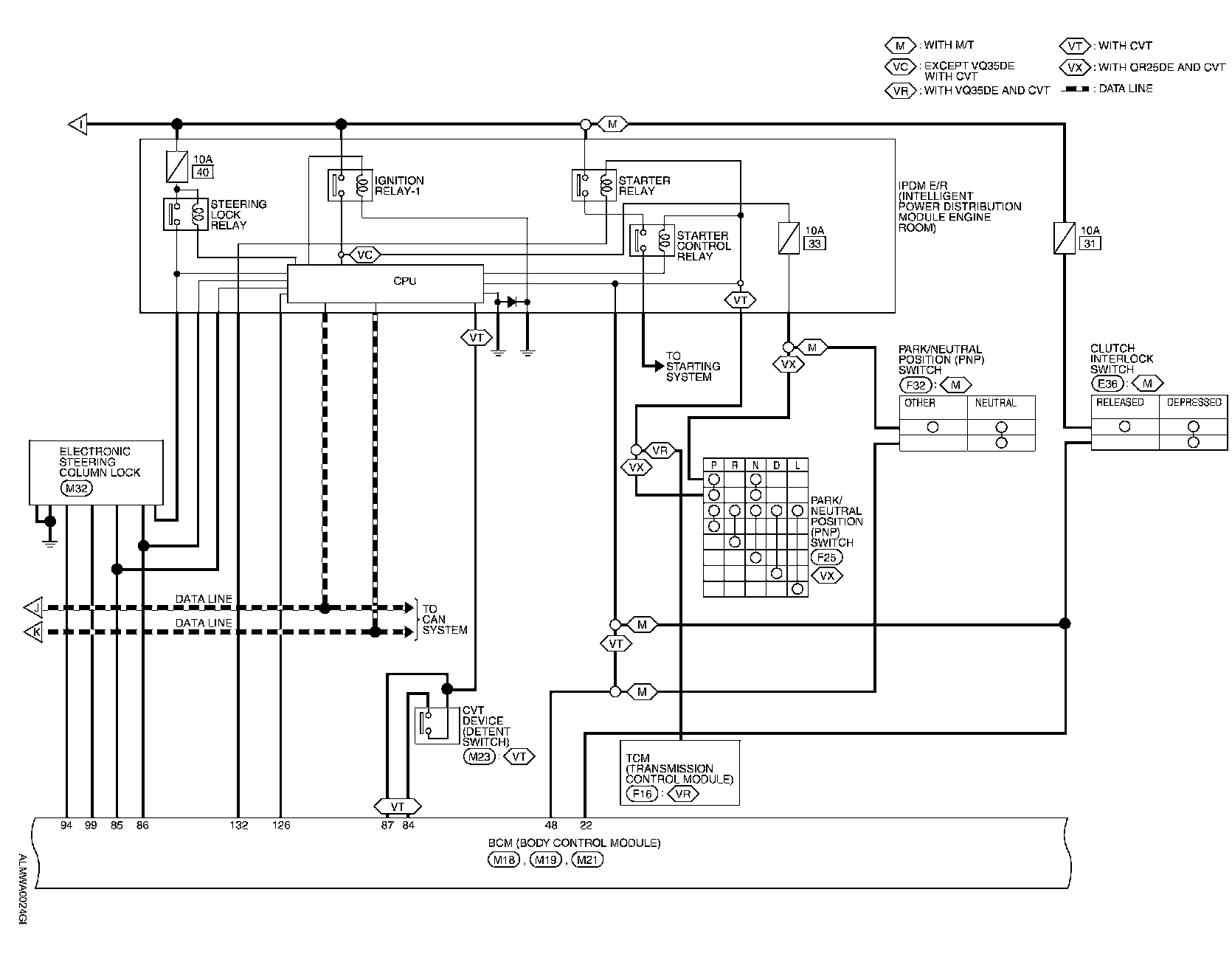

Wiring Diagram - BCM (Body Control Module) (Part 4):

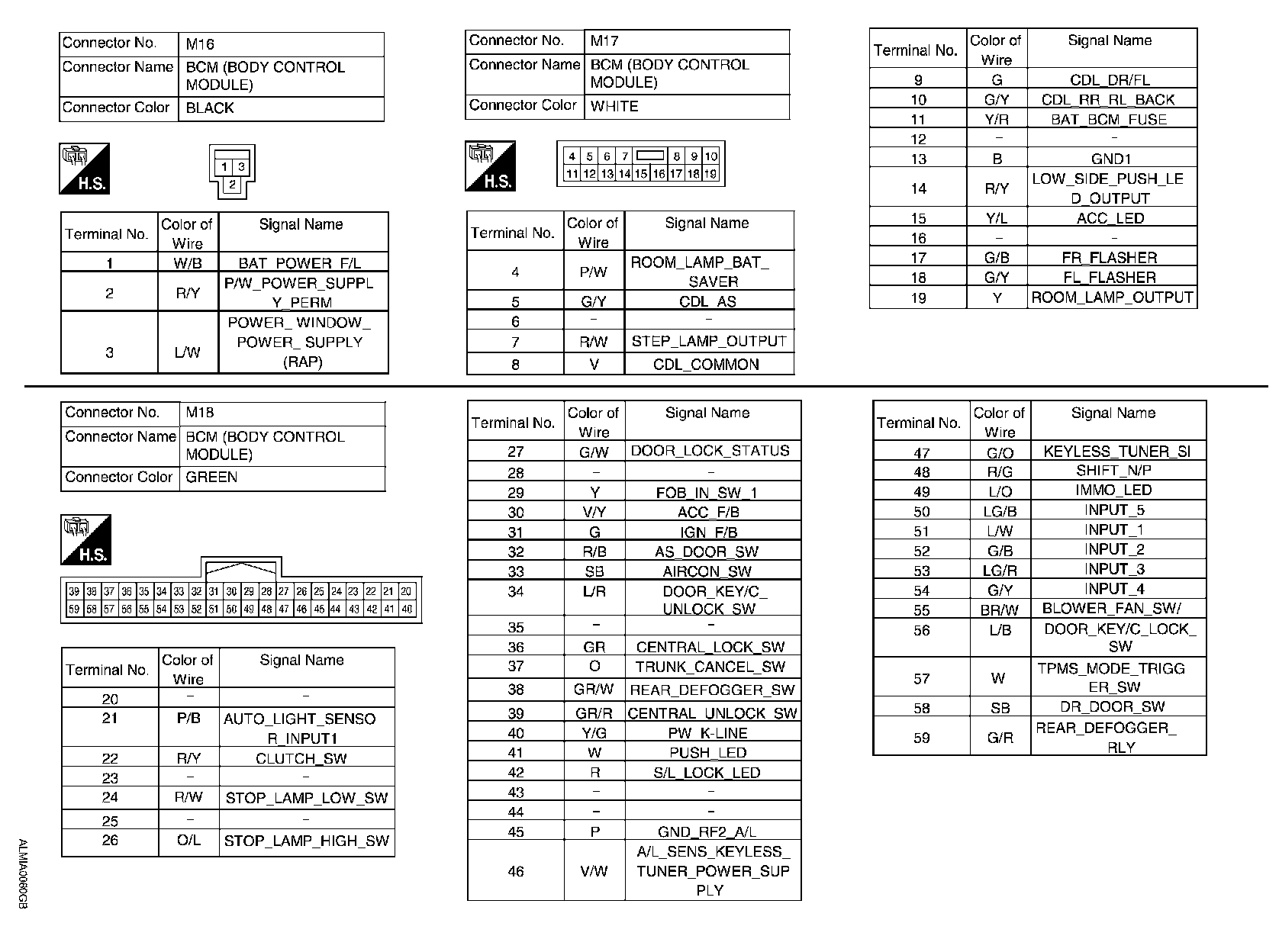

Wiring Diagram - BCM (Body Control Module) (Part 5):

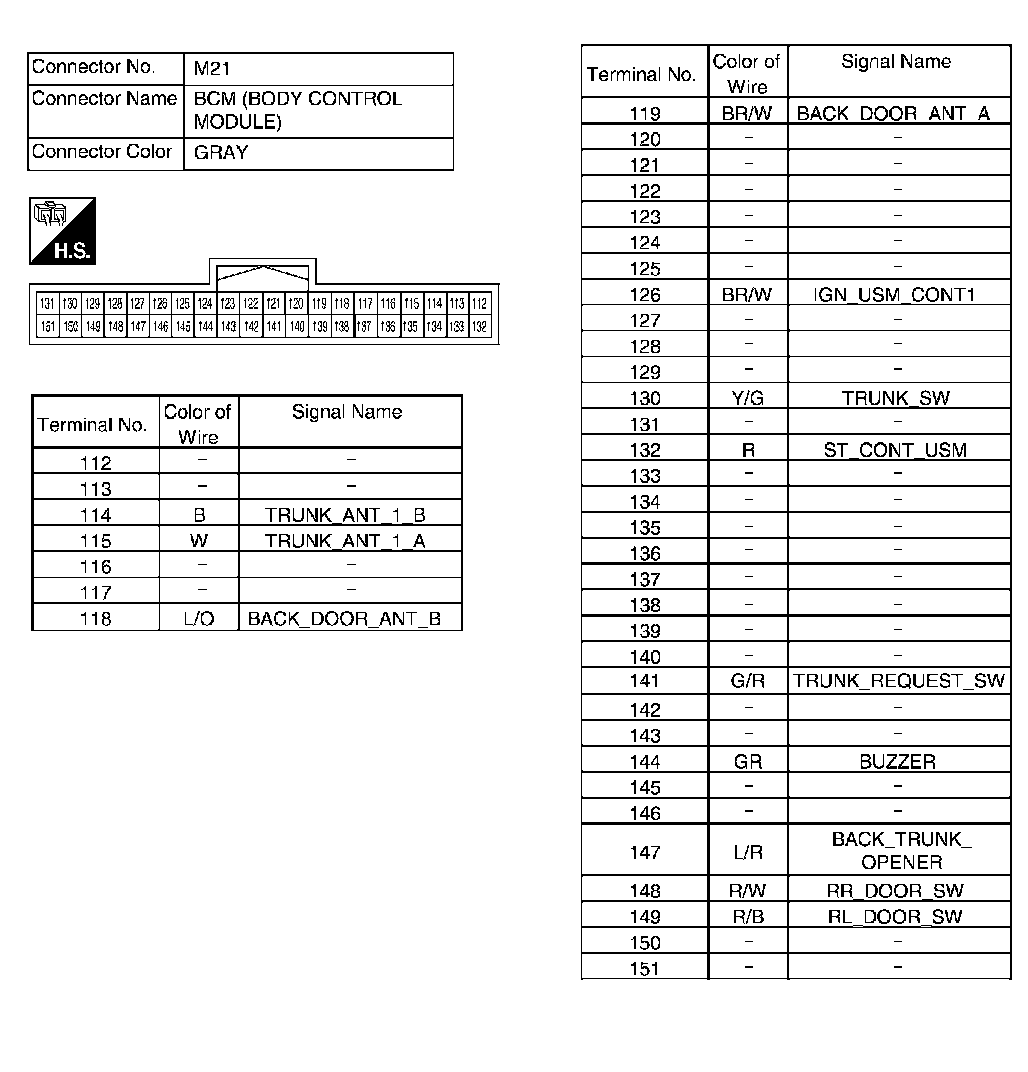

Wiring Diagram - BCM (Body Control Module) (Part 6):

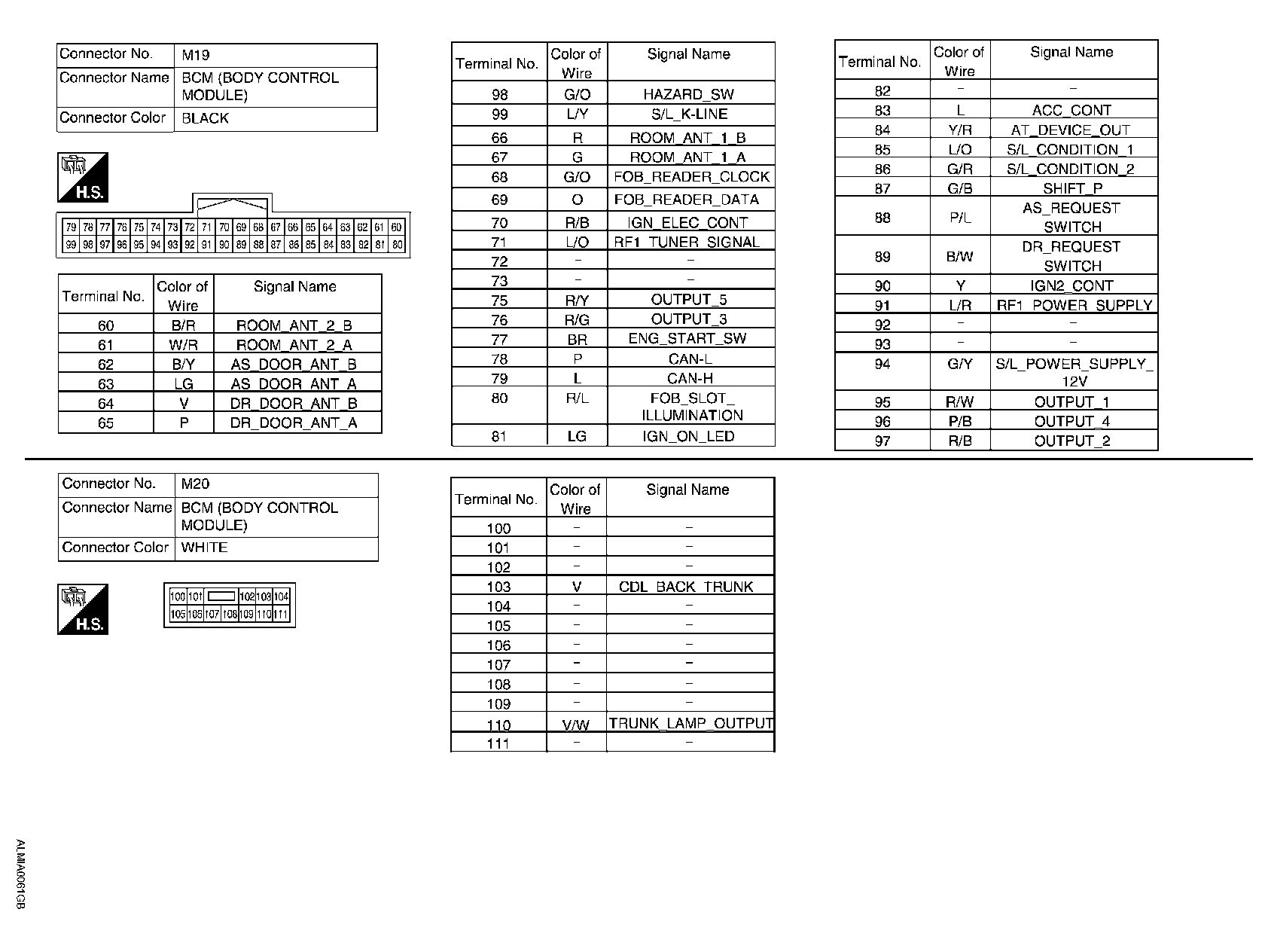

Wiring Diagram - BCM (Body Control Module) (Part 7):

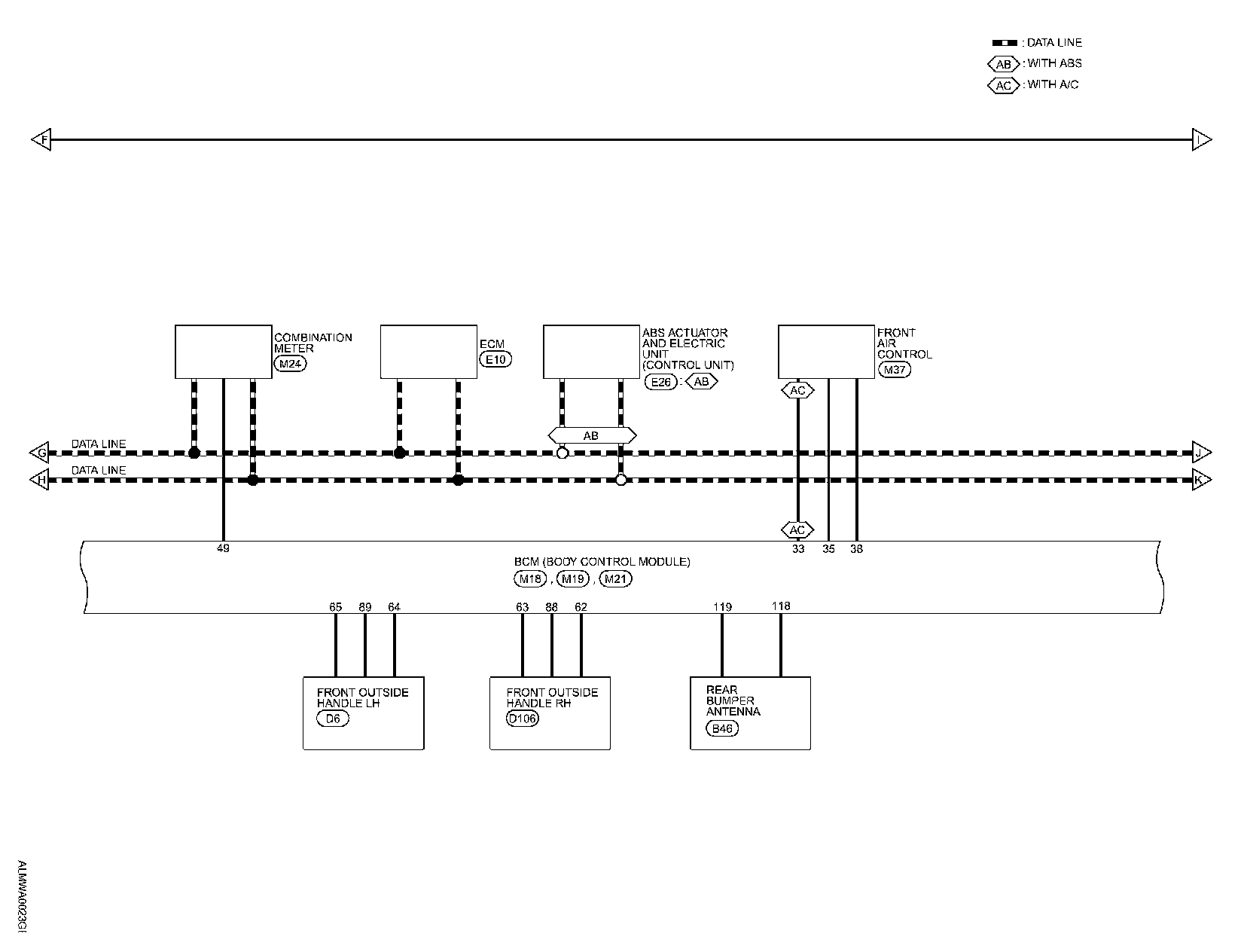

Wiring Diagram - BCM (Body Control Module) (Part 8):

Wiring Diagram - BCM (Body Control Module) (Part 9):
