Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT SENSOR

Removal and Installation




REMOVAL

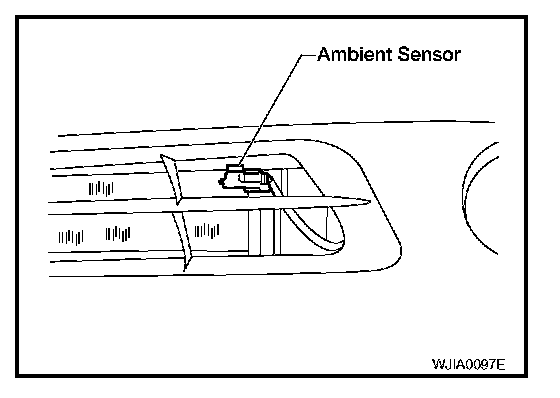

1. From under the vehicle, disconnect the ambient sensor connector.
2. Release the ambient sensor clip and remove the ambient sensor.

INSTALLATION
Installation is in the reverse order of removal.
