Map Light Bulb: Service and Repair
MAP LAMPBulb Replacement
1. Disconnect the negative battery cable.

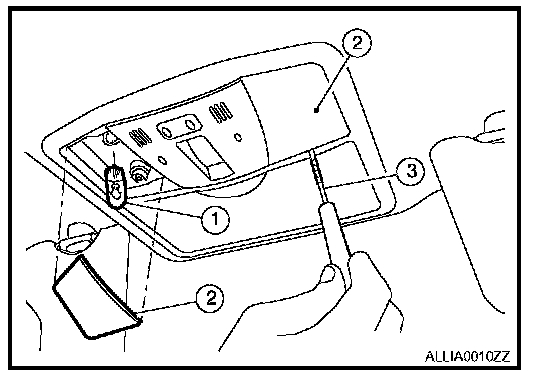

2. Using a suitable tool (3), remove map lamp lens (2) RH/LH.
3. Pull bulb (1) straight out to remove.
Map lamp bulb : 12 V - 8 W
Bulb Replacement
1. Disconnect the negative battery cable.
2. Using a suitable tool (3), remove map lamp lens (2) RH/LH.
3. Pull bulb (1) straight out to remove.
Map lamp bulb : 12 V - 8 W
