Map Light: Service and Repair

ON-VEHICLE REPAIR

INTERIOR ROOM LAMP

Removal and Installation

MAP LAMP

Removal
1. Disconnect the negative battery cable.

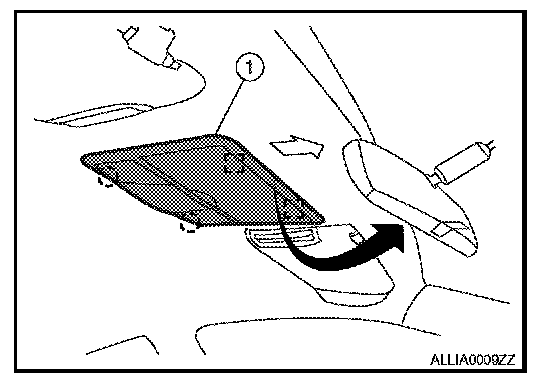

2. Release the metal clips and drop front edge of map lamp (1) away from headlining. Slide map lamp forward in vehicle to clear pawls at rear.
3. Disconnect the connectors, then remove map lamp.

Installation
Installation is in the reverse order of removal.
