CVT Models

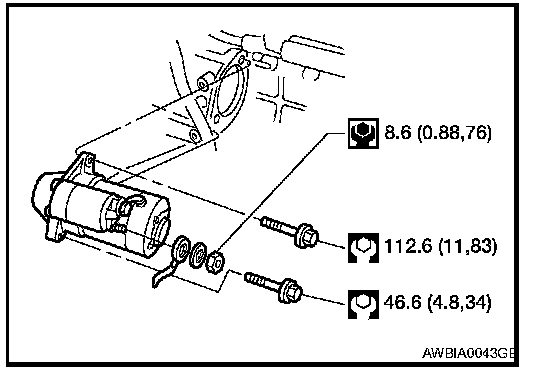

STARTER MOTOR

Removal and Installation

CVT Models

REMOVAL
1. Disconnect the negative and positive battery terminal.
2. Remove the air duct (front).
3. Remove the battery and battery tray bracket.
4. Disconnect the starter harness connectors.
5. Remove the two starter bolts, using power tools.
6. Remove the starter.

INSTALLATION




Installation is in the reverse order of removal.
