M/T Models
ON-VEHICLE REPAIRSTARTER MOTOR

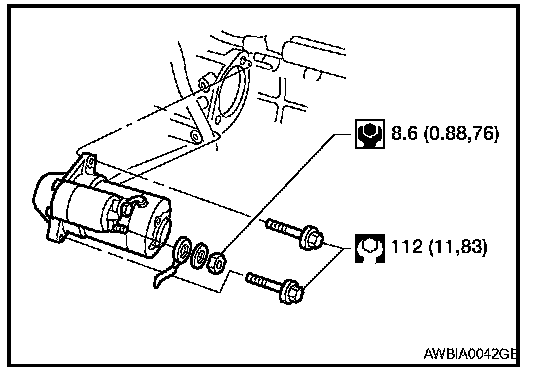

Removal and Installation
M/T MODELS
Removal
1. Disconnect the negative battery terminal.
2. Disconnect the starter motor harness connectors.
3. Remove the two starter motor bolts, using power tools.
4. Remove the starter motor.
Installation
Installation is in the reverse order of removal.
