Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Testing and Inspection

Refrigerant Pressure Sensor / Switch: Testing and Inspection

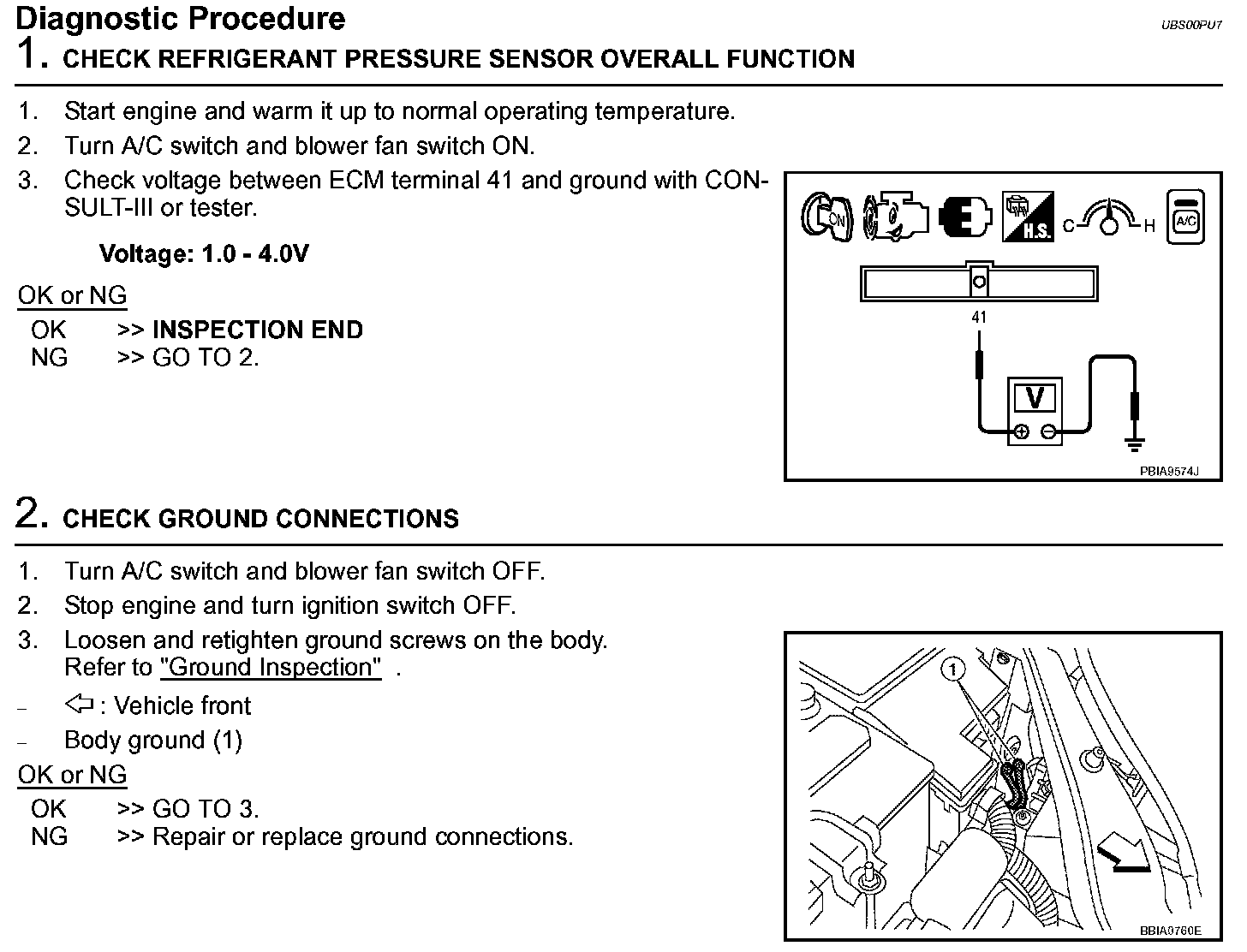

Step 1-2:



Step 3-6:

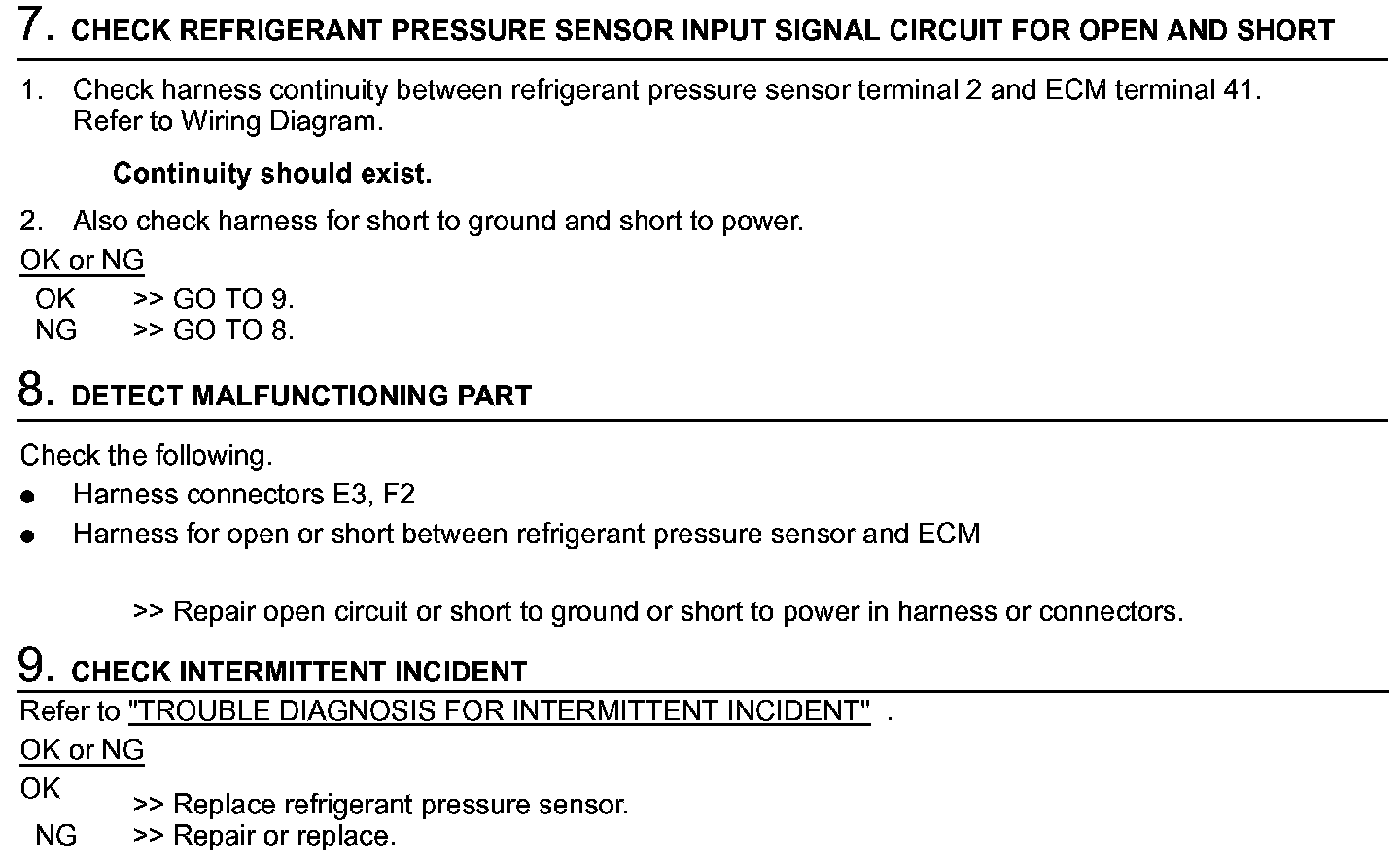

Step 7-9:
