Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2007
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Clutch, M/T
>>
Pressure Plate
Pressure Plate
Pressure Plate

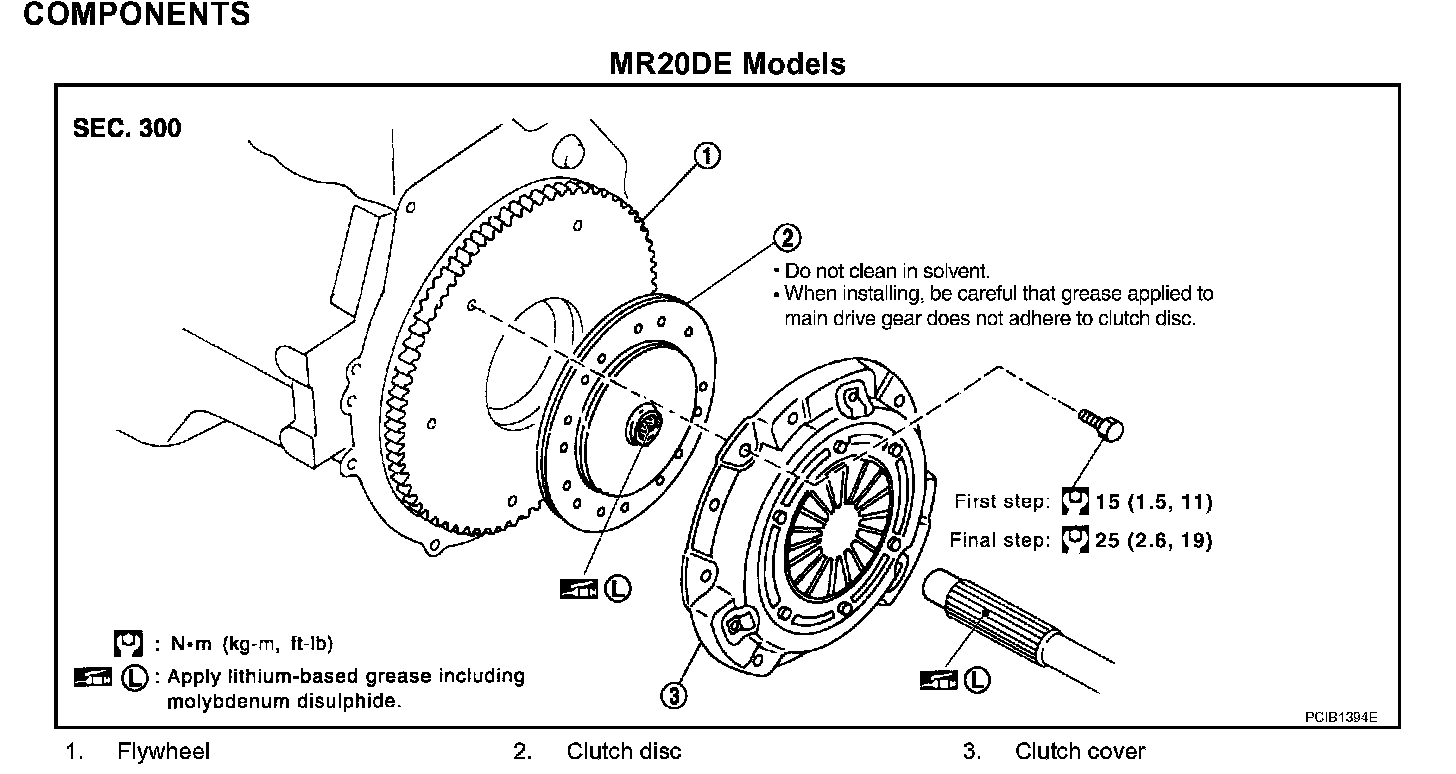

Exploded View CL-13 (Part 1):
Tighten clutch cover bolts evenly in two steps in the order shown.
