Continuously Variable Transmission Schematic
Continuously Variable Transmission Schematic

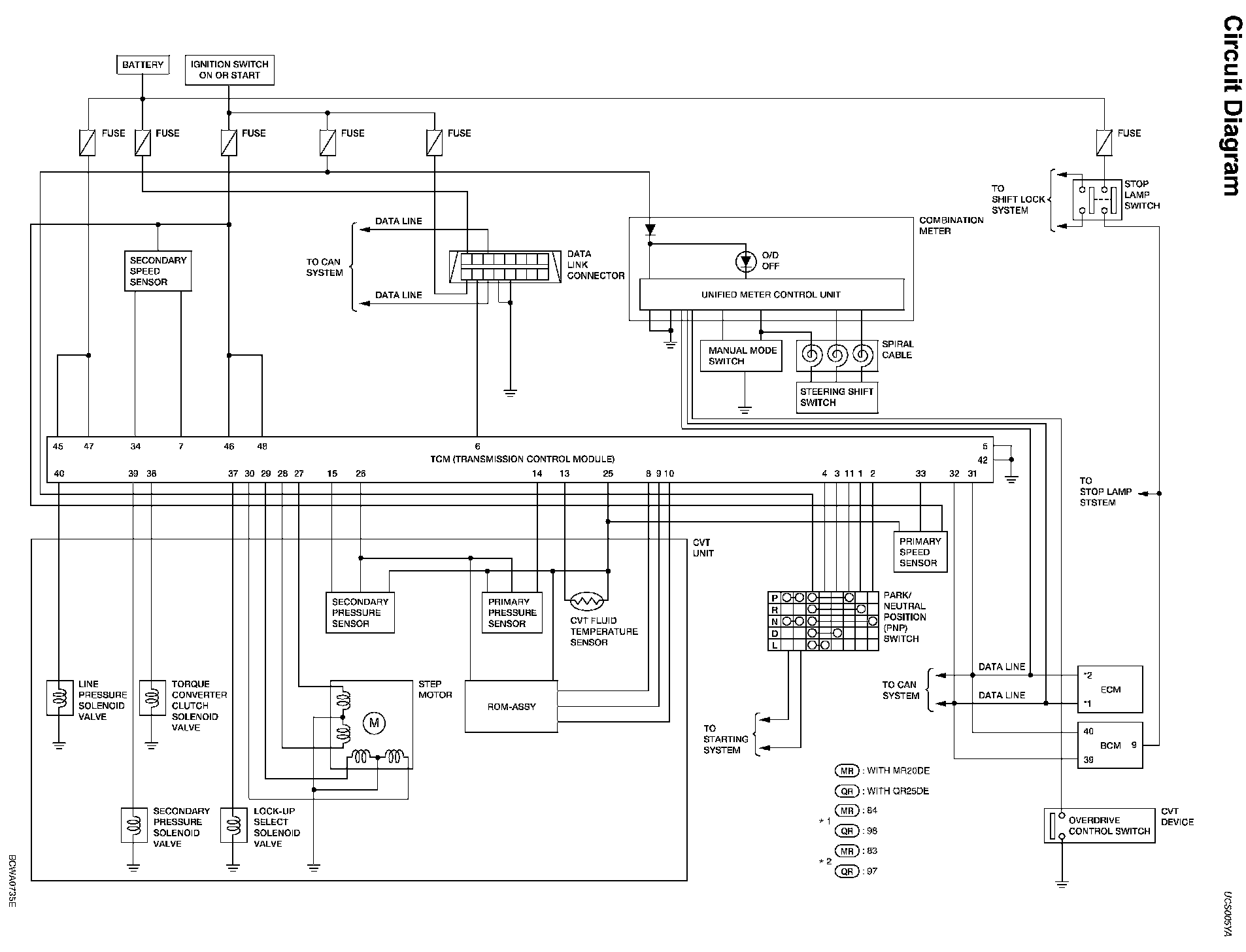

Continuously Variable Transmission Schematic:
