Blower Motor: Service and Repair

FRONT BLOWER MOTOR

Removal and Installation

REMOVAL
1. Remove the instrument panel.
2. Remove the BCM.

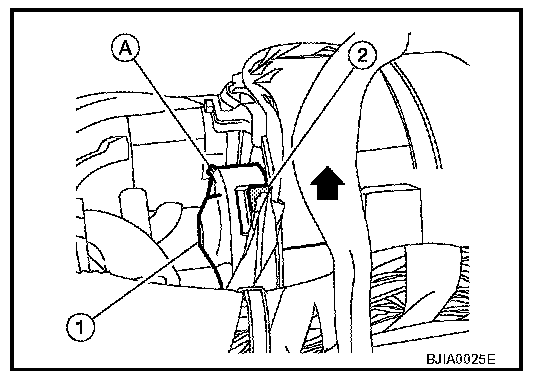

3. Disconnect the front blower motor connector (2).
4. Remove the one screw (A) from the front blower motor (1).
5. Turn the front blower motor (1) counterclockwise and remove it.
- <=: Front

INSTALLATION
Installation is in the reverse order of removal.
