Drive Belt: Testing and Inspection

Checking Drive Belts





WARNING: Inspect the drive belt only when the engine is stopped.

NOTE: On vehicles not equipped with A/C, there is an idler pulley in the position for the drive belt routing.

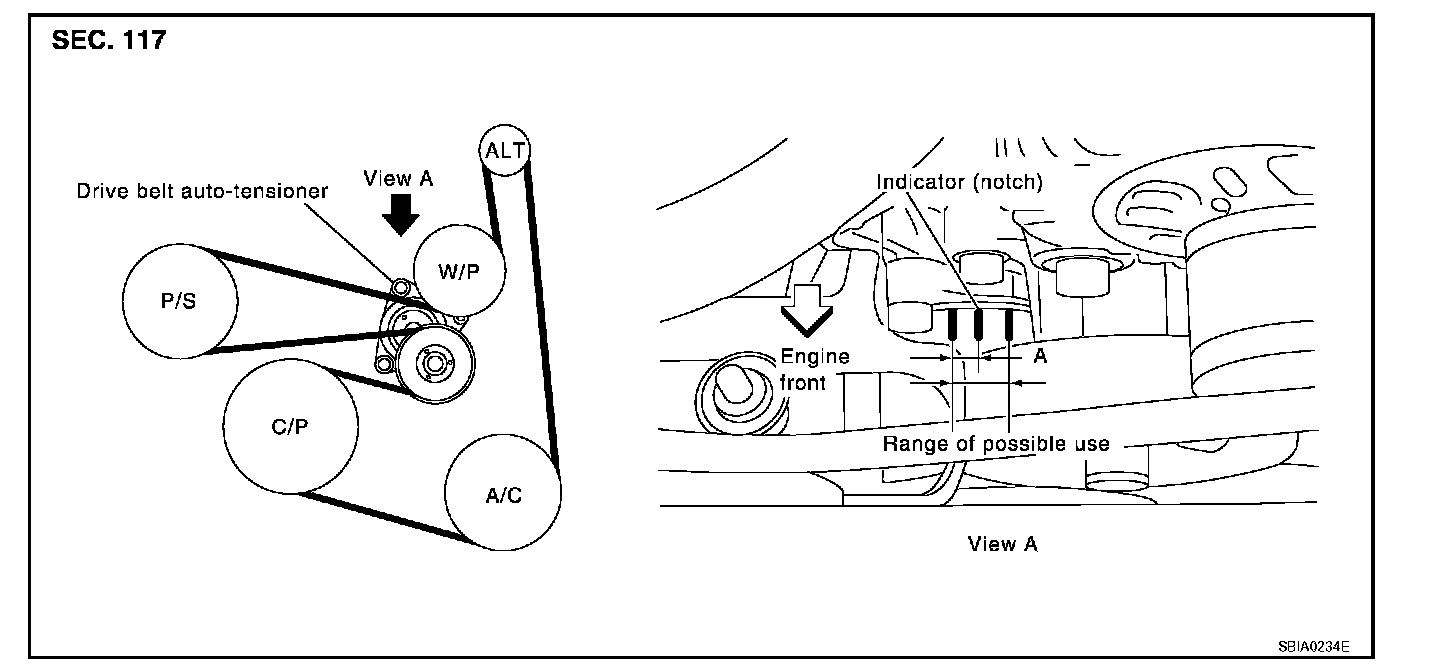

^ Make sure that the stamp mark of drive belt auto-tensioner is within the usable range.

NOTE:
^ Check the drive belt auto-tensioner indicator (notch) when the engine is cold.
^ When the new drive belt is installed, the range should be "A" as shown.
^ Visually check entire belt for wear, damage or cracks.
^ If the indicator is out of allowable use range or belt is damaged, replace the belt.
