RS6F52A

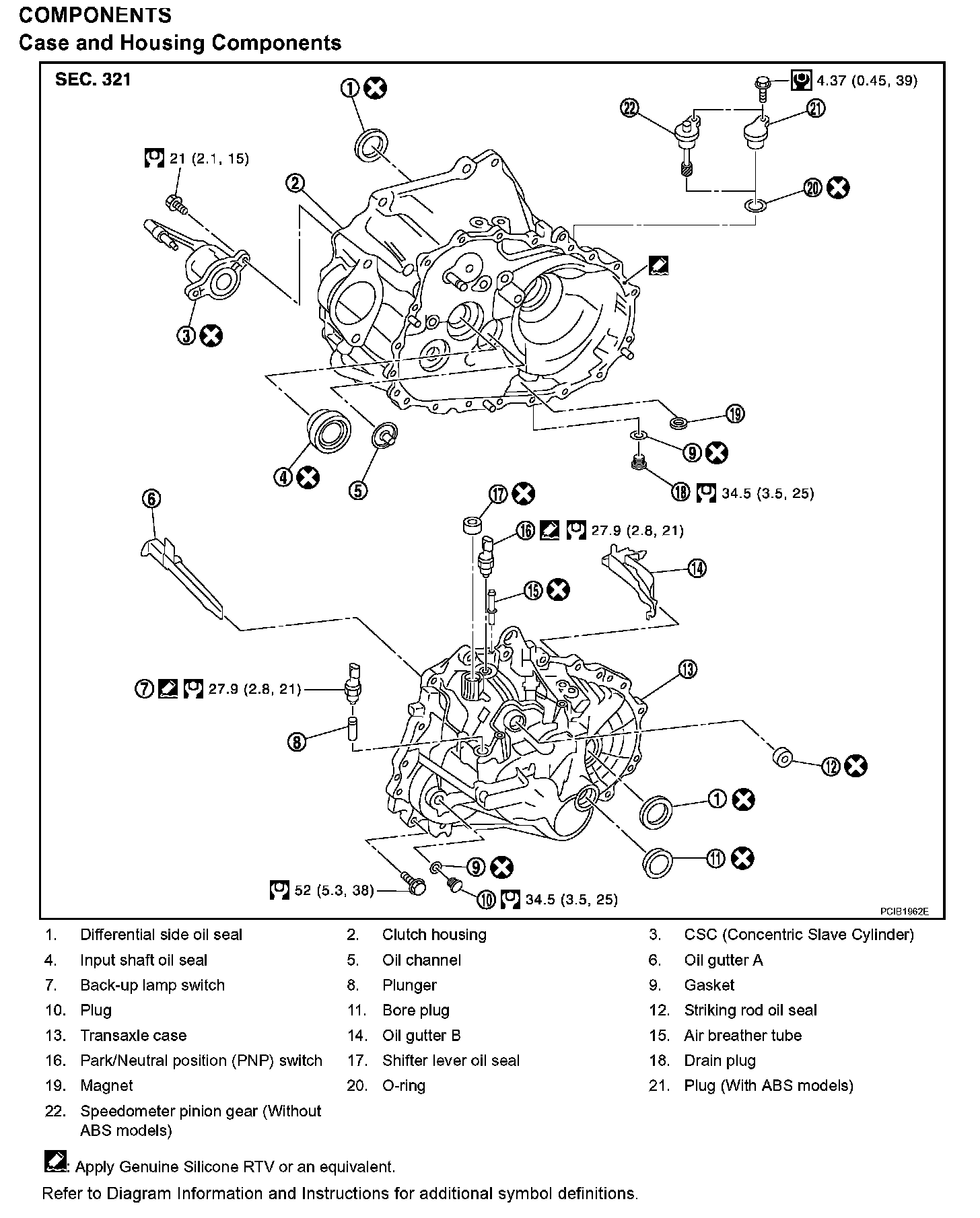

Exploded View MT-68:

Checking M/T Oil
OIL LEAKAGE AND OIL LEVEL
1. Make sure that oil is not leaking from transaxle or around it.





2. Remove plug (with ABS models) (1) or speedometer pinion gear (without ABS models) (1).

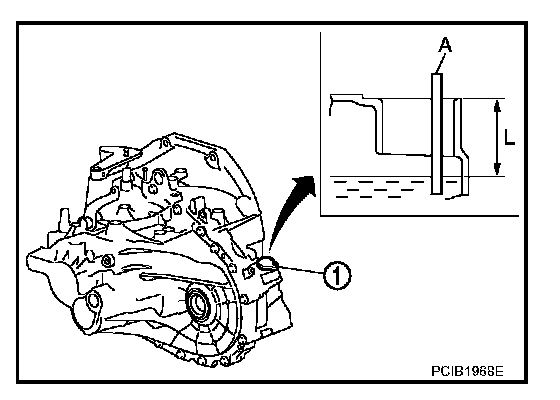

3. Measure oil level using a suitable gauge (A) as shown in the figure, and then check if it is within the specifications.
Oil level "L": Refer to Specifications. Specifications

CAUTION: Never start engine while checking oil level.

4. Set a O-ring on plug (with ABS models) (1) or speedometer pinion gear (without ABS models) (1) and then install it to transaxle. Tighten mounting bolt to the specified torque. Refer to Exploded View MT-68.

CAUTION: Never reuse O-ring.
