Audio Unit Branch Line Circuit
Audio Unit Branch Line Circuit

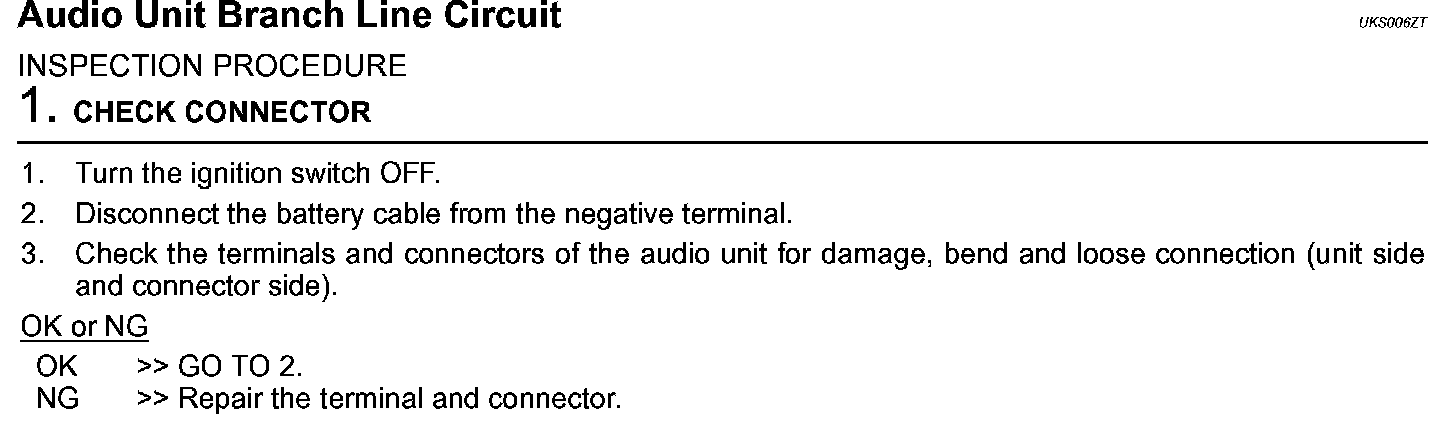

Audio Unit Branch Line Circuit (Step 1):
Audio Unit Branch Line Circuit (Steps 2 - 3):
