Tightening Torques & Sequences

Rod Bearing Cap





Tighten the connecting rod bolt as follows:
Apply engine oil to the threads and seats of the connecting rod bolts.

CAUTION: Check tightening angle. Do not make judgment by visual inspection.

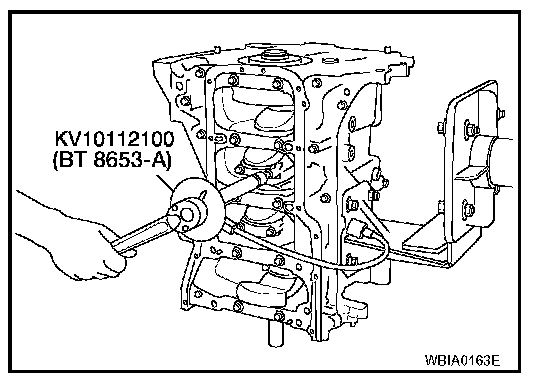

Tool number: KV10112100 (BT-8653-A)
Step 1 27.4 Nm (2.8 kg-m, 20 ft-lb)
Step 2 0 Nm
Step 3 19.6 Nm (2.0 kg-m, 14 ft-lb)
Stage 2 Rotate bolts 90° degrees
Check the connecting rod side clearance.
After tightening the bolts, make sure that the crankshaft rotates smoothly.

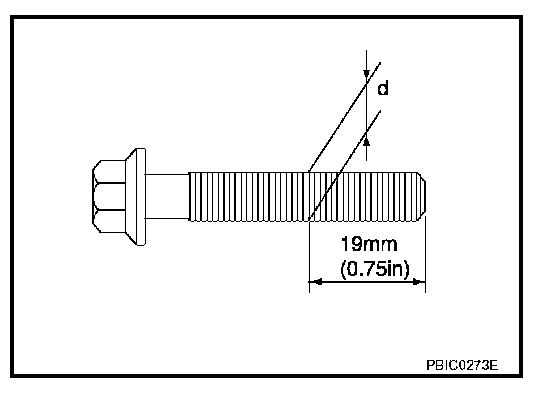

OUTER DIAMETER OF CONNECTING ROD BOLT
^ Measure outer diameter (d) at position as shown.





^ When "d" exceeds the limit (when it becomes thinner), replace the bolt with a new one.
Limit 7.75 mm (0.3051 in) or less
